Details

• Platform
• Model Name

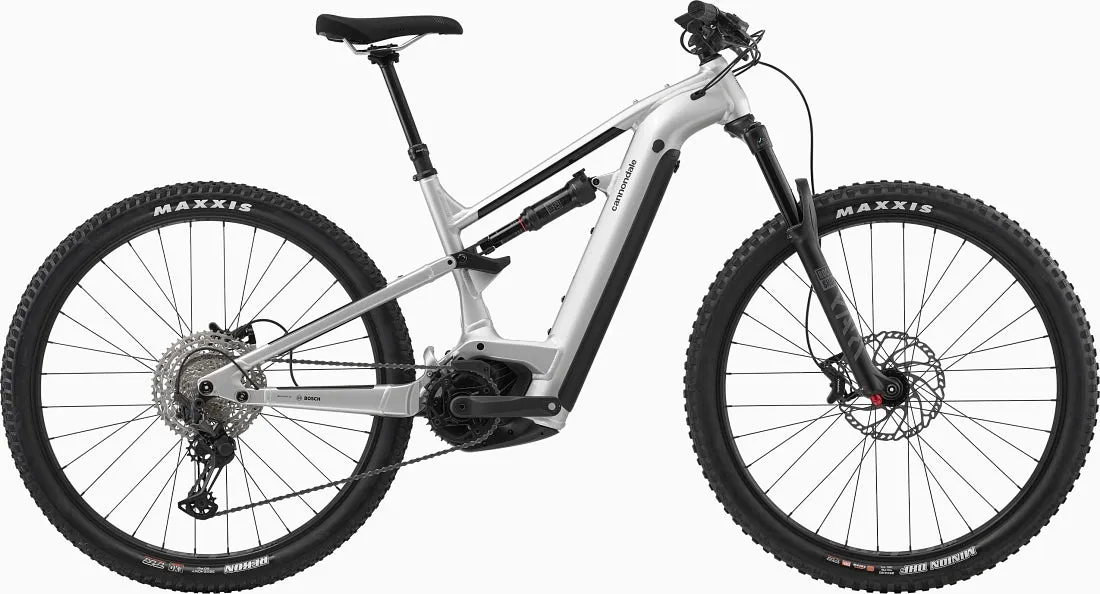

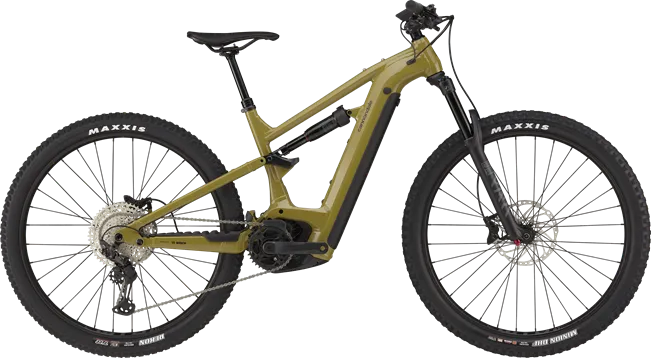

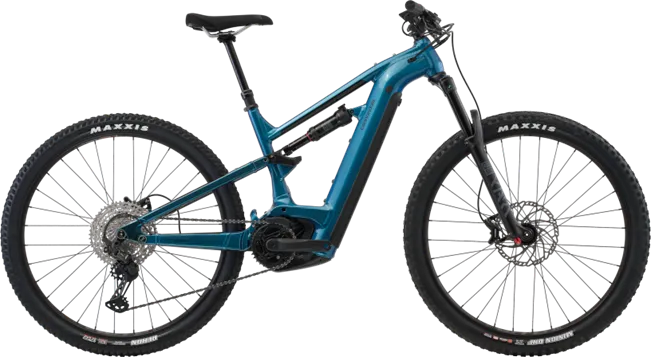

  Moterra Neo 3
• Model Code

  C65372U

Frameset

• Frame

  Moterra Neo, SmartForm C1 Alloy, 150mm travel, Proportional Response Tuned Suspension, removable downtube battery, injection molded skid plate, 55mm chainline, internal cable routing, 148x12mm thru-axle, UDH hanger, post mount brake, tapered headtube, 18mm two-bolt kickstand mount, integrated rear rack mounts
• Fork

  RockShox Yari RC, 150mm, 15x110mm Boost, 44mm offset
• Headset

  Integrated Sealed Bearing, 1-1/8" - 1.5
• Rear Shock

  RockShox Deluxe Select, DebonAir, 2-Pos mode adjust, adjustable rebound

E-System

• Drive Unit

  Bosch Performance Line CX 250W
• Battery

  Bosch PowerTube, 750Wh
• Charger

  Bosch 4A
• Display

  Bosch Kiox 300 w/ LED remote
• Certifications

  UL 2849

Drivetrain

• Rear Derailleur

  Shimano XT
• Shifters

  Shimano Deore M6100, 12-speed
• Chain

  Shimano Deore 6100, 12-speed
• Crank

  FSA Bosch E-bike w/ 55mm chainline, 160mm, 34T
• Rear Cogs

  Shimano Deore M6100, 10-51, 12-speed

Brakes

• Brakes

  Shimano MT420 4-piston hydraulic disc, 203/203mm rotors
• Brake Levers

  Shimano MT401 hydraulic disc

Wheels

• Rims

  WTB ST i30 TCS, 32h, tubeless ready
• Spokes

  Stainless Steel, 14g
• Tire Size

  2.6
• Wheel Size

  29
• Hubs

  (F) Formula 15x110mm thru-axle / (R) Shimano MT410, 12x148mm thru-axle
• Tires

  (F) Maxxis Minion DHF, 29x2.6", EXO, tubeless ready / (R) Maxxis Rekon, 29x2.6" (27.5x2.6" - size Small), EXO, tubeless ready
• Front Tire

  Maxxis Minion DHF, 29x2.6", EXO, tubeless ready
• Rear Tire

  Maxxis Rekon, 29x2.6" (27.5x2.6" - size Small), EXO, tubeless ready

Components

• Handlebar

  Cannondale 3 Riser, 6061 Alloy, 15mm rise, 8° sweep, 4° rise, 780mm
• Stem

  Cannondale 3, 6061 Alloy, 31.8, 0°
• Grips

  Fabric FunGuy
• Saddle

  Fabric Scoop Shallow Sport, steel rails
• Seatpost

  TranzX dropper, internal routing, 31.6, 130mm (S), 150mm (M-XL)

Extra

• Extra 1

  Pre-installed light cable
