• 32 Channel hybrid monitor – supports wireless transmitters and up to 4 wired transmitters
• Radio options: 900 MHz radio or 2.4 GHz Standard
• 12 to 35 VDC operating voltage with optional AC power supply
• Operating temperature range of -40ºC to 70ºC
• 5 Push-button interface (ADD, MENU, SUB, SCAN/ HOLD and RESET/ESC)
• Two graphical LCD’s with LED backlights
• Programmable alarms
  • 4 configurable alarm set-points:
  • 4 front panel ALARM LED indicators (Red)
  • 4 dry-contact relays (4 amps maximum per relay)
• Status LEDs for power and fault: multi-color status light; Amber fault LED for indicating system faults
• Output options: Wet contact fault DC fault terminal, relay 4 can optionally be configured as a fault relay, RS-485 Modbus
• NEMA-4X standard fiberglass enclosure with clear window; optional stainless-steel enclosure with clear window

Description

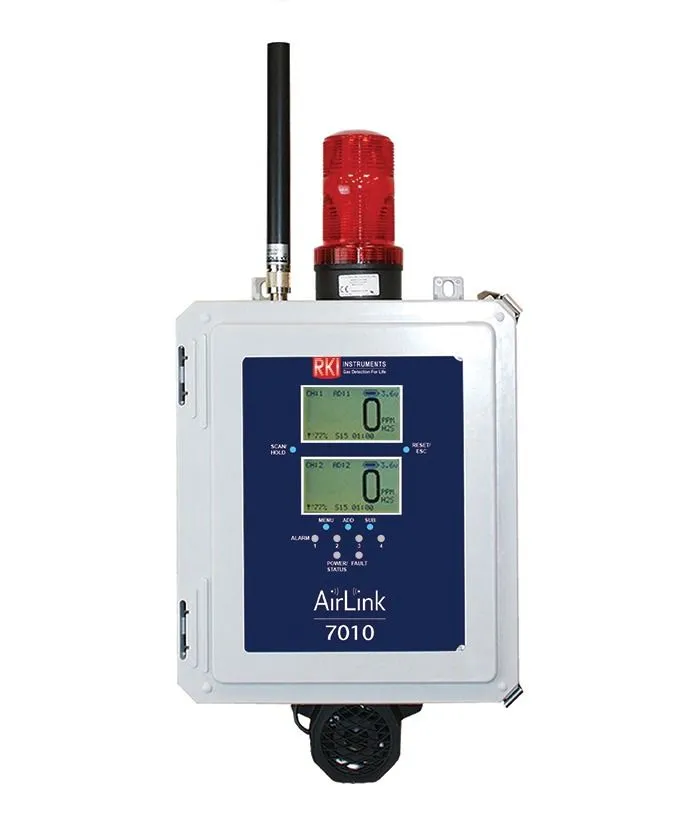

The RKI Instruments AirLink 7010 Controller is a wireless controller that supports up to 32 wireless sensor transmitter inputs. Four of the channels can be setup for 4-20 mA wired input, making this hybrid controller compatible with both wireless and wired sensors. Durable, flexible and customizable the AirLink 7010 controller has a 5 button interface, 2 LCD display with LED backlighting, and a NEMA-4X weather proof enclosure.

The AirLink 7010 Controller represents the latest leading edge wireless technology in fixed gas detection today.
