Need Help Setting up the XR-3 Satellite Meter?

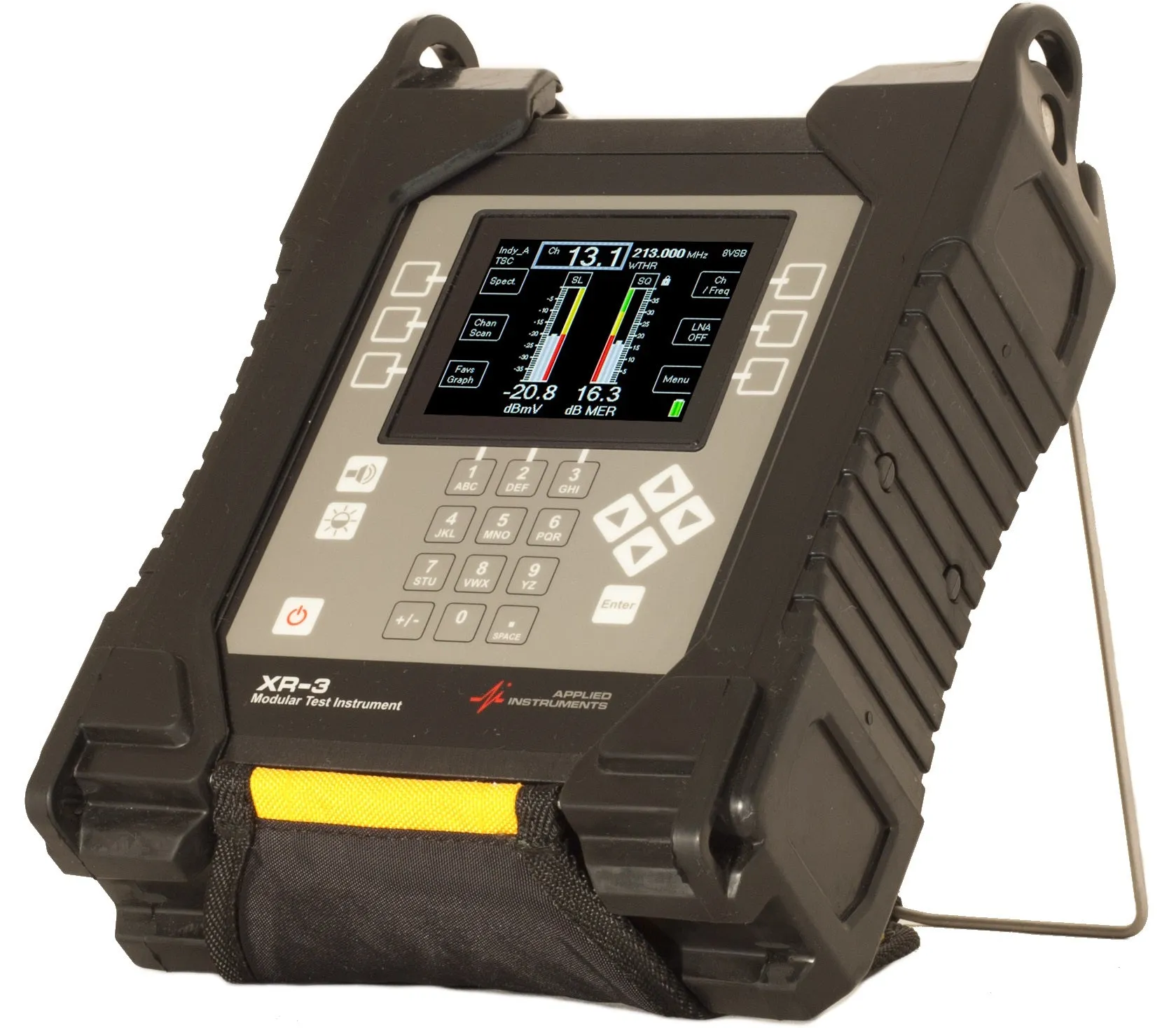

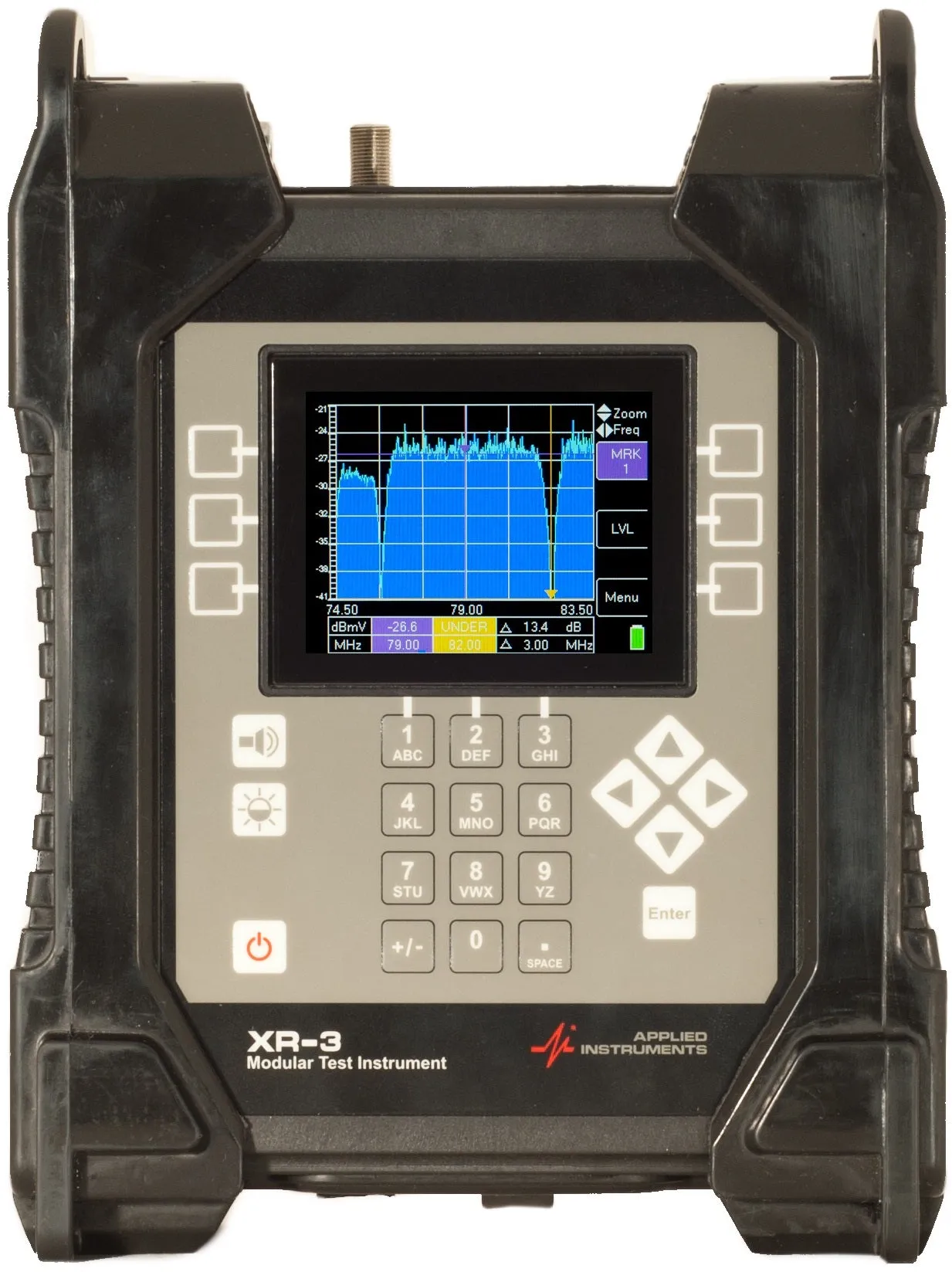

Model XR-3W ™ Modular Test Instrument base unit with built in Wi-Fi and Includes App (modules sold separately)
From satellite dish alignment, to UHF off-air antenna pointing, to cable TV MER measurements, the XR-3 is the signal level meter (satellite meter) for you!
The XR-3 is the most capable satellite meter offered by Applied Instruments. It’s more durable than the popular Super Buddy meter, and has added features and performance.

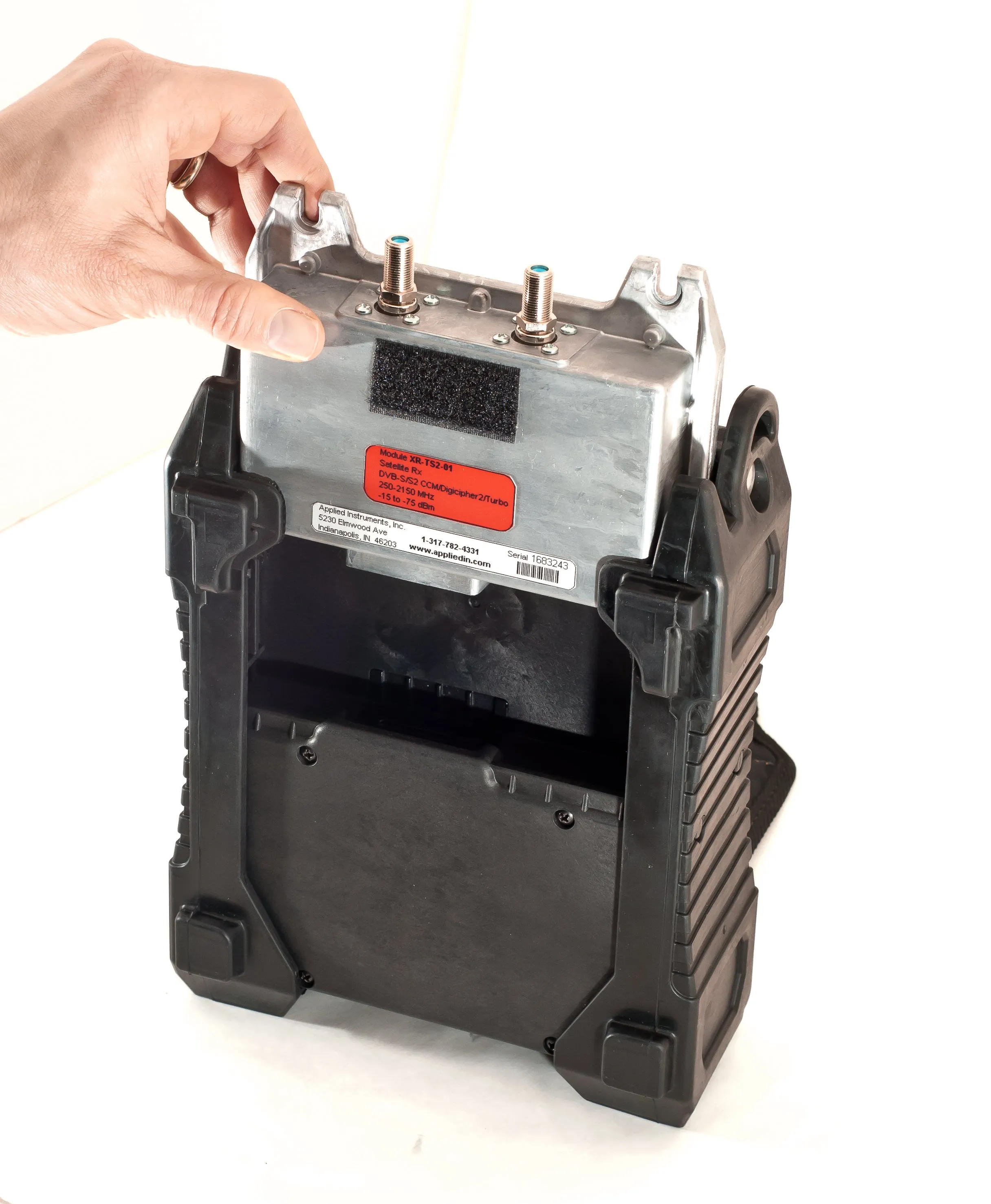

The XR-3’s modular design with field swappable modules provides wide versatility to fit different measurement applications, including DBS satellite, VSAT satellite, VHF/UHF off-air, and CATV (QAM and analog).
The XR-3 Satellite Meter, Antenna, CATV Installer Test Set is great for installing and troubleshooting DISH SmartBox, Blonder Tongue, and other SMATV headend systems often used in hotels, multi-dwelling units, and institutional facilities. Base unit also available without WiFi. Select the preferred configuration above.
Lead time for this product is 3-5 business days after receipt of order.
[] * * []
| Module Part Number | Description | Application |
| Turbo-S2
| Satellite Meter Module -North American DBS / Broadcast TVRO 250-2150 MHz - | DISH, DIRECTV, Bell TV, Shaw Direct, and more |
| VSAT-S2X | Satellite Meter Module - VSAT, Broadcast TVRO, International DTH 950-2150 MHz - [] [Operation Manual] | iDirect, Hughes Ku, and more |
| Cable-Air
| Signal Meter Module - Cable & Off-Air (J.83B) / VHF / UHF 5-1000 MHz - [] | UHF Off-Air, CATV, SMATV, DISH Smartbox, Blonder Tongue headends |
