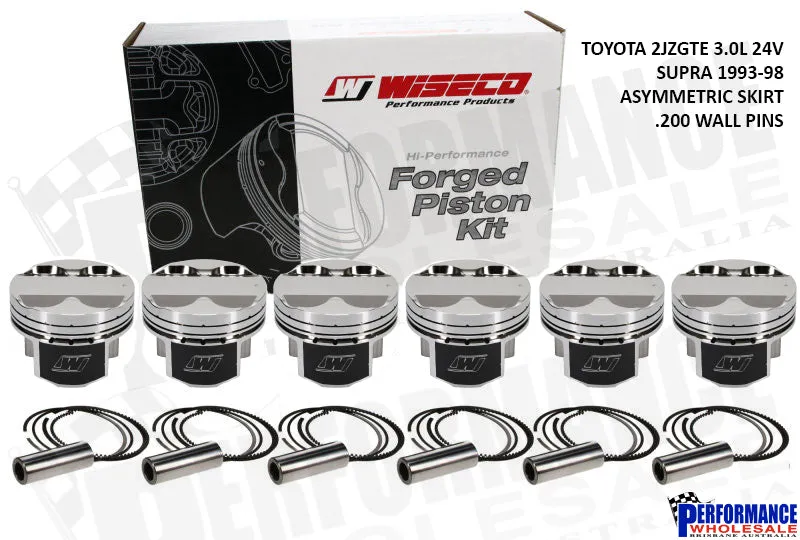

Wiseco Sport Compact Piston and Ring Kit Suit Toyota 2JZGTE 3.0L 24V, 86.5mm Bore

Wiseco Sport Compact Piston and Ring Kit Suit Toyota 2JZGTE 3.0L 24V, 86.5mm Bore

$ 45.07

$ 58.59

Save: $

Unavailable
Please select combo product attributes
The combo subtotal is $,SAVE$

Product Details

Wiseco Sport Compact Piston and Ring Kit Suit Toyota 2JZGTE 3.0L 24V, 86.5mm Bore

Features:

• Armor Plating is an abrasion resistant plating that raises the hardness of the aluminium, increases the durability of the ring grooves, prevents micro-welding of the piston rings, reduces carbon buildup and combats corrosion caused by detonation.

• ArmorGlide Skirt coating ~ helps reduce piston rock in the bore and increases power

• Lateral Gas Ports ~ Lateral gas ports are small slots that are machined into the top of the top ring land and permit combustion pressure to enter the ring land area and get behind the ring. Most commonly used in circle track applications, lateral gas ports permit the use of a thinner ring pack and less ring tension, which works to free up power. Gas ports are an efficient way to force the ring face against the cylinder wall.



Product detailed specification

Bore size

86.50mm / 3.405" (.5mm Oversize)

Stroke

86mm / 3.386" (standard)

Rod

142mm / 5.590" (standard)

Comp Height

34mm / 1.338"

Head cc's

45

Volume

-5.3cc

Gasket Thickness

1.42mm / .056"

Deck Clearance

.02mm / .001"

Block Height

219mm / 8.662"

Compression ratio (CR)

9.6:1

Pin Included

S796 22mm - .866" x 2.250" x 0.200"

Ringset (Included)

8650XX

Average Weight

360g

Application

Turbo and Nitrous

Make



Toyota 2JZGTE 3.0L 24V


Part # K677M865AP
