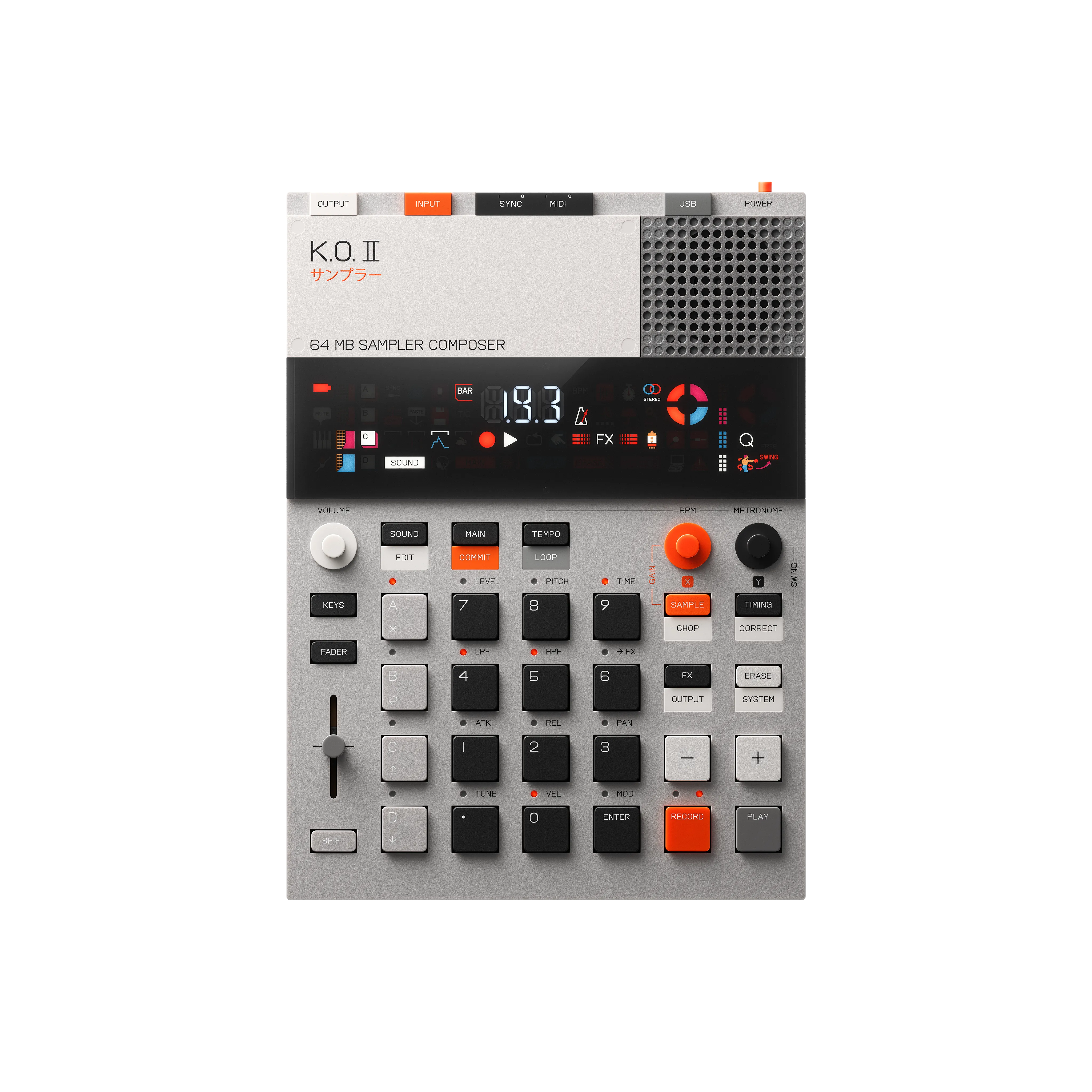

- EP–133 K.O. II is a powerful sampler, sequencer and composer. record sounds around you, sequence your samples and loops, tweak and automate filter, pitch and more, add stereo effects, compressor and next generation punch-in effects - go from idea to track faster than ever.
- built-in mic and speaker
- 6 stereo voices / 12 mono
- 64 MB memory, or 999 sample slots
- built-in effects
- pressure sensitive keys and multifunctional fader
- sampling frequency: 46 kHz / 16-bit
- 1x stereo in/out, sync in/out, midi in/out and usb-c
- powered by 4x AAA batteries, or via usb
- dimensions: 240 mm x 176 mm x 16 mm
- comes in a limited edition 10" collectors box
knock out features
- 9 projects each with 80,000 notes
- projects contain 4 groups, each with 99 patterns
- patterns have 12 tracks for samples and midi
- variable pattern length per group (1 to 99 bars)
- 12 mono / 6 stereo voice polyphony
- use groups to mix and match patterns on the fly
- record and automate all 12 fader assignments
- sequence in free time or quantized with swing
- assign any pad to one of 16 midi channels
- loop mode from OB–4 with length and slide
- 12 pressure and velocity sensitive pads
- instantaneous time correction and erase
- slice samples live or automatically
- stereo / mono sampling at 46.875 kHz / 16-bit
- punch-in 2.0™ effects (pressure sensitive)
- arrange quickly using the instant commit feature
- 32-bit float signal chain, 24-bit adc/dac
- sync io for ext. gear. 8th, 16th note or sync24
- 6 built-in send fx and a master compressor
- drag and drop samples using the sample tool
the sequencer engine of the K.O. II provides an intuitive, fast way of building up beats and variations using 4 groups x 12 patterns. like most daws, you can instantly swap patterns per group, experiment with different combos to find what beat and bass lines work together. the commit button helps you freeze a point in time and move on, adding a verse or a break. it all happens in real time while playing.

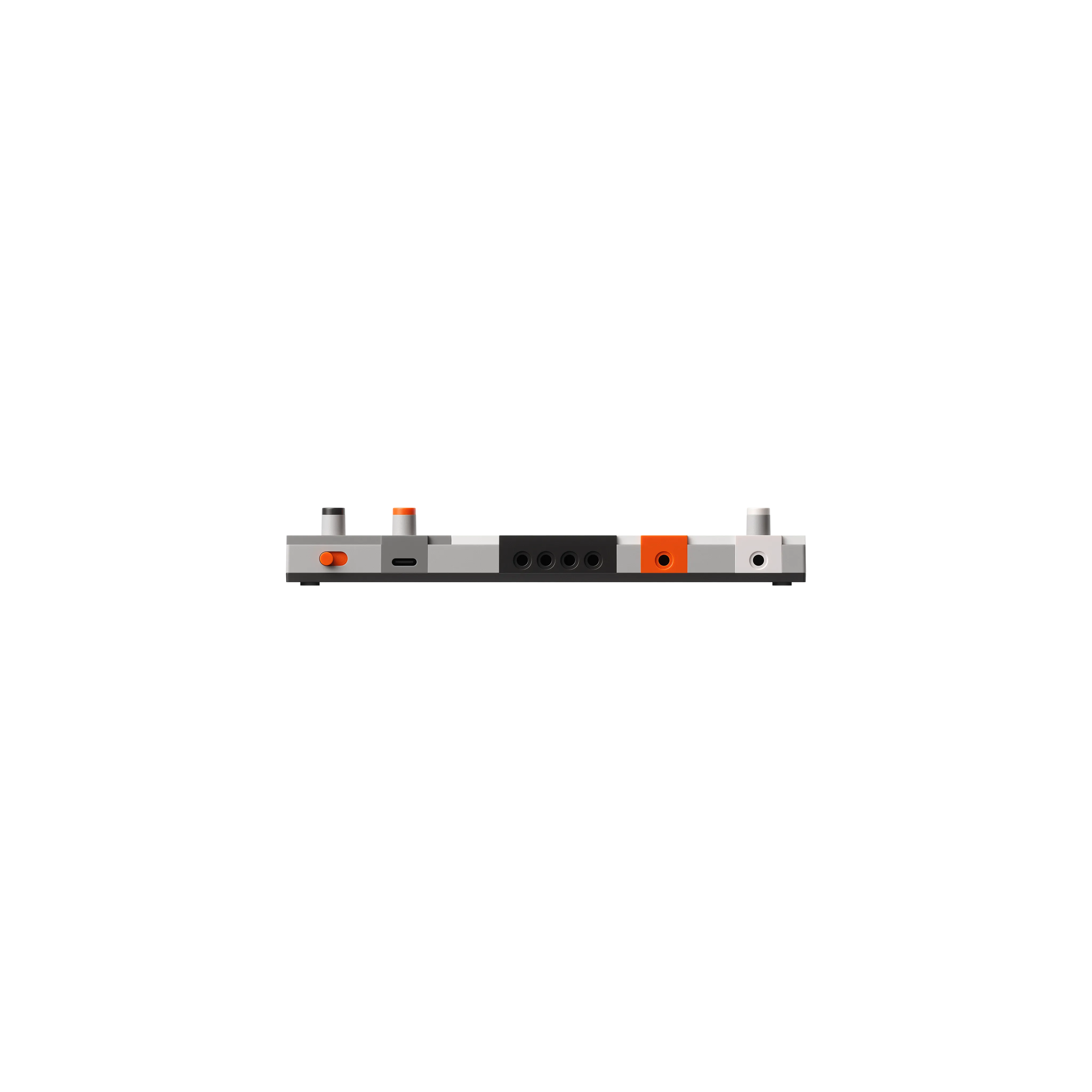

IO
- built-in mic and speaker
- usb–c
- midi output
- midi input
- sync output
- sync input
- audio input
- audio output
- 4x aaa batteries
one-two punch
vintage style keys with a modern touch, combining tactility with pressure sensitivity.
10" EP format
comes in a limited edition 10" collector's box
tech specs:
K.O.II highlights
- sampling frequency: 46 kHz / 16-bit
- internal signal chain: 32-bit
- 999 sample slots
- 64 MB memory
- preset samples
- high resolution sequencer
- built-in FX
- fader and pressure sensitive pads
- six stereo voices, twelve mono
- runs on (4) AAA batteries with the option to be powered via usb-c (batteries and usb-c cable not included).
dimensions and weight
- 240 mm x 176 mm x 16 mm
- 9.45" x 6.93" x 0.63" inches
- 620 g / 22 oz
stereo input
- 24 bit
- SNR: 96 dBA
- analog gain: 0 - 12 dB
- max level: 8 dBu, 2.0 Vrms
Stereo Headphone/Line Output
- 24 bit
- SNR: 98 dBA
- max level: 5 dBu, 1.4 Vrms
MIDI input and output
- trs type a, mma compliant
Sync input and output
- sync 8 ppm, 16 ppm, 24 ppqn
- start / stop
