Name: TC Helicon VOICETONE E1 Stompbox For Compelling Vocal Echo Effects
SKU: 148071

TC Helicon VOICETONE E1 Stompbox For Compelling Vocal Echo Effects

$ 66.02

$ 85.83

Save: $

Title:

DefaultTitle

Unavailable

Please select combo product attributes

The combo subtotal is $,SAVE$

KEY FEATURES

Single-button stompbox gives you a range of stage-ready vocal echo effects in vintage to modern flavors
Timed repeats of your vocal add interest at just the right moment
13 wicked delay styles, including classic slap echo
Tap tempo control to keep your echoes right on the beat

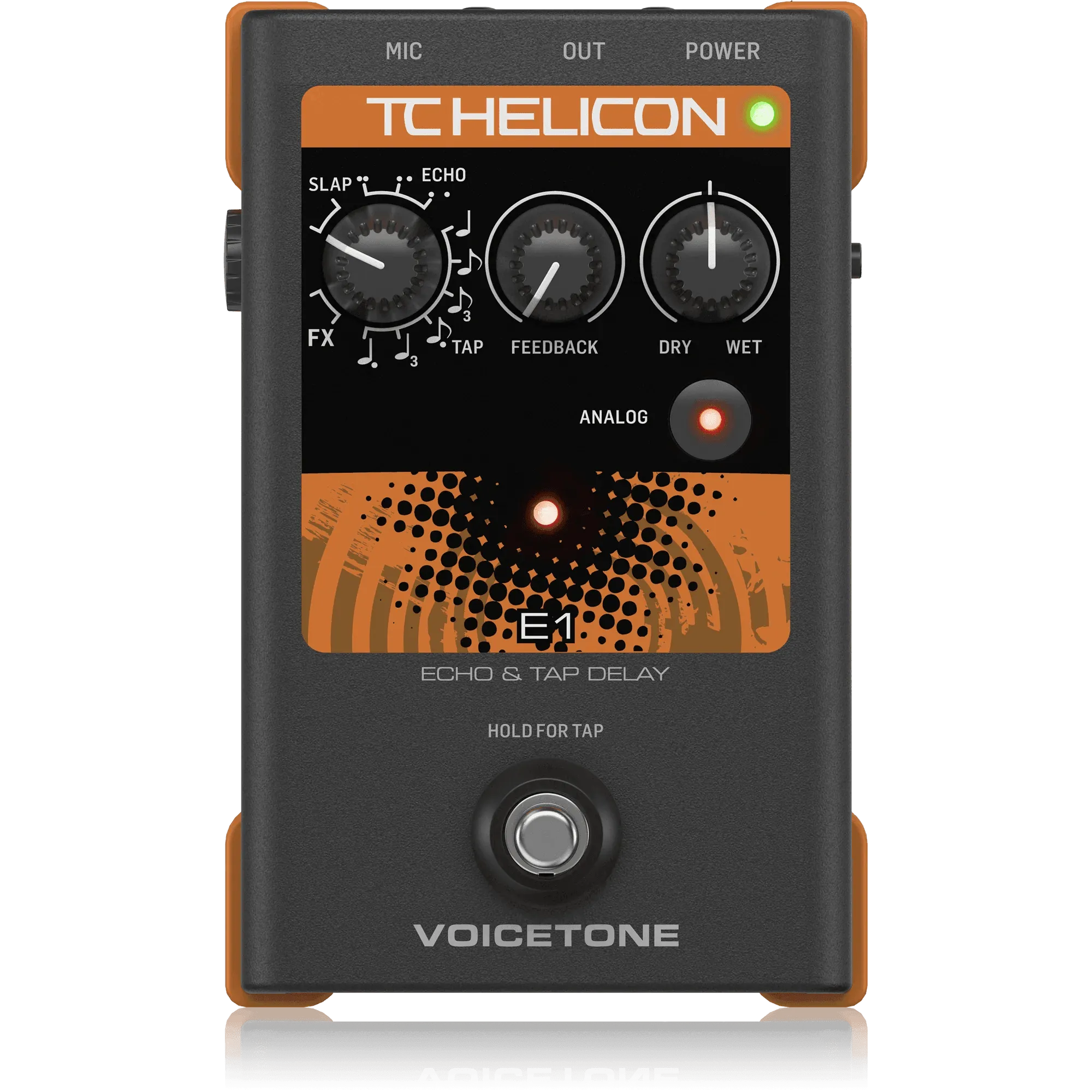

Simple 3-knob interface gets you up and running in seconds
High-quality, low-noise mic preamp for pristine vocals
On/off foot switch for quick performance control
Analog button for an optional filtered echo sound from the days of tape recording
Allows chaining to other VOICETONE SINGLES vocal processors or DITTO MIC LOOPER to expand creative possibilities
Compatible with remote Mic Control using the TC Helicon MP-75 microphone
Rugged, road-worthy construction for years of dependable use
Power supply included

DESCRIPTION

VOICETONE E1 offers singers the signature echo and slapback effects that evoke classic songs, while putting effects control at their feet. High quality, immersive echo effects for the stage are no longer just for guitarists.

SPECIFICATIONS

Design
Size	Height: 5.4 inches (140 mm) Width: 3.5 inches (90 mm) Depth: 2.3 inches (60 mm)
Weight	Weight: 0.92 lb. (0.42 kg)
Construction	Two part dies cast metal Rubberized base

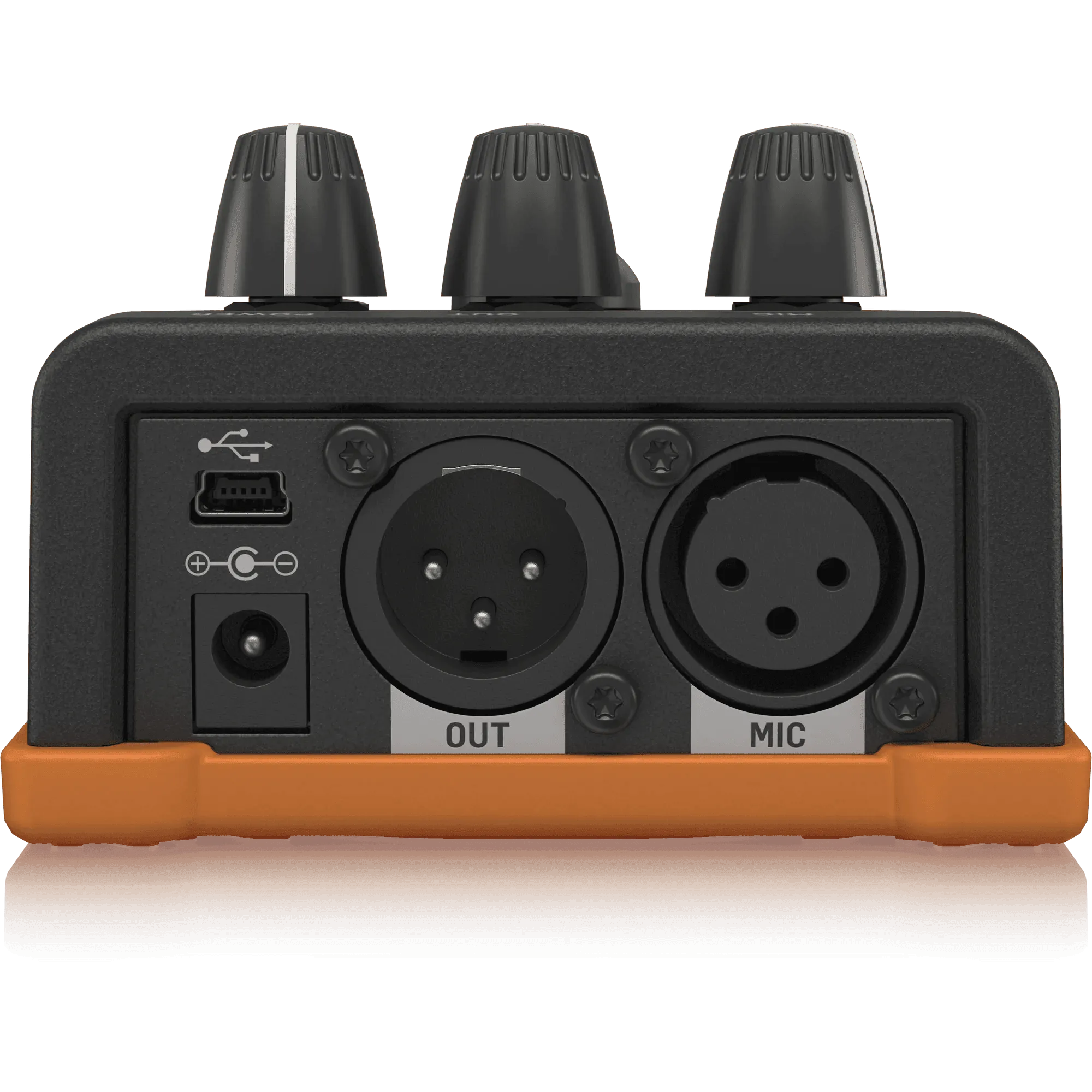

Connections
Analog Inputs	Connectors, balanced: Mic.: XLR Mic Input Level @ 0 dBFS: -42dBu to 1dBu EIN @ Max Mic Gain Rg = 150 Ohm: -126 dBu Mic input SNR: >104 dB Phantom Power: 24V (always on)
Analog Outputs	Output Impedance, Bal./Unbal.: 200/100 Ohm Output Full Scale: 1 dBu Dynamic Range: >104 dB, 20 Hz to 20 kHz Frequency Response: 0/-0.3 dB, 20 Hz to 20 kHz
Control	USB for firmware and control Mic Control using TC Helicon MP-75
Safety And Regulations
Power	Power Supply (Supplied): 12V / 400mA Power Consumption: 5.6W
Safety	EMC – Complies with EN 55103-1 and EN 55103-2 FCC part 15, Class B, CISPR 22, Class B Safety – certified to IEC 65, EN 60065, UL6500 and CSA IEC 65, EN 60065, UL6500 and CSA
Environment	Operating Temperature: 32°F to 122°F (0°C to 50°C) Storage Temperature: -22°F to 167°F (-30°C to 70°C) Humidity: Max. 90 % non-condensing
What's in the box?	Region specific power supply USB cable User guide
