Name: STRYMON Volante
SKU: 31994

SOUNDS FROM THE EXPANSE

Create instant retro-future atmosphere with evocative vintage delay tones. Activate your imagination with evolving ambient echoes and warm, organic feedback with just the right amount of grit. Sculpt your soundscape in real time as Volante becomes an extension and expansion of your musical instrument. Infuse your pedalboard with stunning vintage vibes that resonate and inspire.

DELAYS FOR DAYS

THREE MAGNETIC DELAY TYPES, SPRING REVERB, LOOPER, AND MORE.

Delivering truly exceptional sound quality and intuitive playability, Volante is designed to radically enhance the sonic expressiveness of your pedalboard. Featuring magnetic drum echo, tape echo, and reel-to-reel studio echo, Volante is a stereo multi-head delay that also offers a looper and vintage spring reverb, with powerful sound-sculpting controls for limitless sonic possibilities.

VINTAGE VIBE

To capture the nuance and complexity of classic tape and drum echo machines, every last magnetic delay system attribute was relentlessly studied and faithfully recreated. From the sought-after natural saturation and soft clipping of magnetic media when driven hard, to hands-on real-time controls for mechanics, wear, head-spacing, and low cut, Volante instantly adds tons of vibe to your sound.

MULTI-HEAD MAVEN

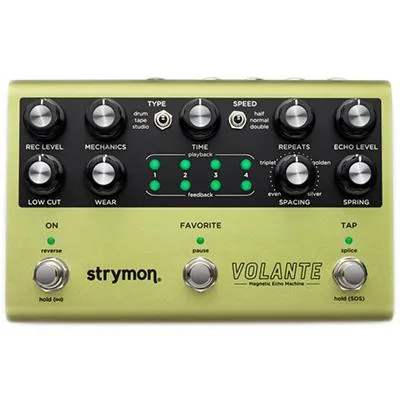

Volante provides the full experience and sonic attributes of iconic multi-head echo machines. At the center of Volante’s control surface are four delay playback heads with individual feedback, panning, and level controls—delivering unlimited creative options right at your fingertips. All of this range allows the creation of complex rhythmic patterns as well as reverb-like atmospheric textures.

SPECIFICATIONS

SOUND DESIGN

Multi-head magnetic media delay machine providing four playback heads with individual feedback, panning, and level controls
Processor-intense algorithms deliver meticulously nuanced recreations of vintage magnetic echo systems (drum echo, tape echo, studio reel-to-reel echo)
Dedicated control over echo machine tone and media: Low Cut, Mechanics, Wear
Input Record Level for clean reproduction to warm, fat saturation
Independent Spring Reverb
Sound on Sound looping mode with reverse, pause, splice, and infinite repeat functions

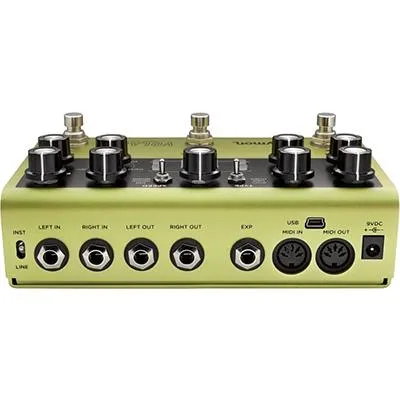

INS, OUTS, AND SWITCHES

High impedance stereo input
Stereo output
Input Level switch allows for both instrument and line level signals
On, Favorite, and Tap Tempo footswitches
Expression pedal input allows the connection of an expression pedal, external tap pedal, 1/4″ to MIDI cable, or .
Full featured MIDI in/out supporting MIDI CCs, program changes, and more
USB jack for controlling MIDI via computer

AUDIO QUALITY

Analog dry path for a zero latency dry signal that is never converted to digital
Premium JFET analog front end
Ultra low noise, high performance 24-bit 96kHz A/D and D/A converters provide uncompromising audio quality
Super high performance SHARC DSP
32-bit floating point processing
20Hz to 20kHz frequency response
Audio Input Impedance: 1M Ohm
Audio Output Impedance: 100 Ohm

True Bypass (electromechanical relay switching) or selectable transparent Analog Buffered Bypass
Strong and lightweight anodized olive green aluminium chassis
9V DC power supply included
Power requirements: maximum 9 volts DC center-negative, with a minimum of 300mA of current
Dimensions: 7" x 4.5″ x 1.75″ (177.3mm x 114.3mm x 44.5mm)
Designed and built in the USA
