Name: Specialized 2023 Turbo Vado 3.0
SKU: 195267

Specialized 2023 Turbo Vado 3.0

Vado is the vehicle for everything from daily commutes to fast workouts to longer-than-planned adventures—an electric bike for life. The smoothest-riding e-Bike experience yet, Vado is designed to boldly take on the ever-changing landscape you’ll encounter as a daily rider, carry whatever you need it to, and keep you riding more often.

Redesigned geometry puts you in the best position for everything from workouts to commutes while comfortably keeping your eyes on busy roads. We took learnings from the speed a road rider seeks and the maneuverability a mountain bike rider needs. The rider's position on the Vado instills confidence and, at the same time, optimizes the rider's ability to efficiently power from A to B.

Turbo Full Power 2.0E motor and 530Wh battery offer an unparalleled riding experience, providing a smooth, seamless, and shockingly quiet amplification of your efforts, up to 28 mph. The integrated controller responds to your pedal inputs resulting in intuitive amplification of your efforts with an incredibly natural feel.

MasterMind and Mission Control - The MasterMind display reveals all relevant info about your ride, allows real-time tuning of support levels, and enables over-the-air updates so that your bike gets better over time. MasterMind seamlessly integrates with the Mission Control app for range optimization tools, advanced tuning, on-ride diagnostics, and more.

Proven Smooth Efficiency - We designed a custom testing mechanism to analyze bumps at even the smallest frequency to increase comfort and vision. That precision, paired with higher volume tires, and an 80 mm suspension fork, will flatten roads before your eyes.

Turbo System Lock - Use the Mission Control app to disable your bike’s motor and activate the motion sensor alarm. Once locked, the motor cannot be enabled again except by the owner.

Fully Integrated Removable and Lockable Downtube Battery - Easy to charge, easy to secure.

Equipped with DRYTECH Fenders, LED front and rear lights, and 27kg capacity rear HD Rack. The rear rack is compatible with child bike seats, and the bike is also rated to pull a thru-axle trailer.

Specifications

Specialized 2023 Turbo Vado 3.0

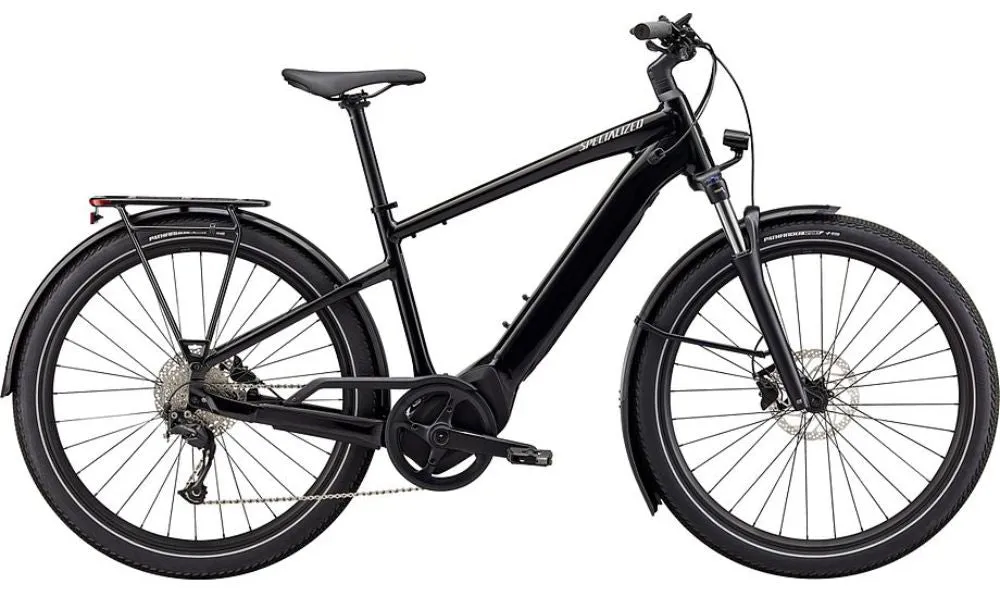

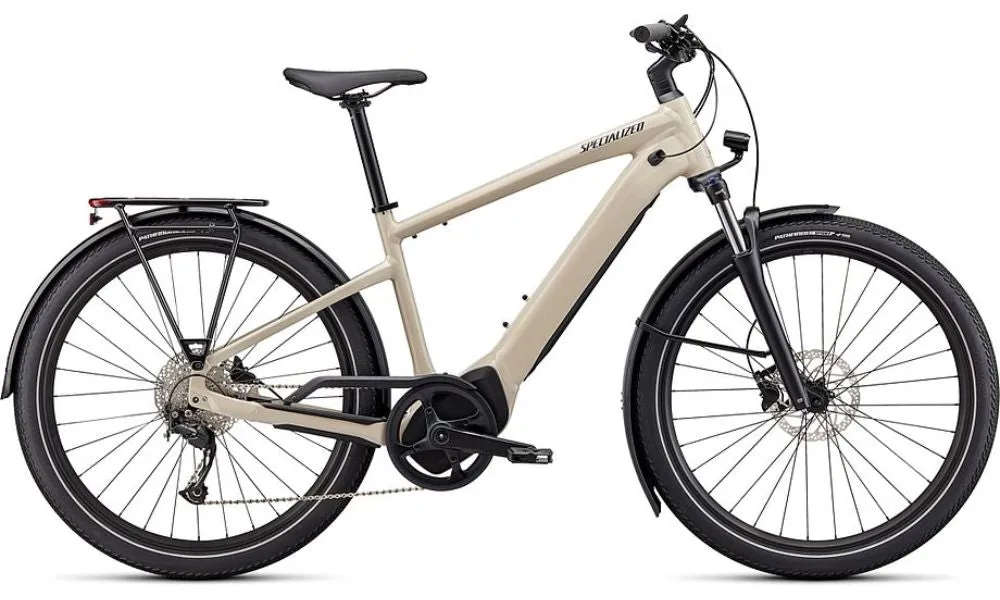

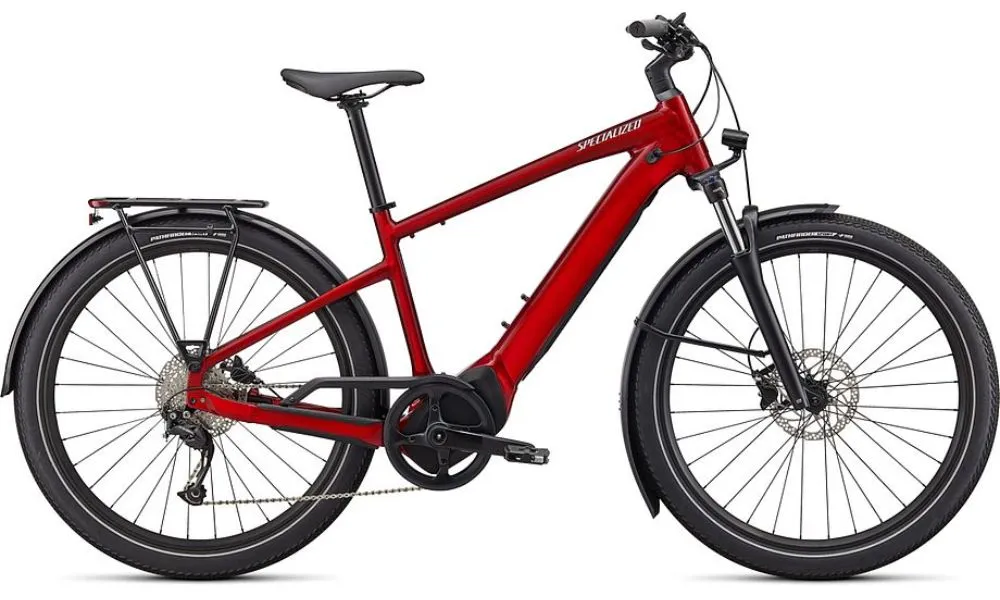

Colour: Cast Black/Silver Reflective, Red Tint/Silver Reflective and White Mountains/Black Reflective
Frame: E5 Aluminum, bottom bracket motor mount, fully integrated &lockable downtube battery, internal cable routing, lock and front rack mount
Fork: SR Suntour MobieA32, 80mm travel, lockout, fender-mounts, integrated light mount
Shock: NA

Drivetrain

Drive Unit: Specialized 2.0E, 50Nm torque, custom tuned motor, 250W nominal
Battery: Specialized U2-530, alloy casing, state of charge display, 530Wh
Crankset: Custom alloy forged crankarms
Pedals:
Chain: KMC e9T, 9-speed w/ Missing Link™
Bottom Bracket: NA
Rear Derailleur: Shimano Alivio, SGS, 9-speed
Front Derailleur: NA
Derailleur Shifter: Shimano Alivio, 9-speed w/ Optical Gear Display
Freewheel/Cassette: Shimano CS-HG400, 9-speed, 11-36t

Wheels

Tyres: [F] and [R] Pathfinder Sport Reflect, 650Bx2.3
Wheels/Rims: 650b disc, double-wall alloy, pinned, 32h
Hubs: [F] Shimano MT400, Centerlock, 15x100mm, 32h [R] Shimano MT400-B, Centerlock, 12x148 Boost, 32h

Braking System

Brakes: [F] and [R] Shimano BR-MT200, hydraulic disc, 180mm Centerlock

Other

Handlebar: Specialized, alloy, 15-degree backsweep, 46mm rise, 31.8mm
Stem: Specialized Flowset, 3D-forged alloy, 20-degree rise, 31.8mm clamp
Saddle: Rivo Sport, steel rails, 155mm
Seat Post: Specialized, 6061 alloy, 2-bolt clamp, 0mm setback, 30.9mm

Extras

Kickstand: Specialized kickstand, 40mm mount
Carrier: Specialized rack, MIK HD inteface, built-in pannier mounts, 27kg max load
Lights: [F] Lezyne EBIKE MINI STVZO E65, 210 Lumen, 12V [R] Spanninga Commuter Glow XE, 12V
Fenders: Specialized DRYTECH fenders, 65mm width, stainless steel fenderstays
Chaincase: Custom Chaincover
Charger: Custom charger, 42V4A w/ Rosenberger plug, 100-240V
UI/Remote: MasterMind TCD, w/handlebar remote, built-in anti-theft feature, Bluetooth® connectivity, customizable display pages

Siznig Guide

Specialized 2023 Turbo Vado 3.0

	S	M	L	XL
BB Drop	70	70	70	70
BB Height	285	285	285	285
Bike Standover Height	735	771	771	805
Chainstay Length	470	470	470	470
Crank Length	170mm	170mm	170mm	170mm
Fork Length (full)	480	480	480	480
Fork Rake/Offset	44	44	44	44
Front Center	699	724	750	777
Handlebar Width	680mm	680mm	680mm	680mm
Headtube Angle	68	68	68	68
Headtube Length	135	150	165	190
Reach	423	444	464	481
Saddle Width	155mm	155mm	155mm	155mm
Seat Tube Angle (Virtual)	75.5	75	74.5	74
Seat Tube Length	400	450	460	500
Seatpost Length	300mm	400mm	400mm	400mm
Stack	625	639	652	676
Stem Length	60mm	60mm	75mm	75mm
Toptube Length (horizontal)	585	615	645	675
Trail	96	96	96	96
Wheelbase	1160	1186	1212	1239
