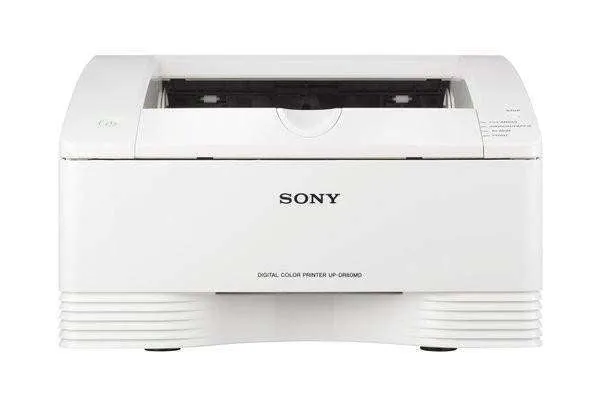

The UP-DR80MD is precisely designed to have a medical color printing function. In addition, this full page medical grade digital printer allows for a superior image with high quality and accurate color reproduction.

Main Features

Produces full page images on a letter-size media in approximately 72 seconds
Simple to operate
Full page digital medical grade dye-sublimation color printer
The self laminating roll media is specifically design to protect each print and is resistant to light, fingerprints, water, and heat,
Connects directly to endoscope or ultrasound systems via USB 2.0
High quality images with accurate color reproduction

Self-Laminating Roll Media – Utilizes UPC-R80MD and UPC-R81MD color print media which offers unique protective lamination for durable curl-free prints with a smooth, glossy finish.
Compact Size and Stylish Design – At just 12.5” W x 8.1” H x 16.8” D, the UP-DR80MD fits easily on endoscopic and ultrasound medical carts as well as onto confined spaces. Its uniquely cosmetic design enhances any imaging system hardware.
Easy to Operate – Front operation, front loading roll media and simplified color adjustments make media loading and operation very simple and straight forward.
Outstanding Image Quality – A combination of Sony dye sublimation technology, 301 dpi thermal head and 8-bit color depth enable the UP-DR80MD to deliver premium, photo-realistic prints.
USB 2.0 Connection – For fast and reliable performance and easy integration with digital systems.
High Speed Printing – A full page image on a letter-size media takes approximately seconds (does not include initialization time)

Input Current: 3.4 to 1.4 A
Safety Regulations: Safety UL60601-1, UL60950-1; CSA C22.2 No.601.1, CSA C22.2 No. 60950-1
Resolution: 301 DPI
Operating Temperature: 41˚F to 95˚F (5˚C to 35˚C)
Printing Time: Letter Size: approx. 72 seconds; A4 Size: approx. 76 seconds
US/Canada: EMC: FCC: 47CFR Part 25 Subpart B Class A Digital Device; IC: ICES-003 Class A
Storage and Transport Temperature: -4˚F to 140˚F (-20˚C to 60˚C)
Print Method: Dye Sublimation Thermal Printing
Operating Humidity: 20% to 80% (no condensation allowed)
Print Size: Letter Size: 8.25 x 10.625 inches (208mm x 269mm); A4 Size: 8 x 11.25 inches (202mm x 287mm)
Weight: Approx. 25.3 lbs (11.5 kg)
Paper Tray Capacity: 50 sheet roll
Gradations: 8 bits (256 levels) processing each for yellow, magenta and cyan
Dimensions: Approx. 12 ½ (W) x 8 1/8 (H) x 16 ¾ (D) inches; Approx. 317(W) x 807(H) x 425(D) mm
Effective Print Pixels: Letter Size: UPC-R81MD – 3192 x 2464 dots; A4 Size: UPC-R80MD – 3400 x 2392 dots
Interface: Hi-Speed USB (USB 2.0)
Storage and Transport Humidity: 20% to 80% (no condensation allowed)
Power Requirements: AC 100 to 240 V, 50/60 Hz
