PRODUCT DESCRIPTION

Shock Absorber RacingBros Bazooka 4.0 Front

INFORMATION

• l 210 mm
• Material: Aluminium CNC
• Color: Body: black
• Compression stroke: 24 settings High/​Low
• Speed spring pre-load: continuously adjustable
• Rebound adjustment: 18 settings
• With fluid reservoir
• RACE chassis - first-class
• For race use only. Not admitted in the area of the German StVZO!
• Shock Absorber RacingBros Bazooka 4.0 Front

The special damper adjustment pump  facilitates exact regulation of the units internal air-pressure, which is even more precise when combined with the 'Zero loss' adapter .

For race use only. Not admitted in the area of the German StVZO!

Back in 2006 the 'RacingBros' company was founded, initially producing and supplying hydro-pneumatic shock absorber systems for high-end mountain bikes. They have since extended their range of products to include freshly conceived conventionally-sprung shock absorbers for motorbikes and scooters. This experience led to them adapting their existing 'Air Spring' technology to also suit motorised two-wheelers. The 'Bazooka' shock absorbers are the result.

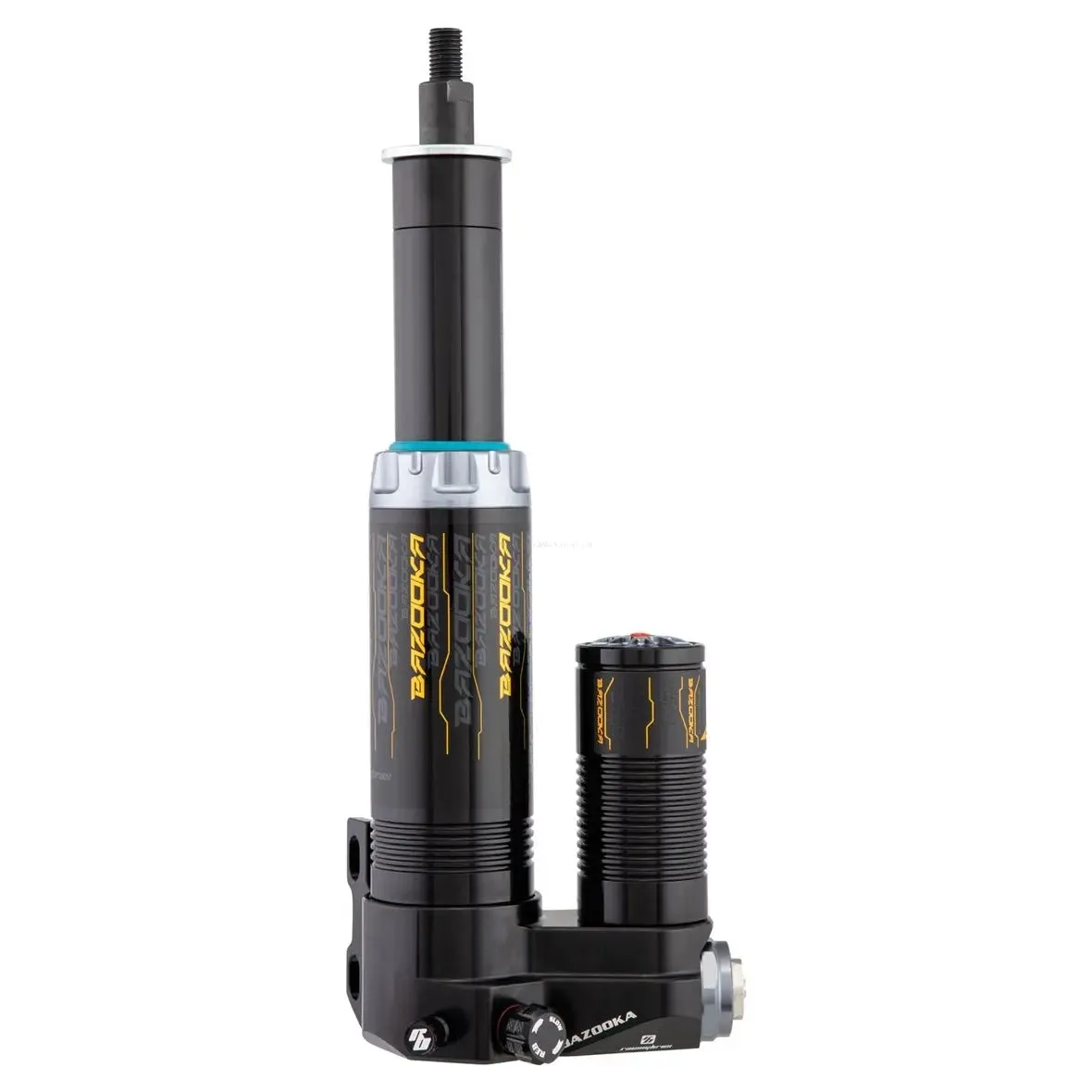

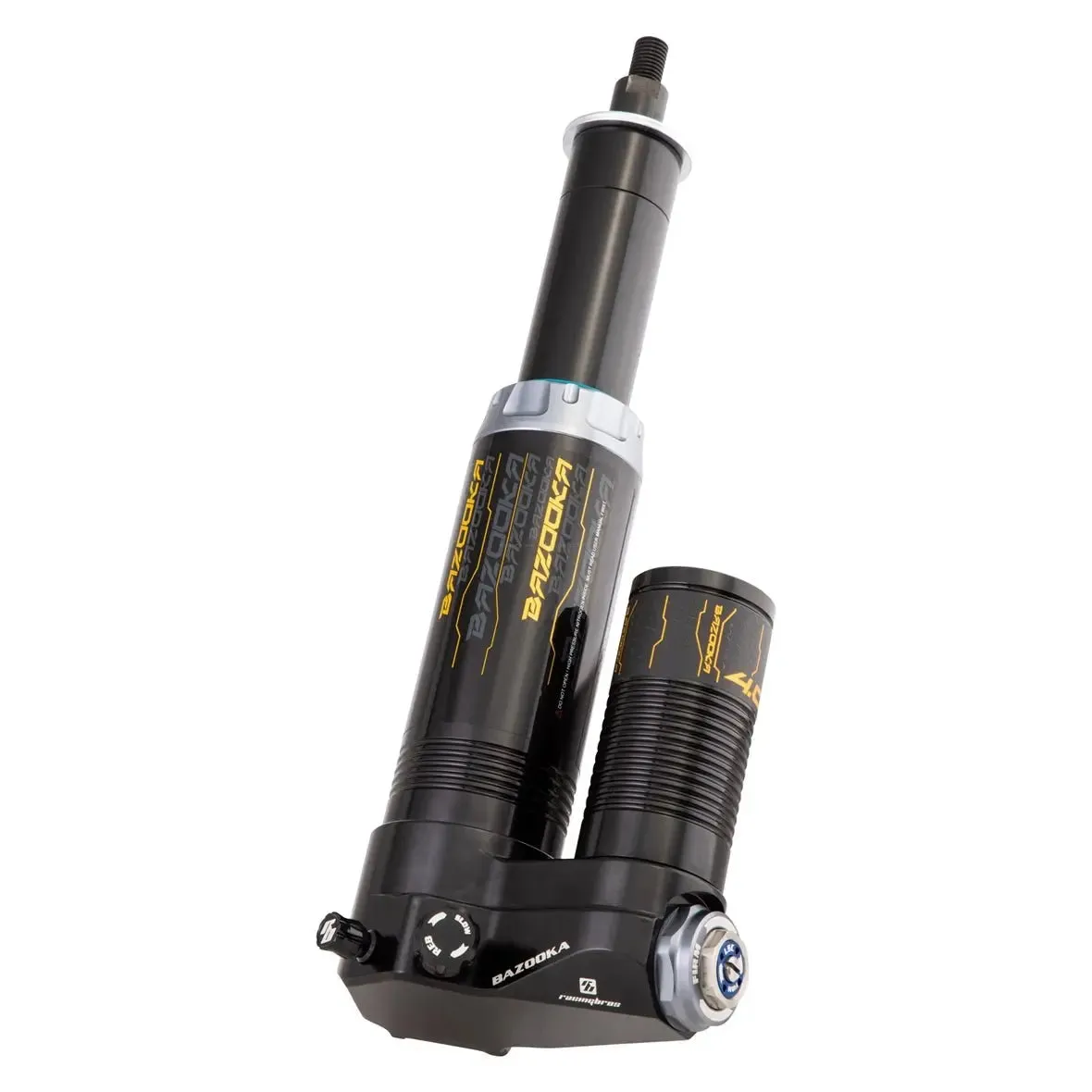

At first glance it is obvious why these chunky suspension units earned their title, with a 32mm diameter damper rod coupled to a 47mm diameter damper body. These extreme dimensions also provide a noticeably stiffer operation and make them more immune to twisting during use. The lower overall weight provides less unsprung mass in the suspension assembly. They have a relatively unobtrusive appearance compared to most aftermarket shock absorber systems and save 60% in total weight when replacing the original items. This huge reduction is mostly due to the lack of a coil spring in their construction. The pre-load has a continuous adjustment, similar to some coil spring types, only here a separately available, dedicated pump is available to govern the amount of air pressure within the damper body. Due to the hard-anodised surface finishing of the AL6061-T6 grade aluminium alloy used in their construction the friction is reduced and they are extremely tough.

Bazooka 1.0

• pre-load continuous adjustment
• rebound 18-stage

Bazooka 2.0

• pre-load continuous adjustment
• rebound 18-stage
• with subtank

Bazooka 3.0

• pre-load continuous adjustment
• rebound 18-stage
• with subtank
• compression 24-stage

Bazooka 4.0

• pre-load continuous adjustment
• rebound 18-stage
• with subtank
• compression 24-stage high/low

FITMENT

Shock Absorber RacingBros Bazooka 4.0 Front
