Durable case and integral stand suitable for the toughest workshop conditions.

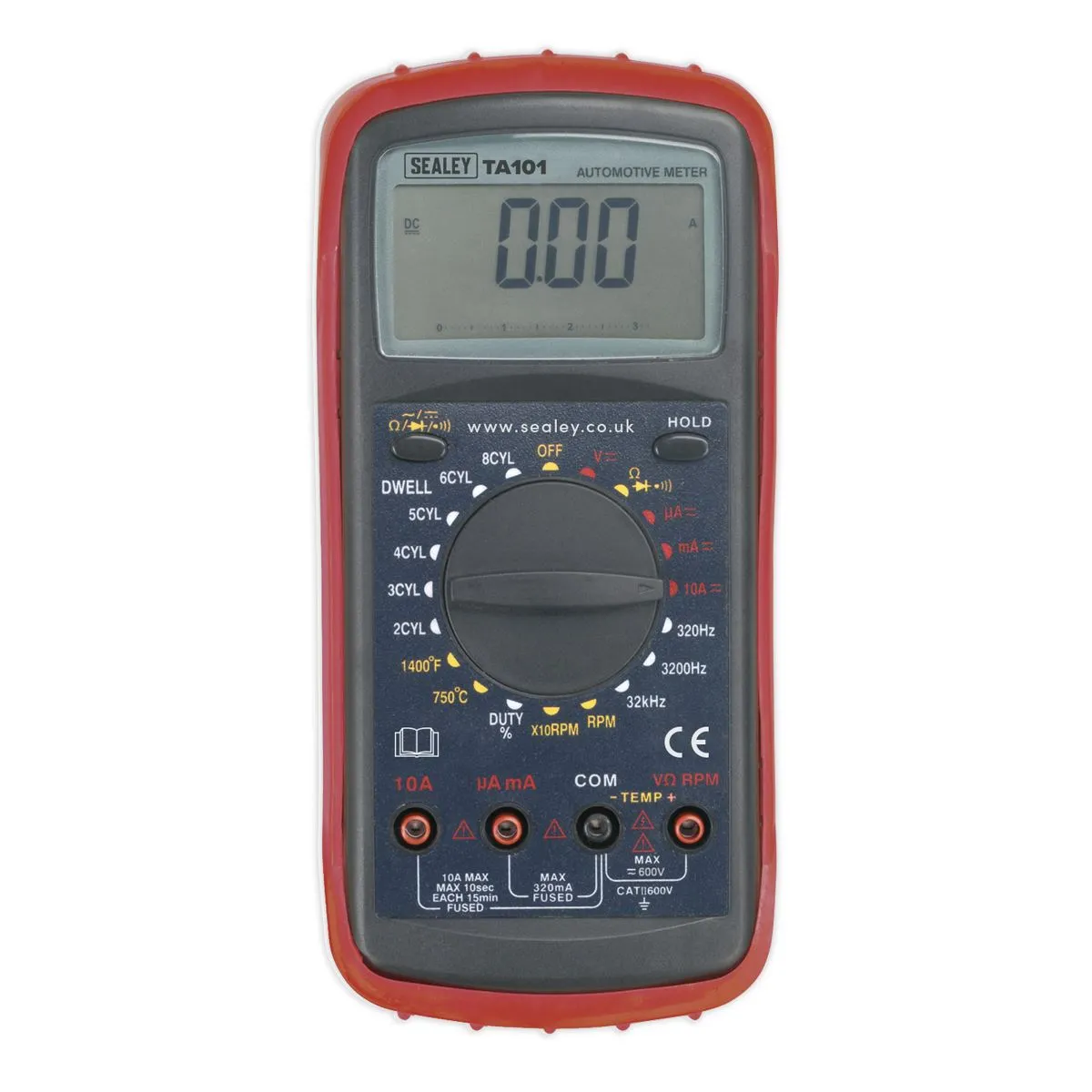

Large, high-contrast LCD display with 18mm high digital read-out and analogue bar graph.

Includes auto-ranging, data-hold, auto-polarity, auto-power-off and low battery display functions.

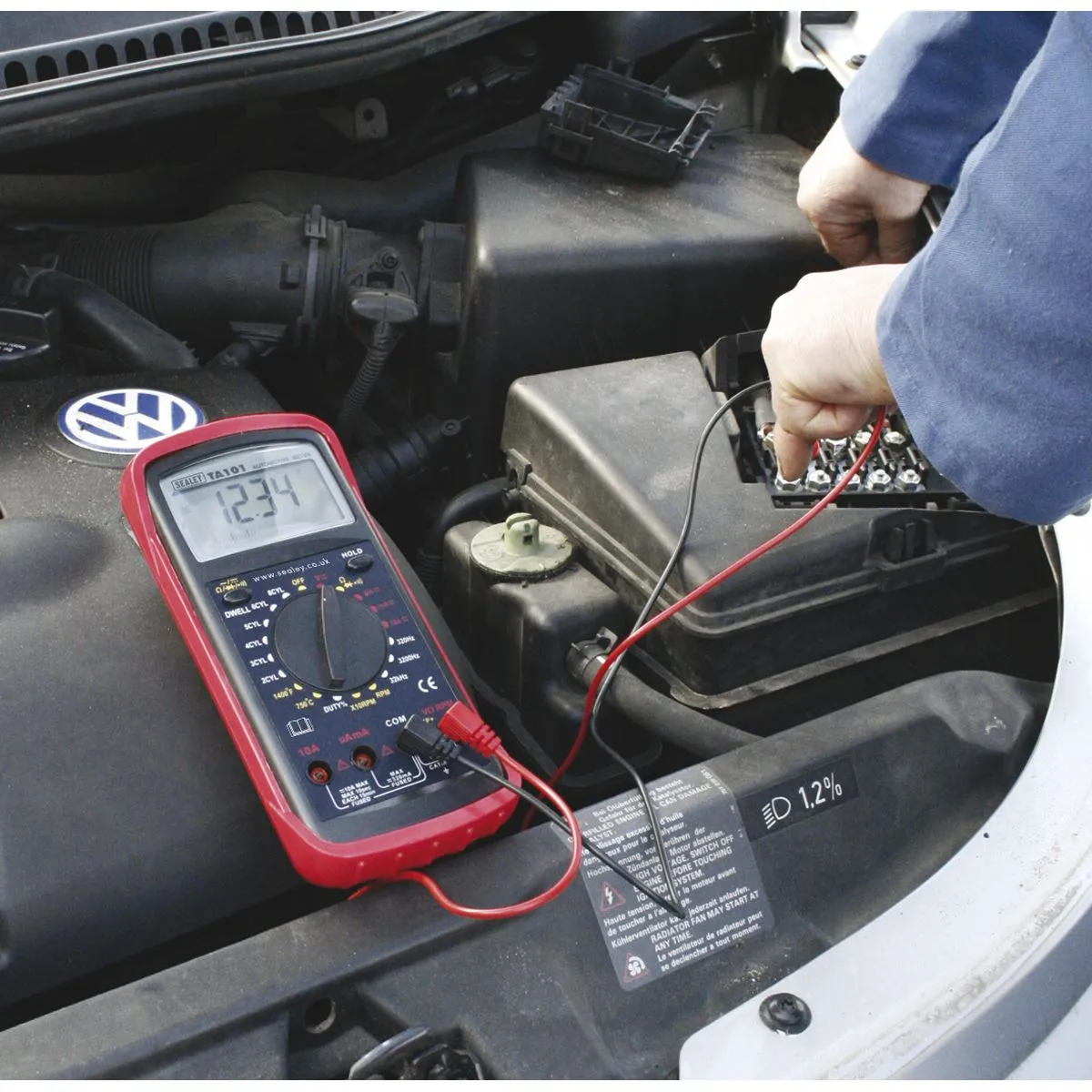

Bar graph simplifies lambda sensor testing.

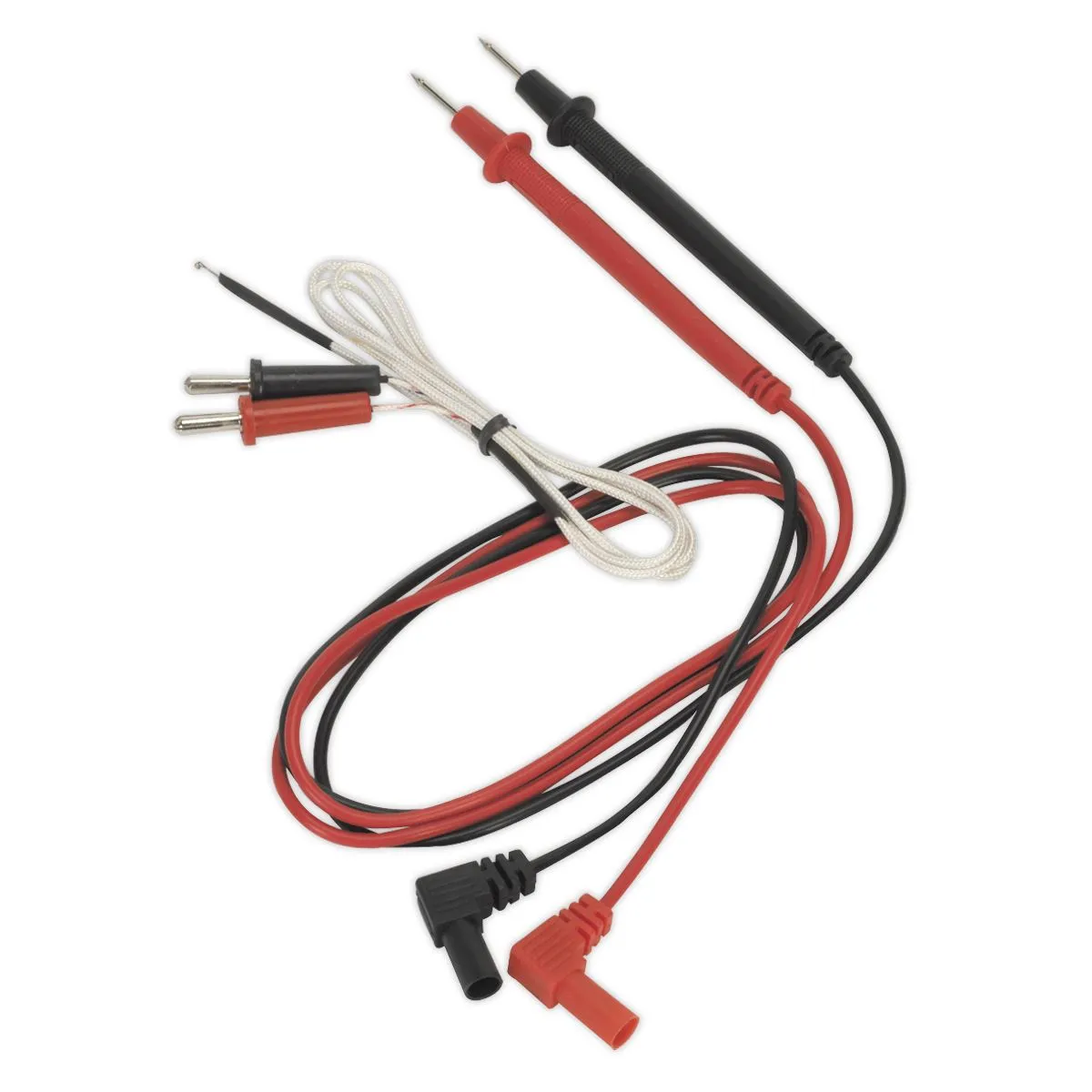

Supplied with capped test probes and K-type thermocouple.

Specification:

• Model No TA101
• Brand: Sealey
• Nett Weight: 400g
• Tach (rpm): 0-3260 (x1)rpm, 0-3260(x10)rpm
• Dwell: 2Cyl 0-180°, 3Cyl 0-120°, 4Cyl 0-90°, 5Cyl 0-72°, 6Cyl 0-60°, 8Cyl 0-45°
• AC Voltage: 326mV, 3.26V, 32.6V, 326V, 600V (Auto-Ranging)
• DC Voltage: 326mV, 3.26V, 32.6V, 326V, 600V (Auto-Ranging)
• AC Current: 326µA, 3260µA, 32.6mA, 326mA, 10A (Auto-Ranging for µA & mA)
• DC Current: 326µA, 3260µA, 32.6mA, 326mA, 10A (Auto-Ranging for µA & mA)
• Capacitance: No
• Frequency: 320Hz, 3200Hz, 32kHz (Manual Range)
• Duty Cycle: 0.1-99.9%
• Pulse Width: No
• Resistance: 326Ω, 3.26kΩ, 32.6kΩ, 326kΩ, 3.26MΩ, 32.6MΩ (Auto-Ranging)
• Continuity: <50Ω
• Temperature: -20 to 750°C/-4 to 1400°F
• IR Temperature: No
• Diode Check: Yes (Typical Test Current 1mA)
• Transistor Test: No
• Back Light: No
• Bar Graph Display: Yes
• Display Hold: Yes
• Auto-Ranging: Yes
• Inductive Coupler: No
• PC Interface: No
• Digits Height: 18mm
• Auto-Power-Off: Yes
• Low Battery Indicator: Yes
• Batteries (supplied): 9V (PP3)
• Hi-Impact Case: Yes
• Size (L x W x D): 200 x 93 x 50mm
• Weight: 400g
