The TR-06 is a detailed replica of the classic Roland TR-606—with some major modern upgrades. Our new Roland Boutique version has the distinctive tone and iconic look of the original, with more sound-shaping options, innovative sequencing capabilities, and an array of triggers for driving modular gear.
Features:
- Detailed recreation of the vintage Roland TR-606 using Analog Circuit Behavior (ACB) modelling
- Authentic sound and iconic look of the original
- Expanded sound-shaping options with tuning, decay, pan, gain, and more
- Onboard compressor, delay, and overdrive effects
- Advanced sequencer with sub-steps, probability, and step-loop
- Five trigger outputs and one trigger input for easy integration with modular and other gear
- Colour-matched DK-01 case with three tilt options
- Sturdy and portable with solid construction and a metal top
- Runs on four AA batteries or USB bus power
Specifications:

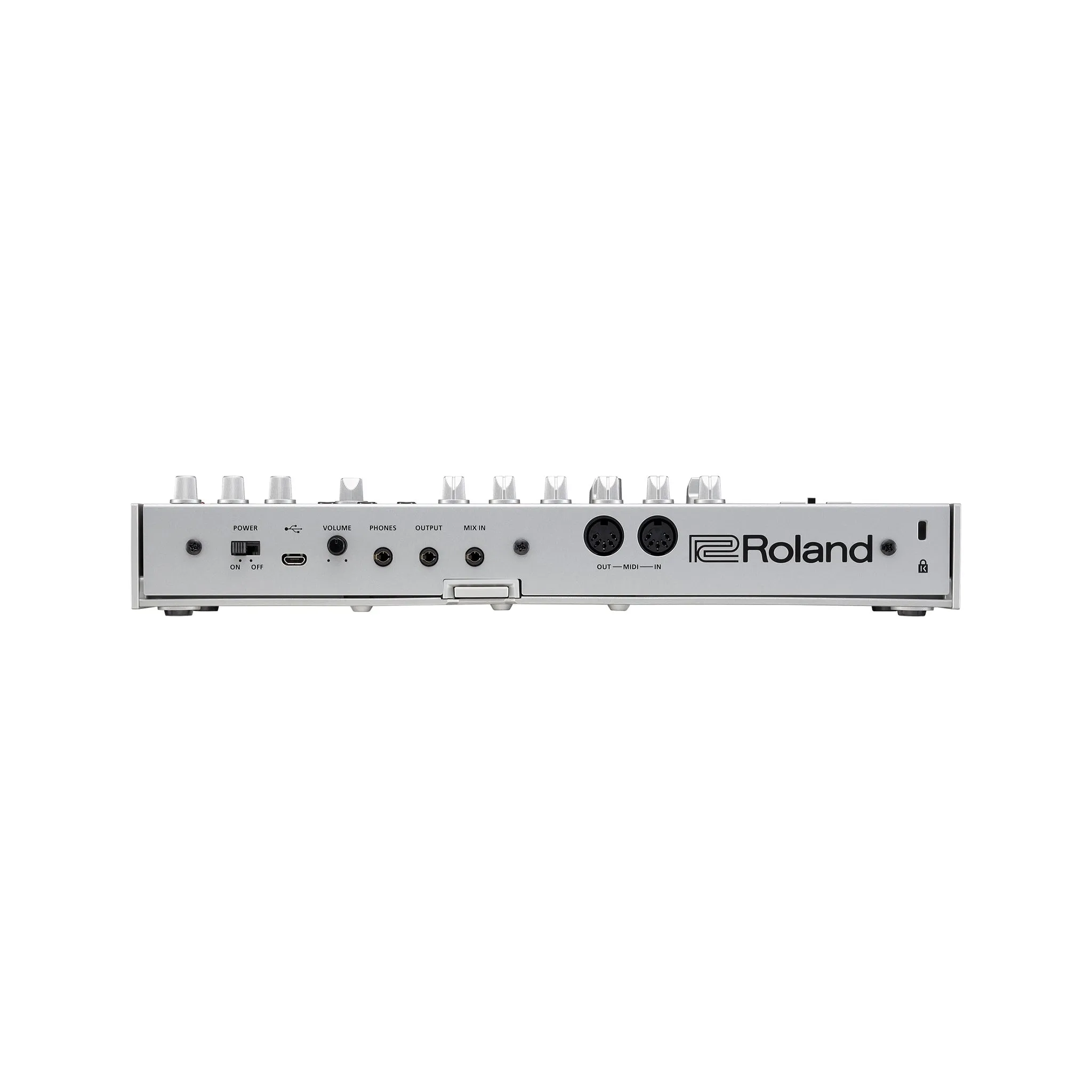

- Connectors: TRIGGER IN jack: mono miniature phone type; TRIGGER OUT jack x 5 (AC, BD, SD, LT, HT): mono miniature phone type; PHONES jack: stereo miniature phone type; OUTPUT jack: stereo miniature phone type; MIX IN jack: stereo miniature phone type; MIDI (IN, OUT) connectors; USB port: Micro-B type (Audio, MIDI)
- Power Supply: Rechargeable Ni-MH battery (AA, HR6) x 4, Alkaline battery (AA, LR6) x 4, USB bus power
- Accessories: Boutique Dock: DK-01 (Silver), Owner's Manual, DK-01 Owner's Manual, Leaflet "USING THE UNIT SAFELY", Alkaline battery (AA, LR6) x 4
- Dimensions (W X D X H): 308 mm / 12-1/8 inches X 130 mm / 5-1/8 inches X 52 mm / 2-1/16 inches
- Weight (including batteries and Boutique Dock): 1.2 kg / 2 lbs 11 oz
