On Sale for $2999. 99 till the end of April!

Oscillators

• Two authentic CEM 3340 VCOs per voice
• Three simultaneously selectable wave shapes (triangle, sawtooth, pulse) per oscillator
• Pulse width per oscillator
• Hard sync: oscillator 1 syncs to oscillator 2
• Low frequency mode (oscillator 2)
• Keyboard tracking on/off (oscillator 2)
• “Vintage” knob for increased tuning instability, reproduces characteristics of all original revisions of Prophet-5

Mixer

• Oscillator 1 amount
• Oscillator 2 amount
• White noise amount

Low-Pass Filter

• Four-pole, resonant, low-pass filter per voice
• Switchable between authentic versions of the Prophet-5 Rev1/2 filter and Prophet-5 Rev3 filter
• Rev1/2 filter is a Dave Rossum-designed 2140, the modern counterpart of the original 2040 filter found in the Prophet-5 Rev1 and Rev2
• Rev3 filter is a Doug Curtis-designed CEM 3320, the modern counterpart of the original found in the Prophet-5 Rev3
• Filter can be driven into self-oscillation with the Resonance control
• Keyboard tracking: off, half, full

Filter Envelope

• Four-stage (ADSR) envelope generator
• Velocity modulation of envelope amount

AMPLIFIER ENVELOPE

• Four-stage (ADSR) envelope generator
• Velocity modulation of envelope amount

LOW FREQUENCY OSCILLATOR

• Three wave shapes: sawtooth, triangle, square. All waveshapes can be engaged simultaneously
• Both Initial Amount and mod wheel control
• Mod destinations: oscillator A frequency, oscillator B frequency, oscillator A and B pulse width, filter cutoff

POLY MOD

• Sources: filter envelope and oscillator B
• Destinations: oscillator A frequency, oscillator A pulse width, filter cutoff

• AFTERTOUCH

  • Channel (mono) aftertouch
  • Destinations: filter cutoff frequency, LFO amount

  PERFORMANCE CONTROLS

  • Full-sized, semi-weighted, premium Fatar 5-octave keyboard with velocity and aftertouch
  • Mod wheel
  • Spring-loaded pitch wheel with selectable range per program (1 to 12 semitones up and down)
  • Polyphonic glide (portamento)
  • Unison (monophonic) mode with configurable voice count, from one to all five voices (10 voices for Prophet-10) and key modes
  • Preset switch: when off, the front panel is live; what you see is what you hear

  PATCH MEMORY

  • 200 user and 200 factory programs in 5 banks of 40 programs each
  • Direct program access, including Prophet 5-style single-button access to the current set of 8 programs

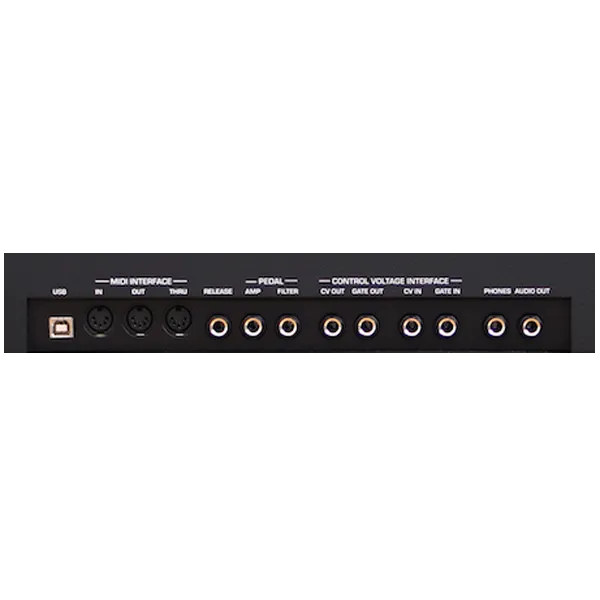

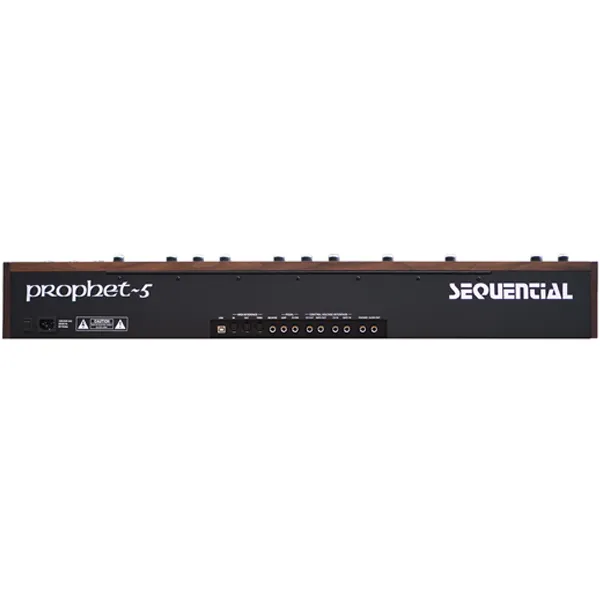

  IN/OUT

  • Mono output (1 x 1/4” phone jack)
  • Headphone output (stereo, 1/4” phone jack)
  • MIDI in, out, and thru ports
  • USB for bidirectional MIDI communication
  • Low-pass filter cutoff expression pedal input
  • Volume expression pedal input
  • Sustain footswitch input

  POWER

  • IEC AC power inlet for internal power supply
  • Operates worldwide on voltages between 100 and 240 volts at 50 to 60 Hz; 30 watts maximum power consumption

  PHYSICAL SPECS

  • 37.5” L x 16.4 W x 4.9" H (95.25 cm x 41.6 cm x 12.4 cm)
  • 31 lbs (14.06 kg)
  • Premium steel and hand-oiled, premium black walnut heartwood body and trim
