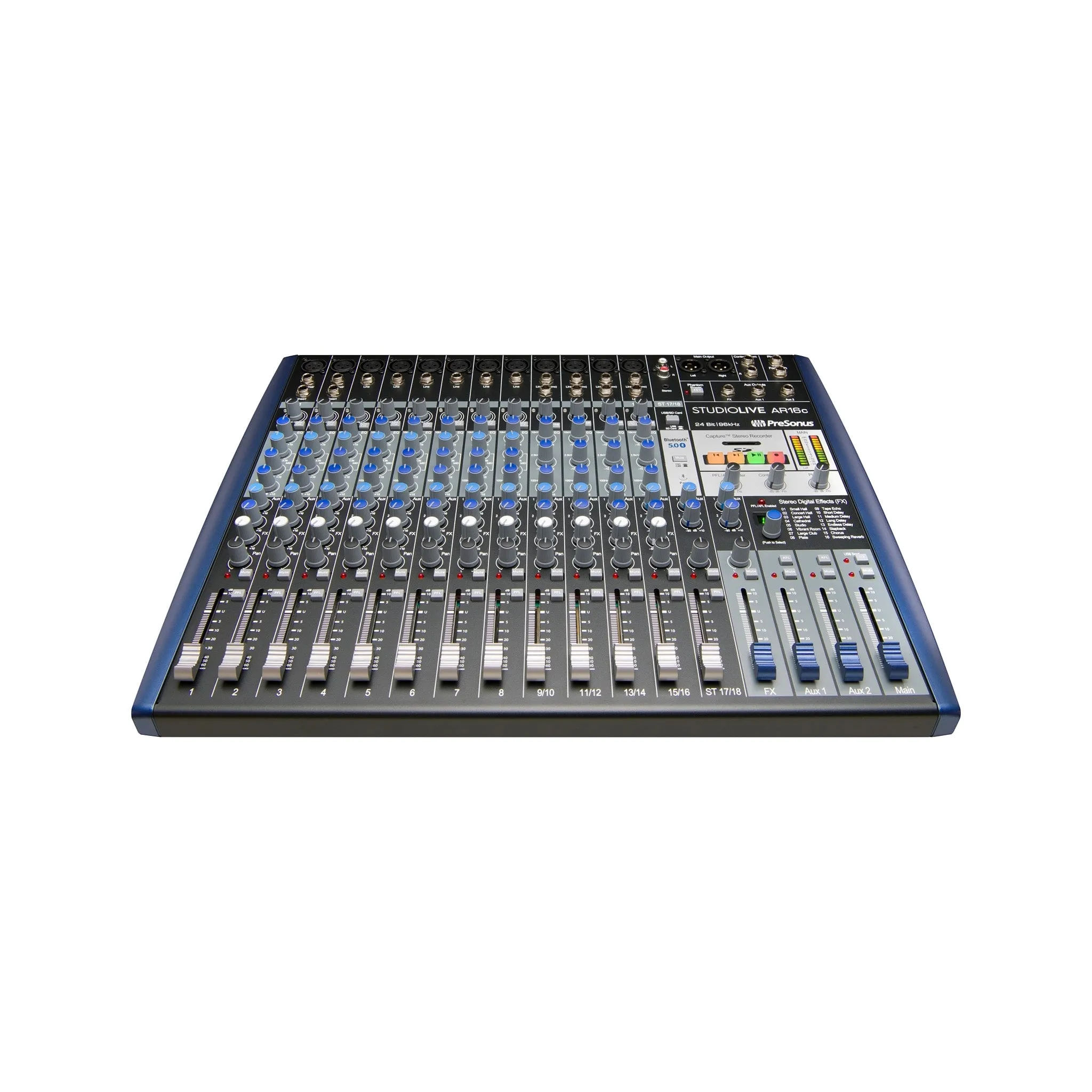

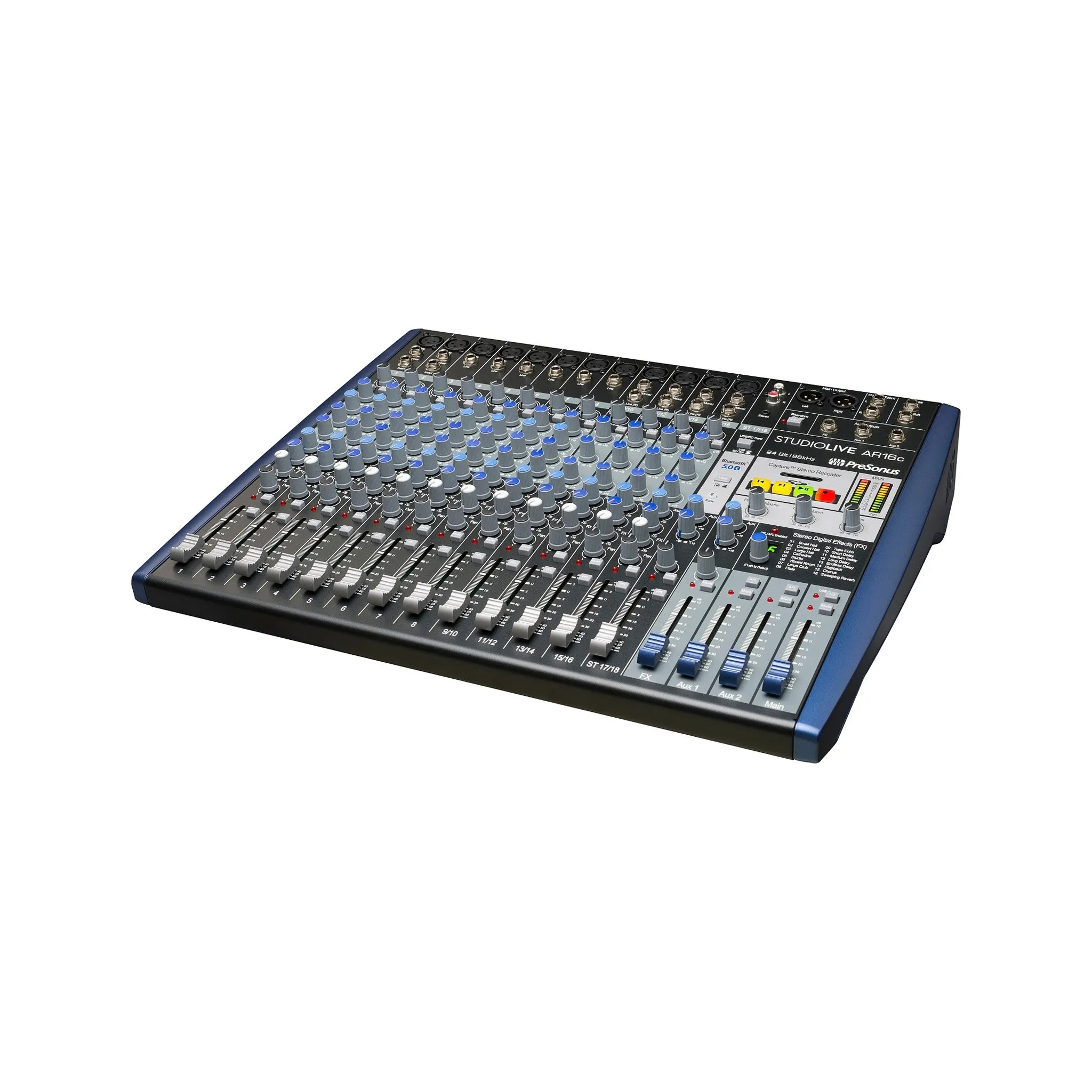

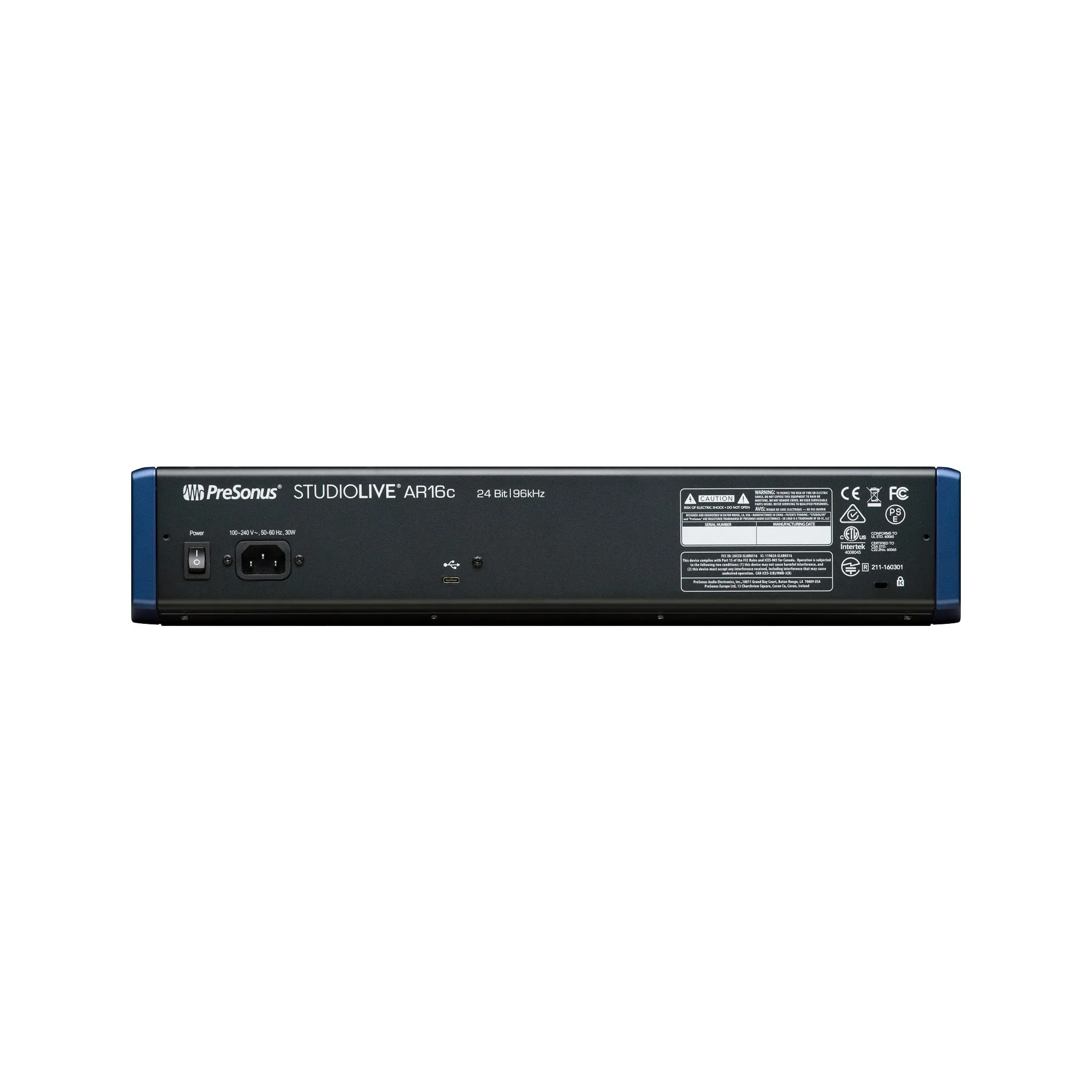

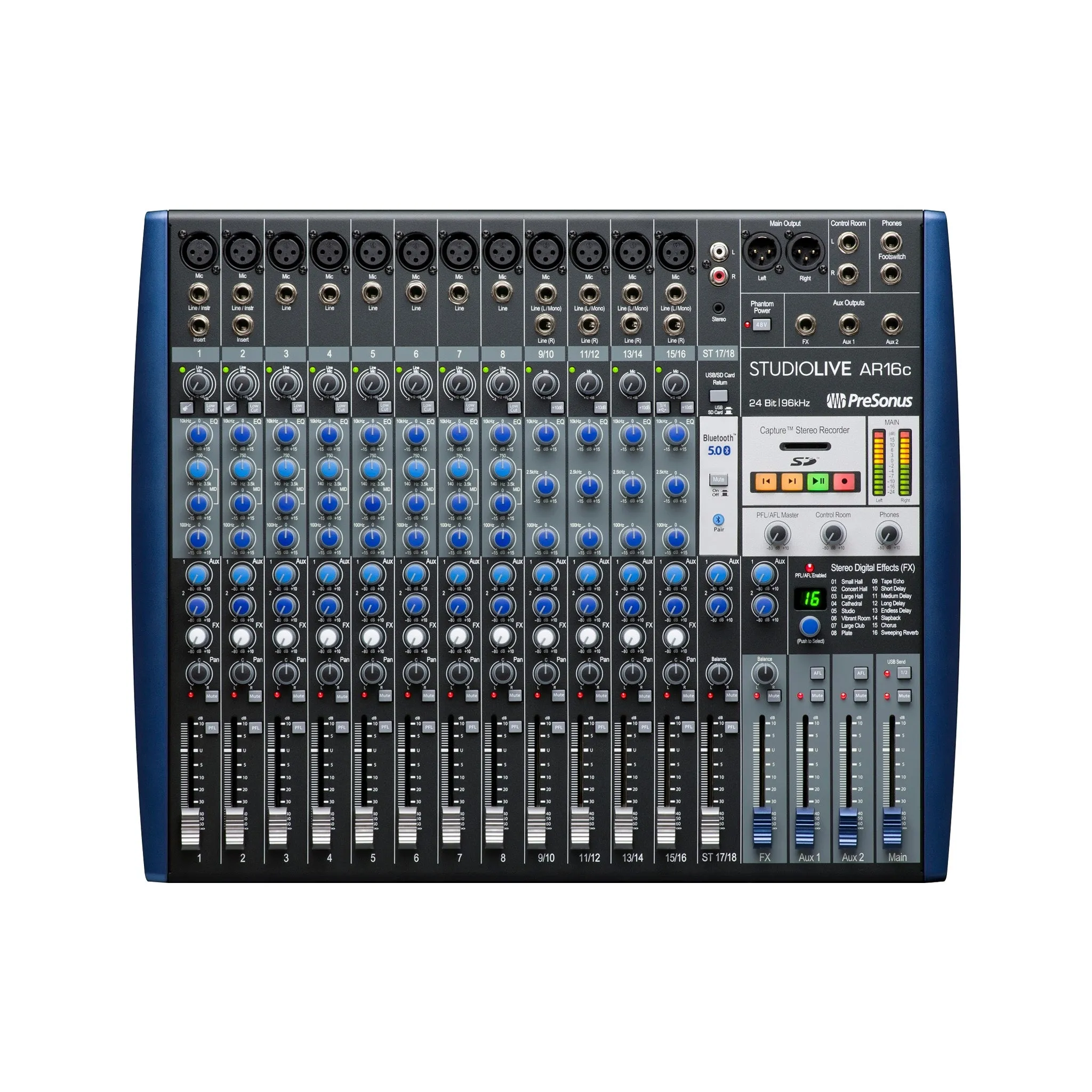

Don’t let the classic analogue mixer design fool you—the StudioLive® AR16c was built to record. Featuring a pristine analogue front end with 12 high-gain XMAX mic preamps and an 18x4, 24-bit, 96 kHz, USB-C™-compatible USB 2.0 audio interface, the StudioLive AR16c’s hybrid design makes it simple to mix and record. Add in a musical 3-band analogue EQ, mic/line boost for low-level sources including vintage synths, all-new digital effects with rich reverbs and lush delays, Bluetooth® connectivity, and a stereo SD recorder... and you have a mixing and recording powerhouse that fulfils the needs of both modern musicians and content creators.

Features:

• 18x4 24-bit/96 kHz, USB 2.0 (over USB-C™ connection) audio recording interface; record every channel plus the main mix
• 2x2 SD recorder (record main mix); supports SD and SDHC formats up to 32 GB
• 12 balanced microphone inputs with XMAX mic preamps plus two instrument inputs, 16 balanced line level inputs, and 2 insert points
• Stereo Super Channel (Ch. 17/18) with Bluetooth®0 wireless, RCA inputs, 1/8-inch stereo input, and switchable SD/USB stereo playback
• Stereo effects processor with 16 presets, dedicated send and return, and bypass footswitch jack
• Complete recording solution: Includes Capture™ live-recording software and Studio One® Artist DAW for Mac® and Windows

Specifications:

• Voltage: 100-120V
• Connection Type: IEC
• Mic Preamp Frequency Response: 20 Hz to 20 kHz, 0.5/-1.5 dB
• Phantom Power: 48V, ±3V, Global
• Line Inputs Frequency Response: 20 Hz to 20 kHz, 0.5/-1.5 dB
• Main and Line Out Frequency Response: 20 Hz to 20 kHz, 0.5/-1.5 dB
• Bit Depth: 24
• Sample Rate: 44.1, 48, 88.2, 96, 176.4, or 192 (kHz)
• System Requirements: Windows 10 20H1 (64-bit only) or Windows 11 (64-bit only), macOS version 10.14 or later, 200 MB storage space and 4 GB RAM for Universal Control (required for firmware updates and low-latency ASIO support)
• Includes: One - PreSonus StudioLive AR16c Analog Mixer, 1m USB Cable, IEC Power Cord, Rack Ear Mounting Kit, Quick Start Guide
• Dimensions: 18.9" (W) x 3.5” (H) x 15.6” (L)
• Weight: 6.4 kg
