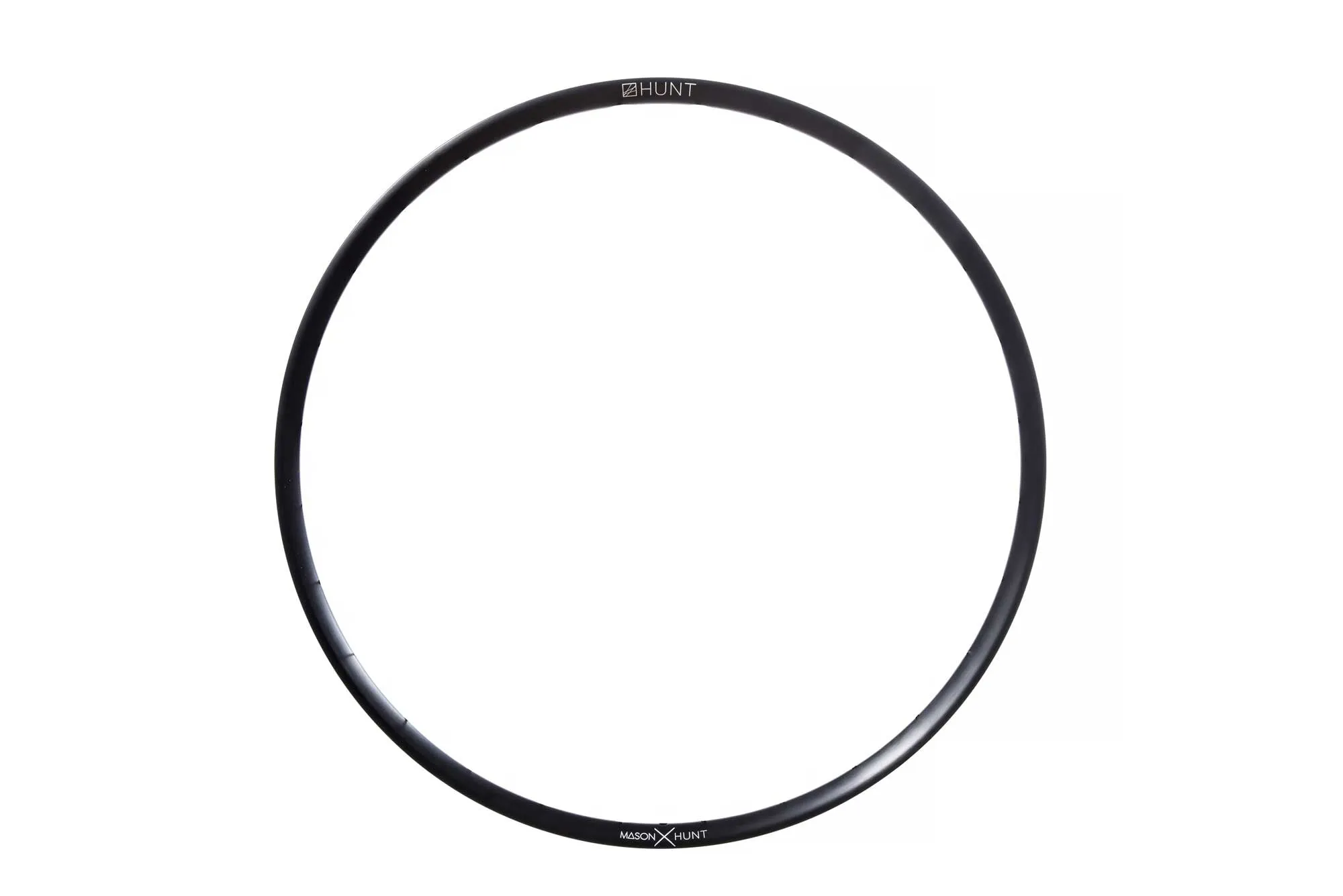

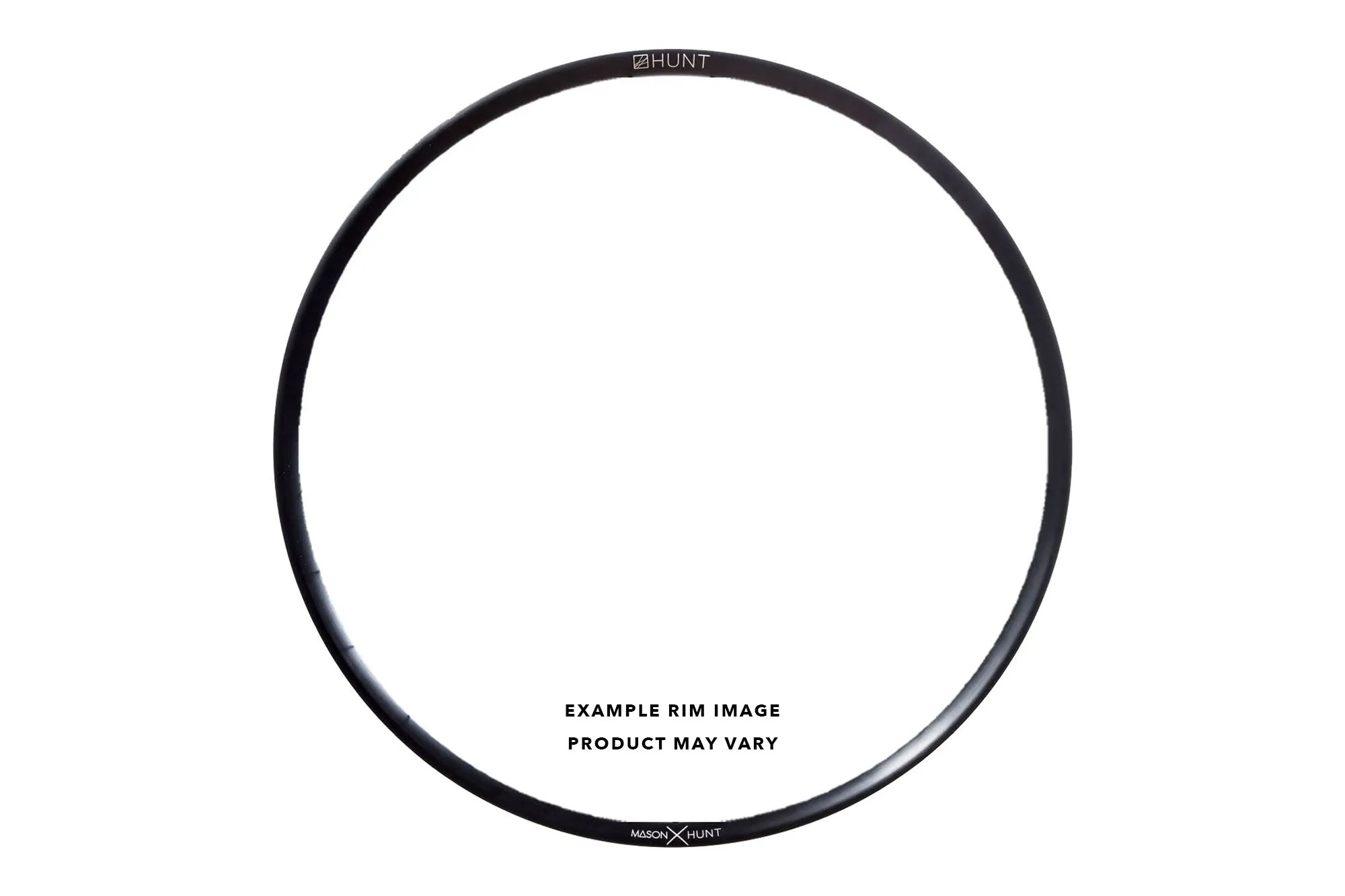

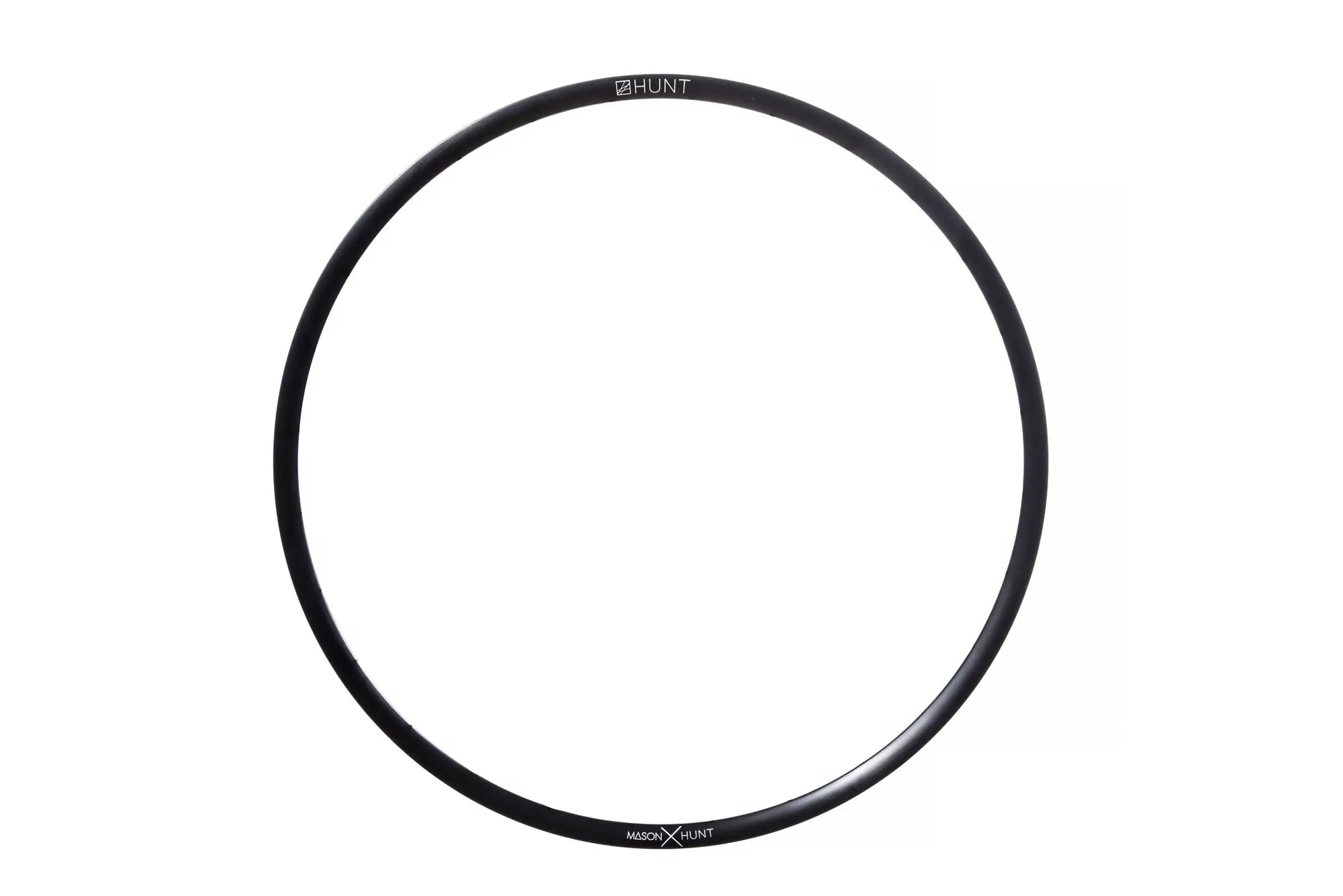

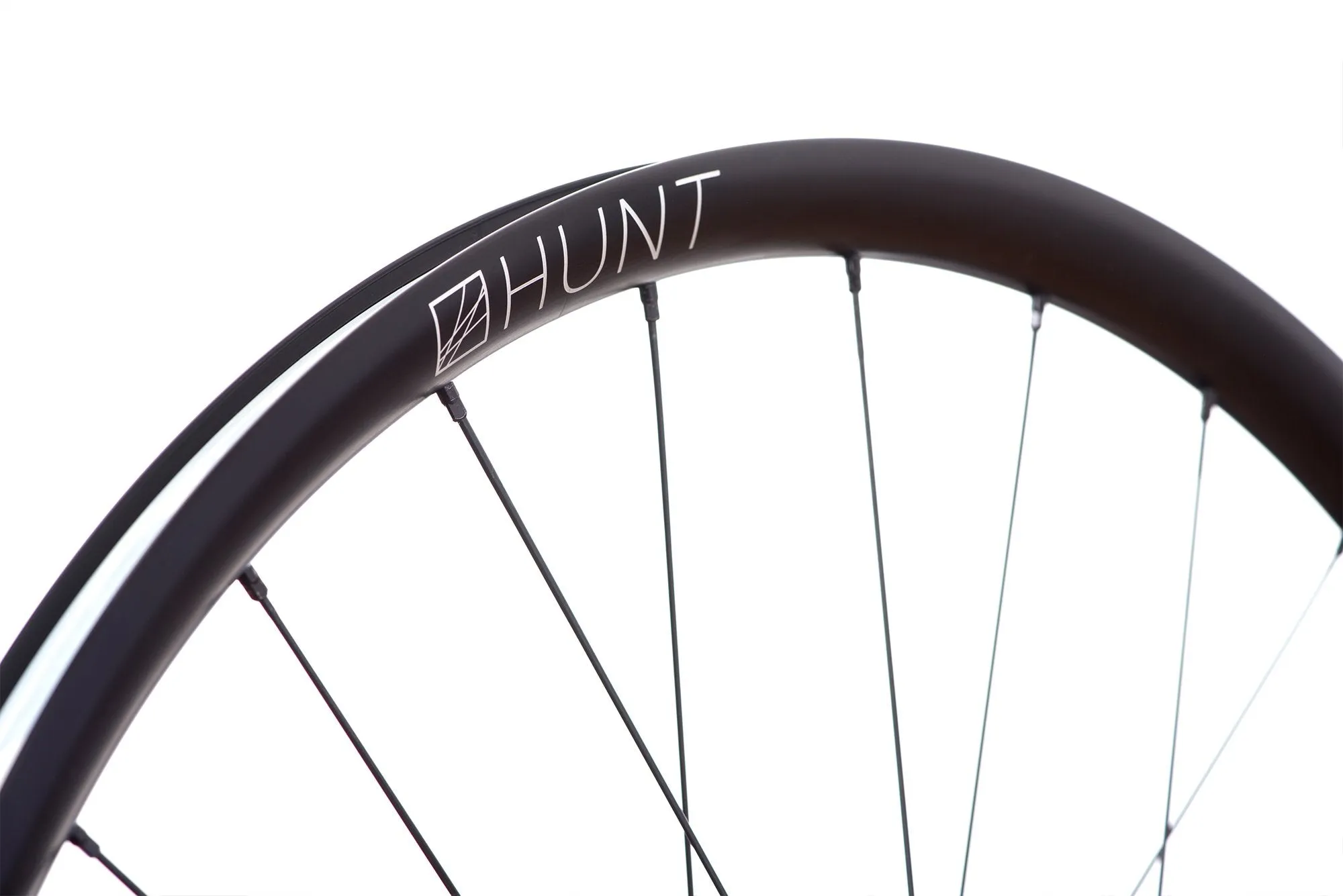

Rims for wheels specifically created for the new breed of adventurous thrasher go-anywhere drop-bar bikes designed to work with multiple wheel and tyre sizes.

19 DEEP | 29 WIDE Ext | 25 Wide Int | 400G

Key features of this rim that make it great for the focused purpose of drop-bar adventure/gravel road riding are:

Wider 29mm external/25mm internal rim provides excellent ride handling and support for wider tyres and they work perfectly with up to 2.3” MTB tyres.
The 19mm deep rim delivers excellent strength needed for the lower spoke counts and higher gear torques from road groupsets when compared to MTB setups.
Asymmetric rim accommodates the front disc and rear cassette hub offsets and helps build an even stronger and more durable wheelset thanks to balanced spoke tensions.

Rim

Tubeless-ready – designed to work excellently with normal clincher tyres and tubes or tubeless tyres.
H-lock bead-seat up-kicks for easy and secure tubeless installation
6066-T6 ( 34% tensile strength vs 6061-T6) heat-treated aluminium alloy.
Asymmetric to balance spoke tensions

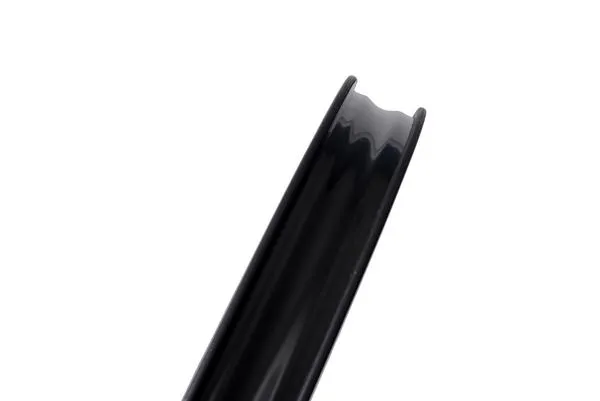

Disc-specific tubeless-ready profile

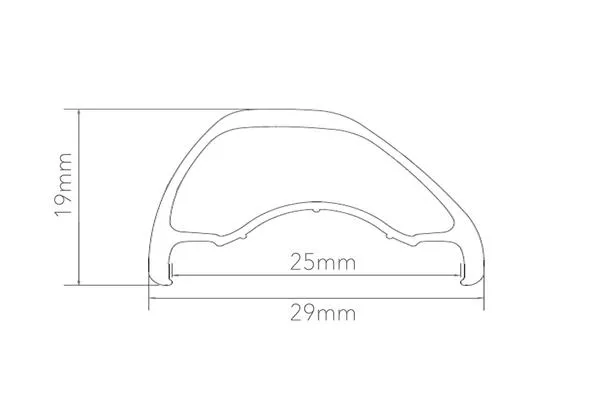

29mm outer and 25mm inner width ideal for 28-54mm tyre widths
19mm depth

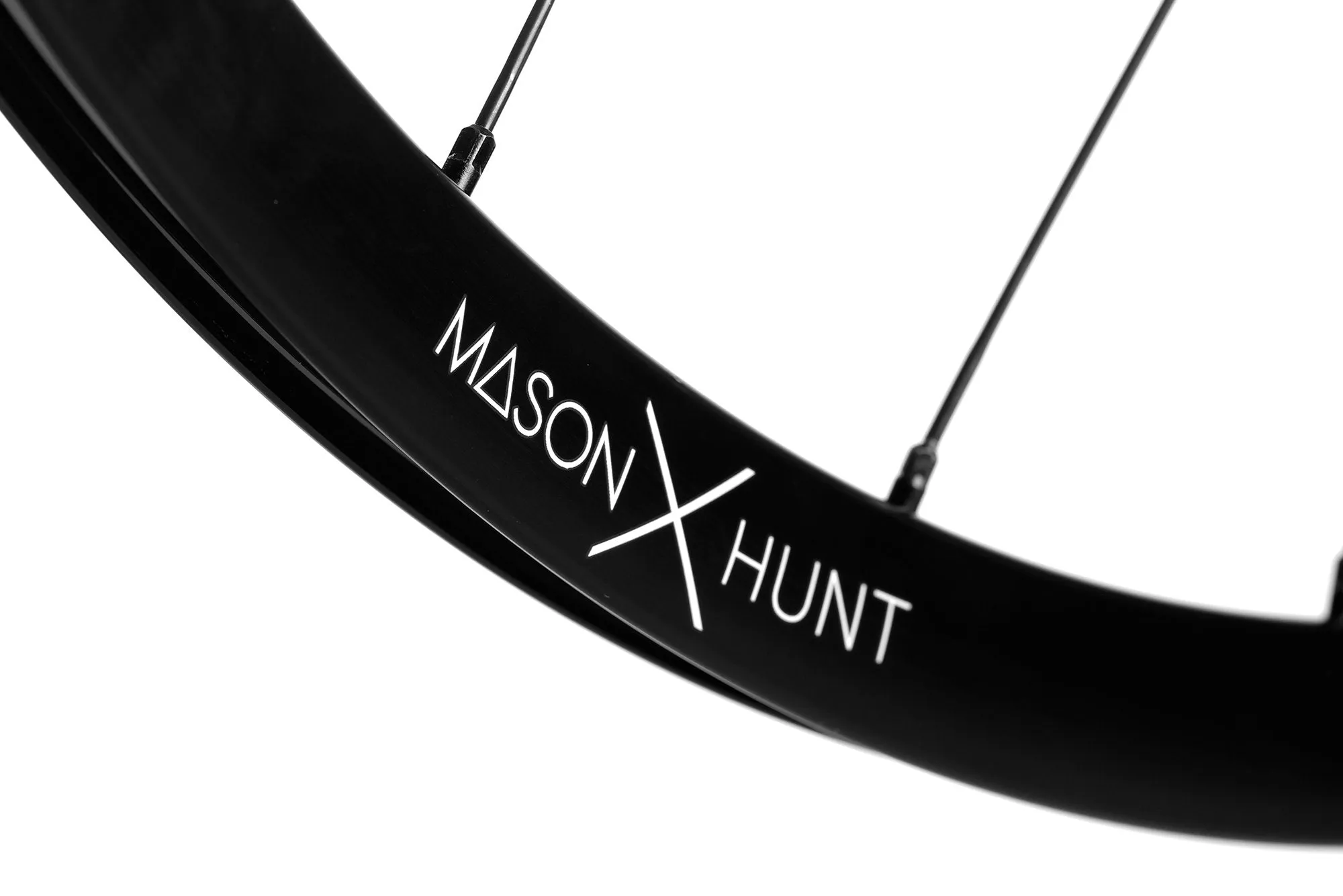

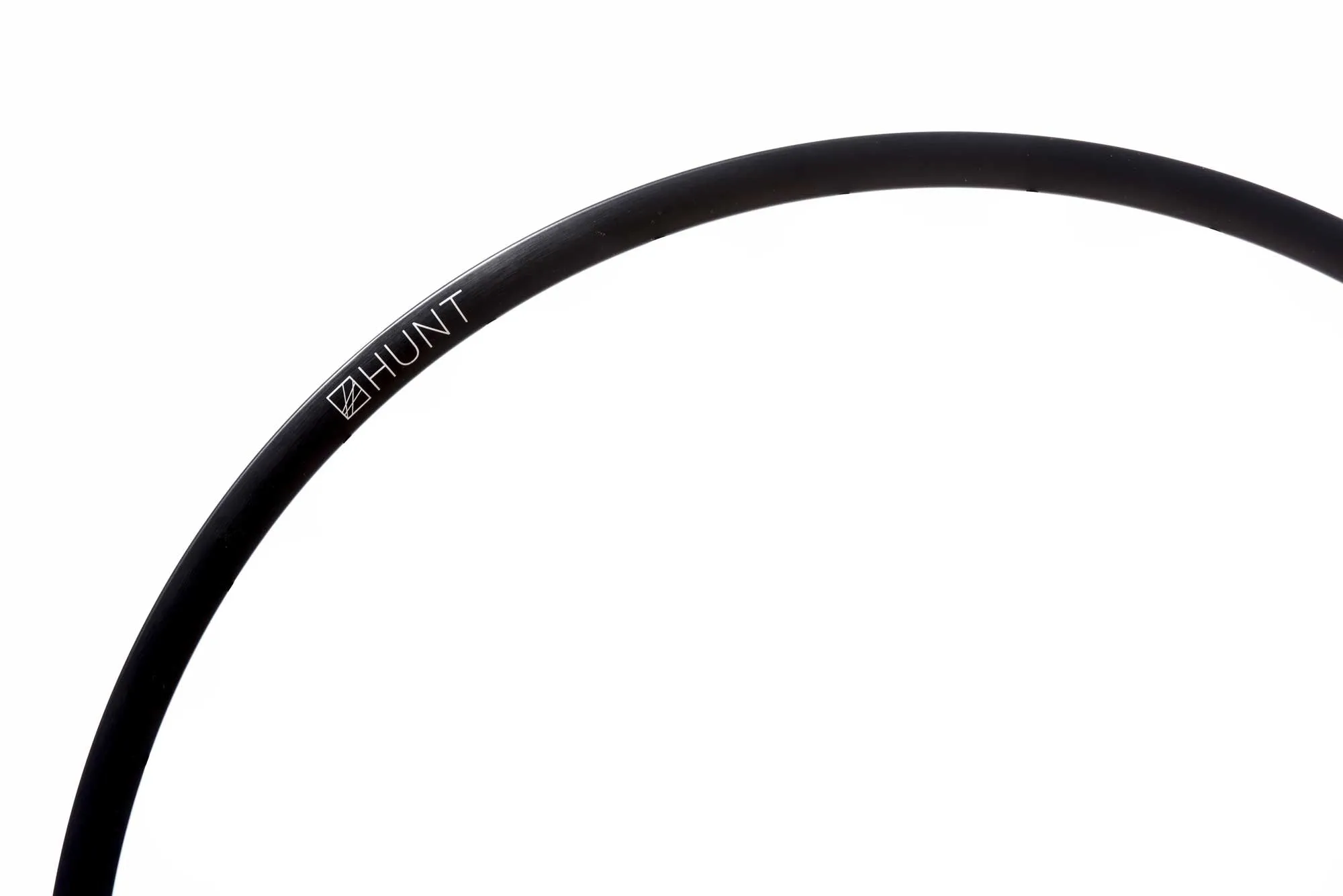

Matt black anodized finish with laser-etched graphics for excellent durability
Maximum tyre pressure for this rim: 35mm do not exceed 50psi, 45mm do not exceed 45psi, 45mm do not exceed 40psi. The maximum pressure of your tyre may be lower than the maximum pressure for the rim - never exceed the maximum pressure written on the side of your tyre. Suitable for tyres from 35mm to 65mm wide (always check compatibility with your tyre manufacturer).
ERD 558mm
Lacing:
