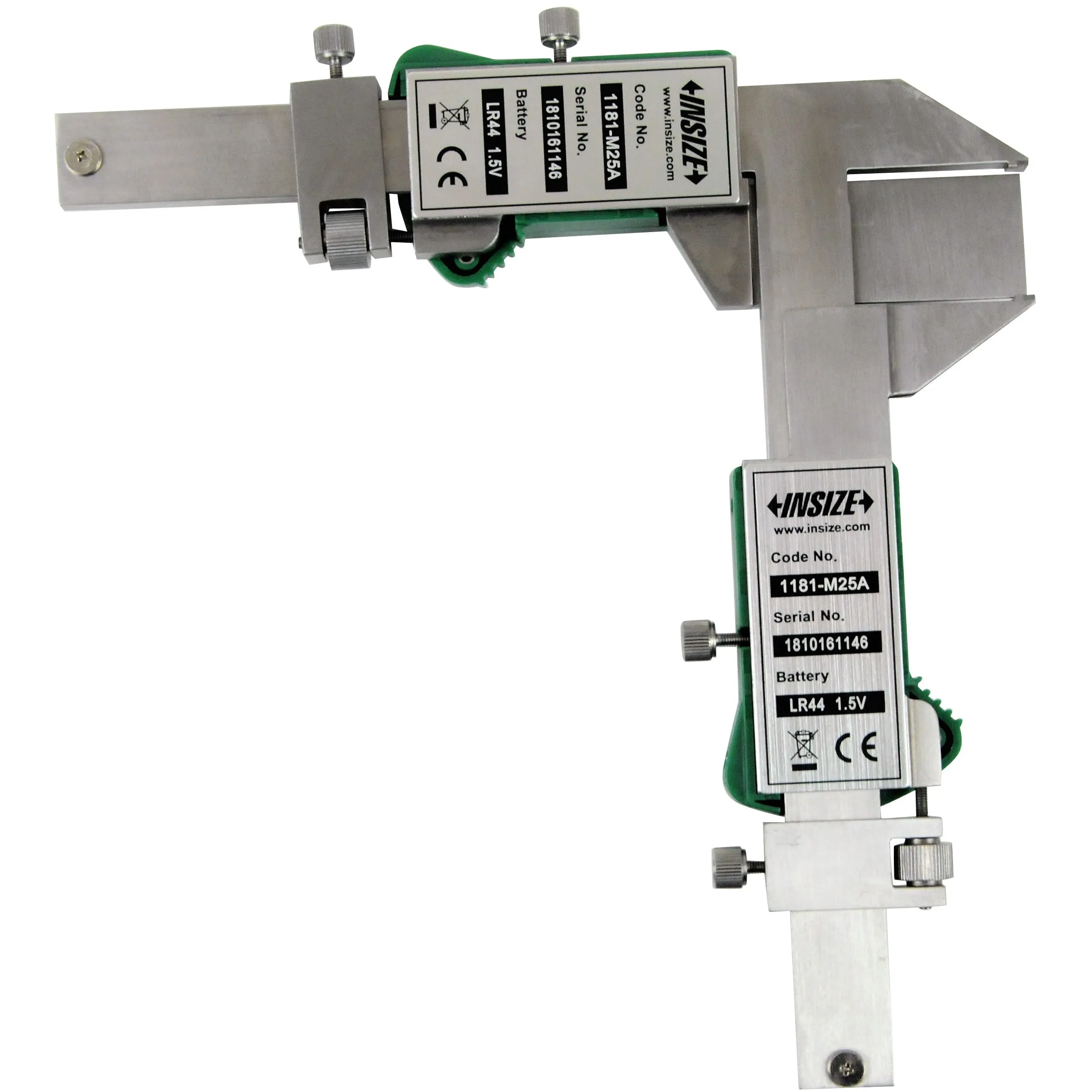

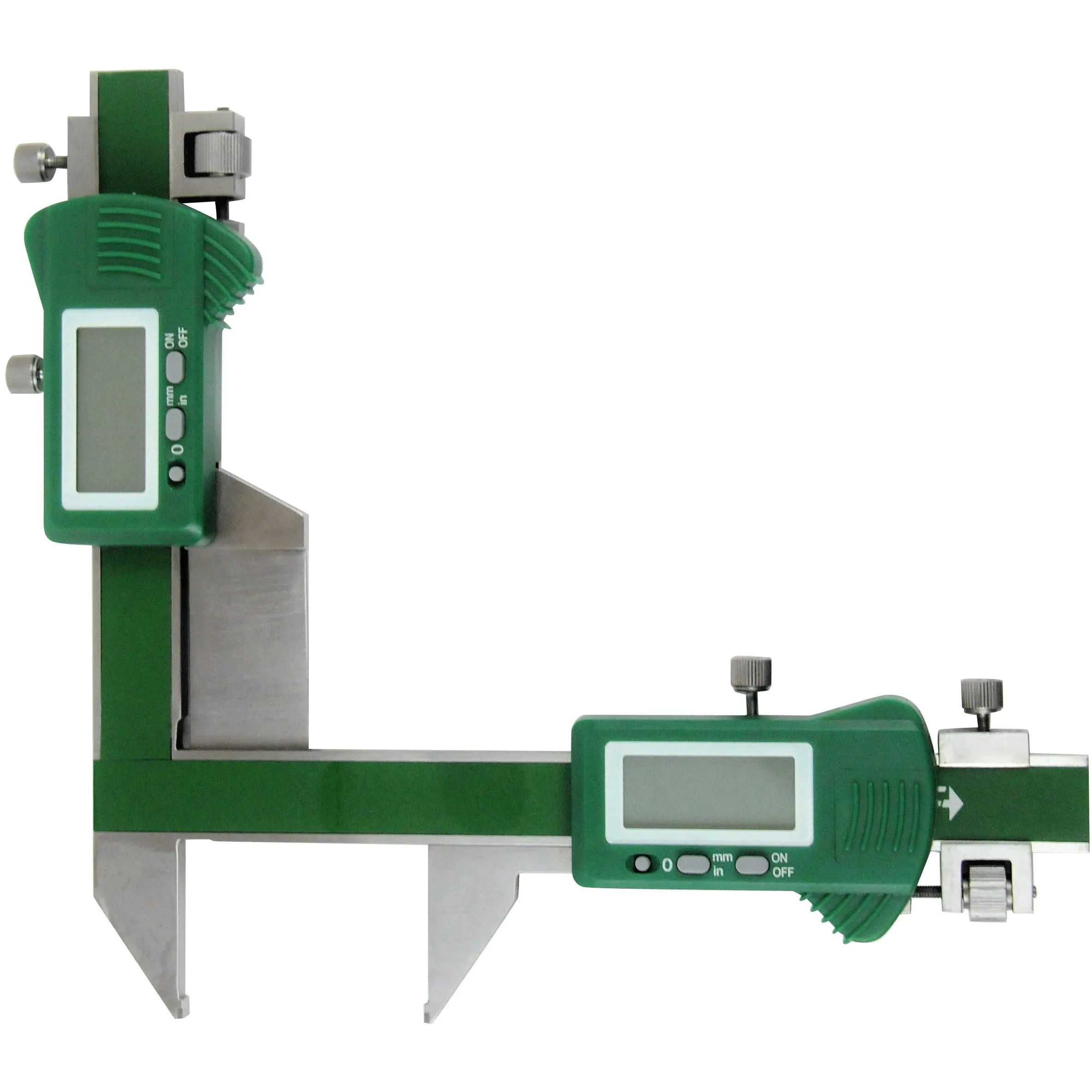

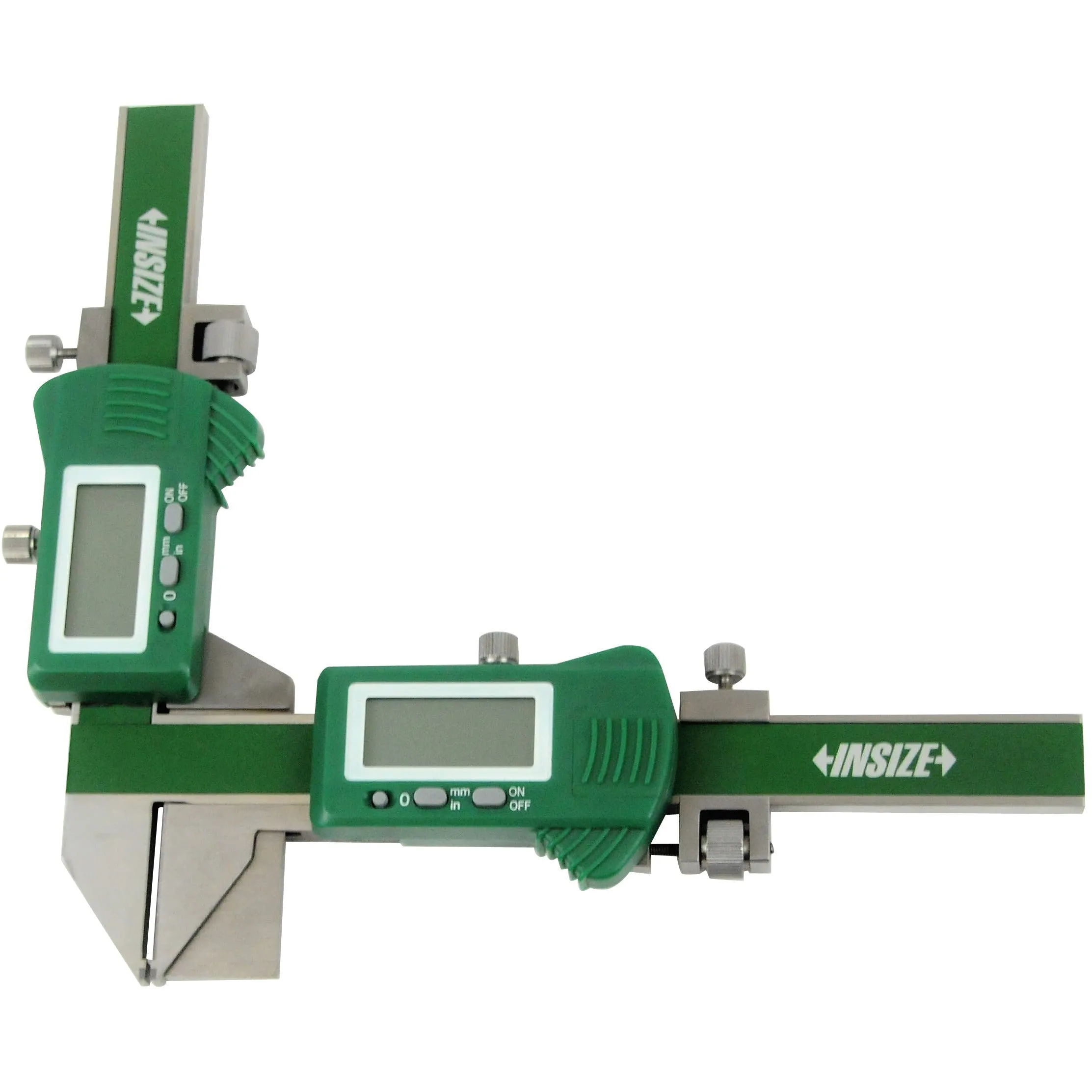

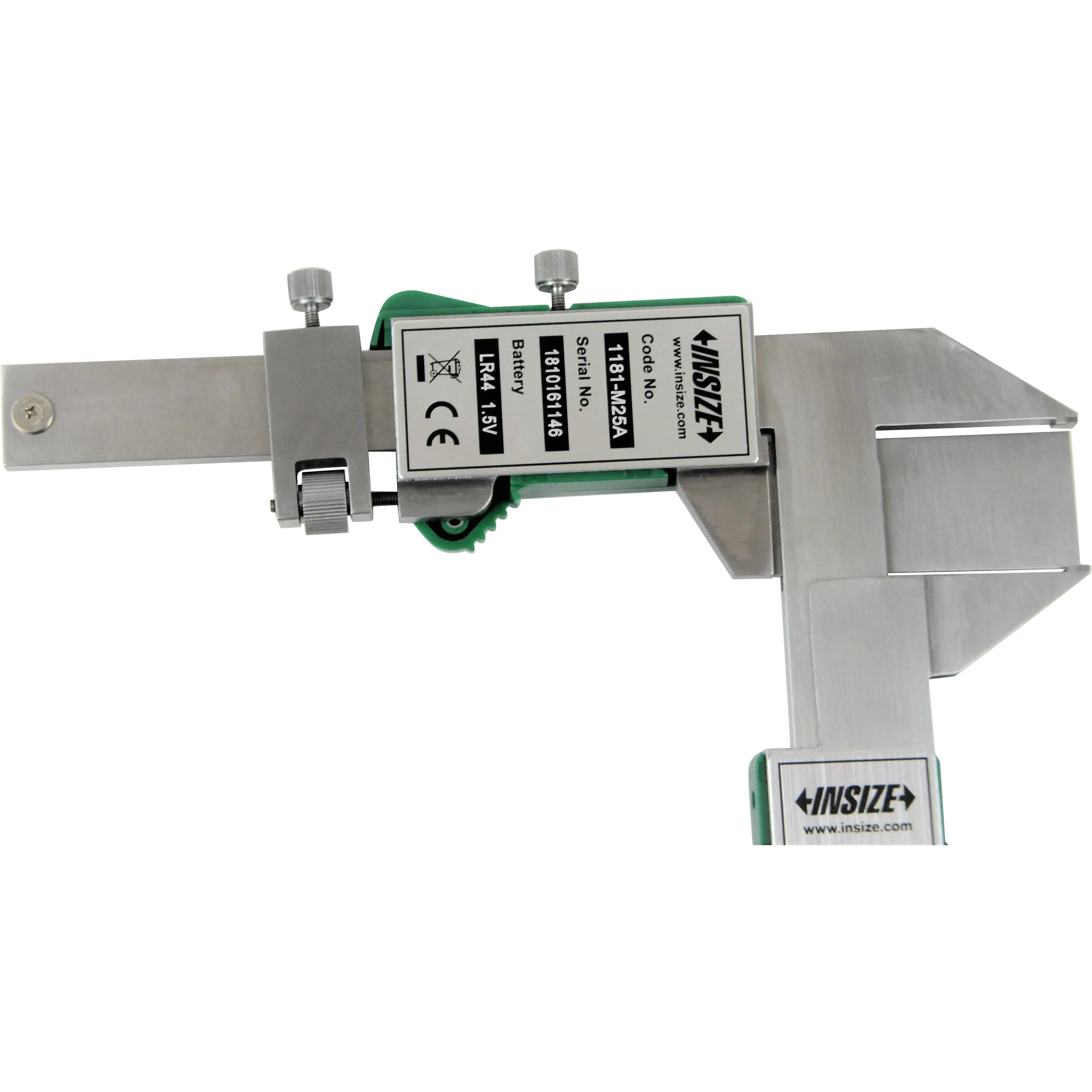

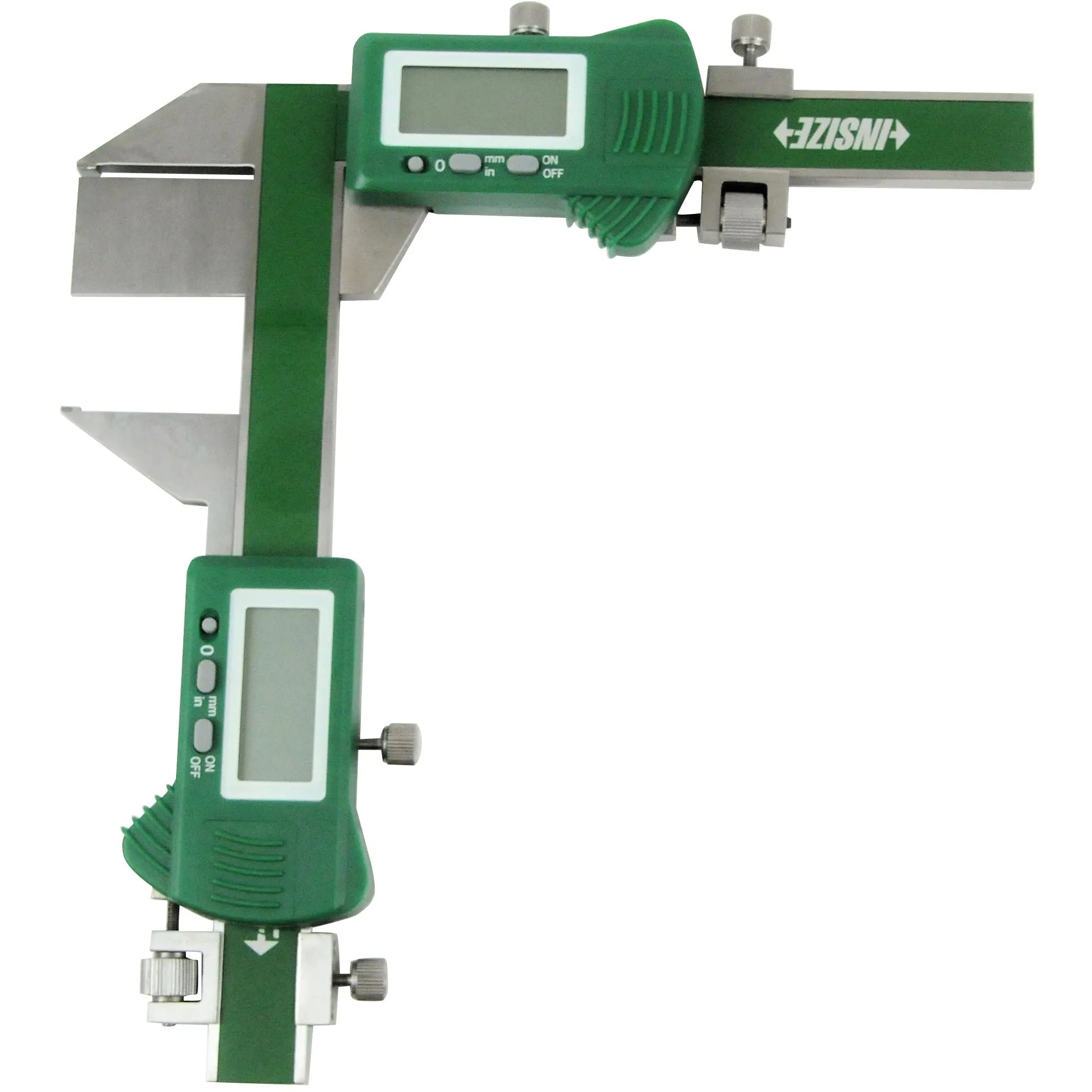

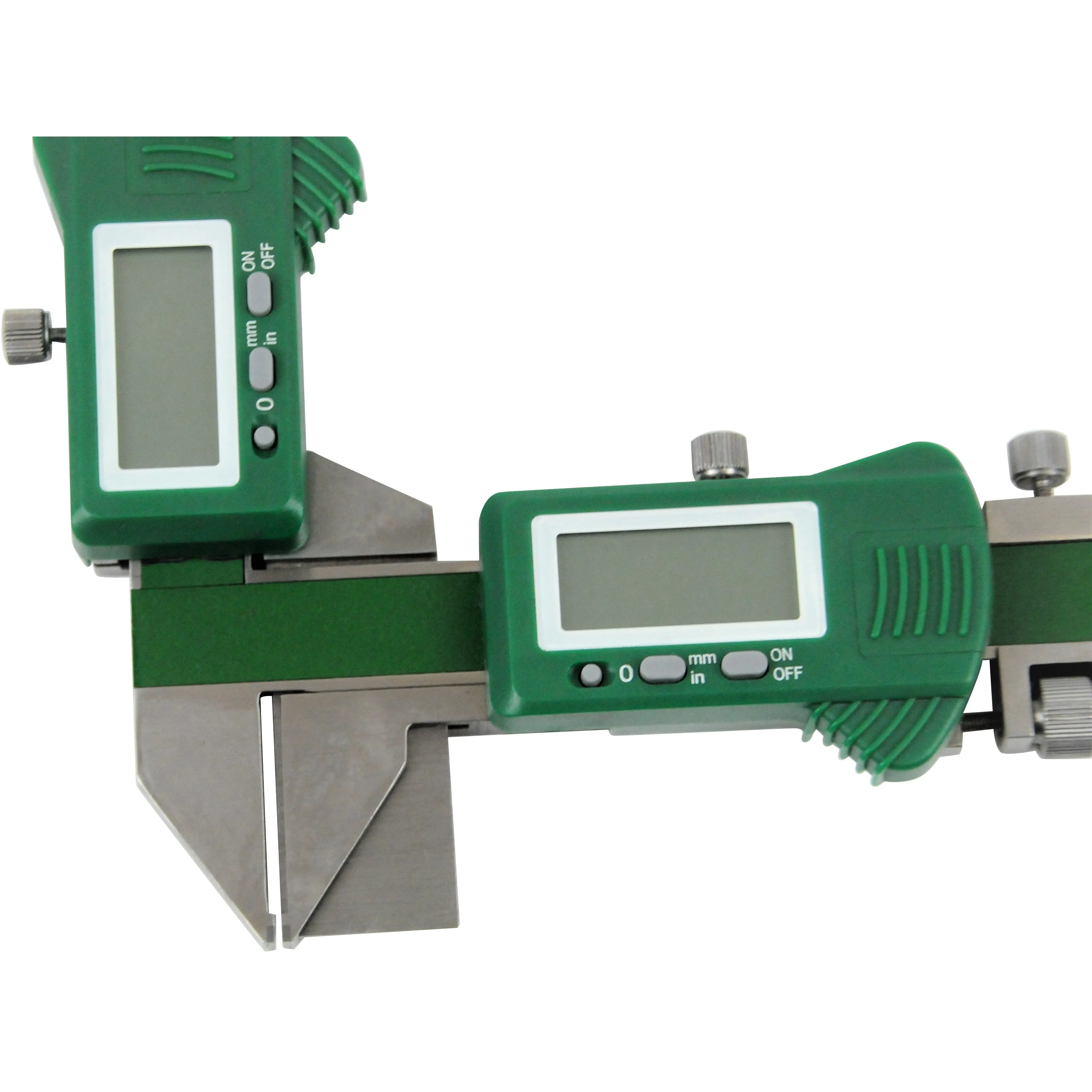

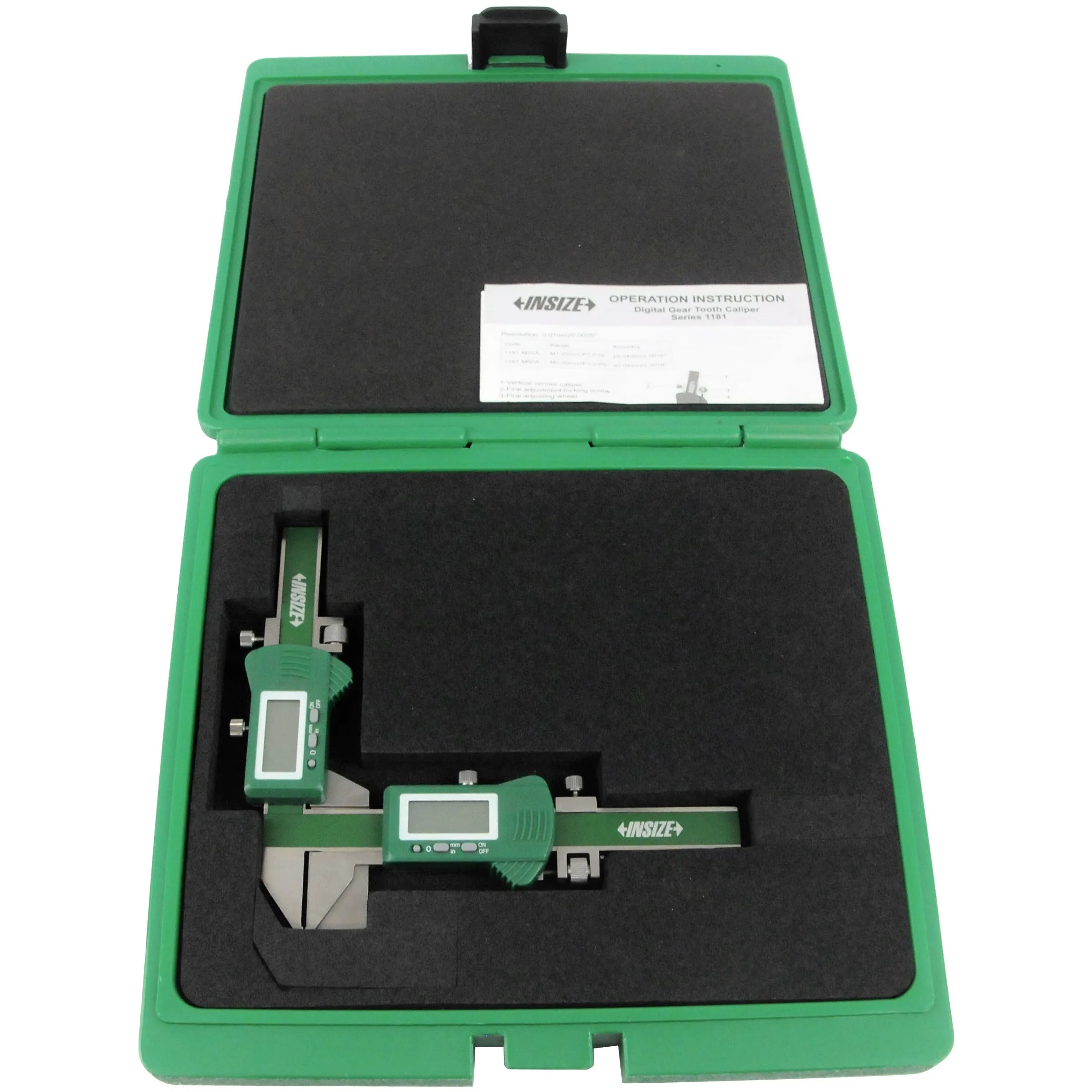

Insize 1-25mm Gear Tooth Digital Caliper

You are buying a genuine Insize product from the agent appointed distributor of all Insize products within Australia. What does this mean for you, all our product warranty is honoured within Australia by Twin Eagle. Each product is shipped with a unique identifier. Feel free to contact us to supply your Insize products.

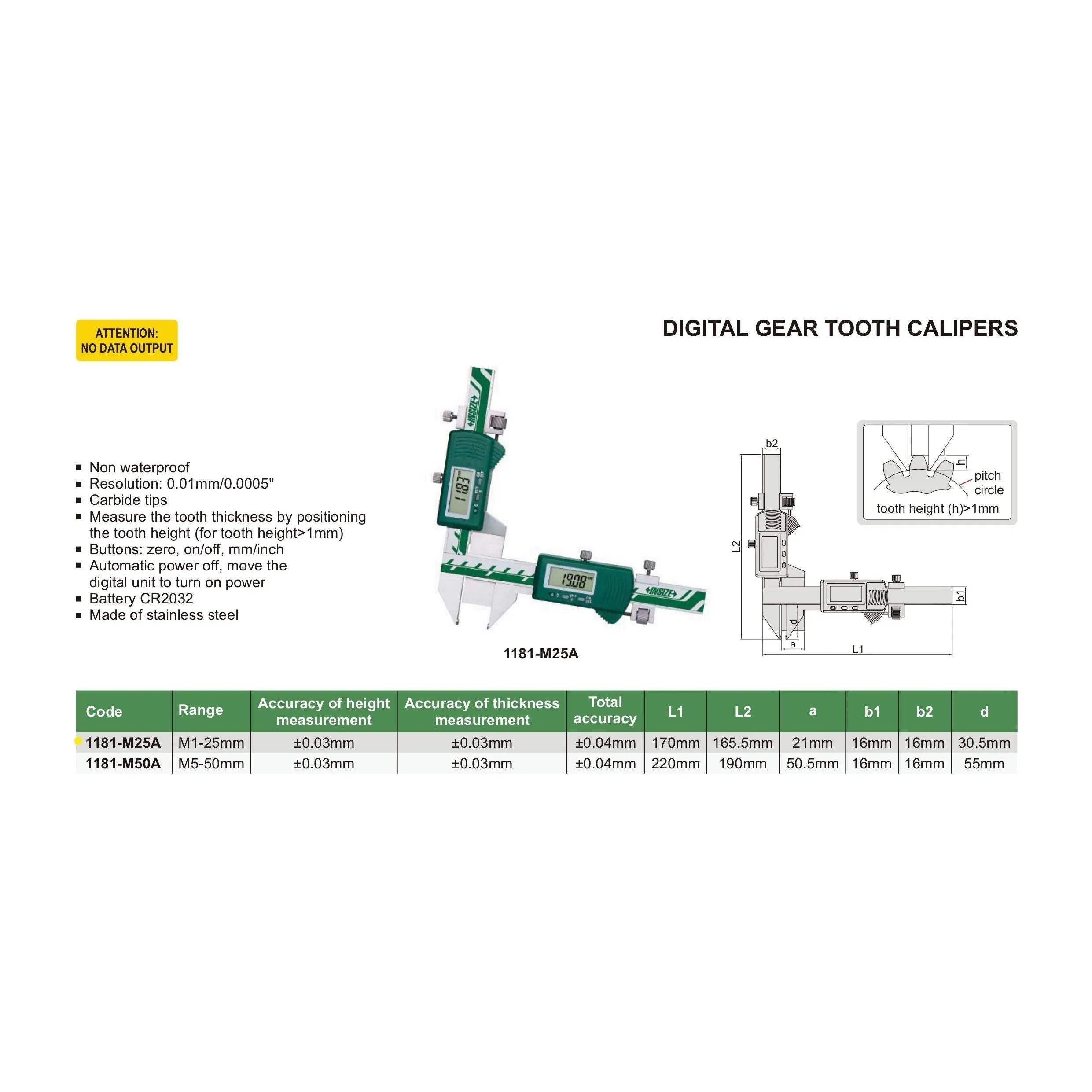

Specifications :

• Part no 1181-M25A
• Accuracy of height measurement: ±0.03mm
• Accuracy of thickness measurement: ±0.03mm
• Total accuracy: ±0.04mm
• Resolution: 0.01mm/0.0005"
• Range: M1-25mm

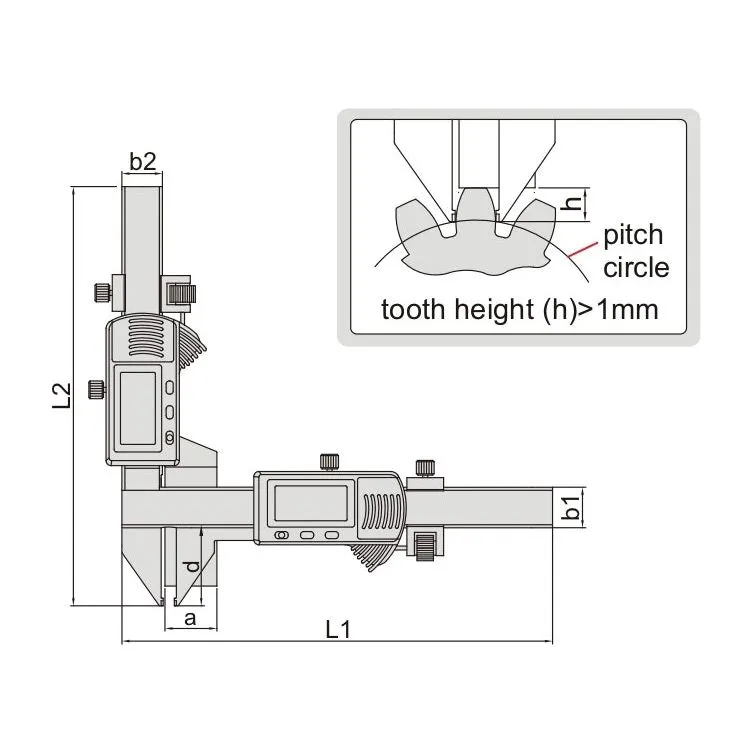

• L1: 170mm
• L2: 165.5mm
• A: 21mm
• B1: 16mm
• B2: 16mm
• D: 30.5mm
• Carbide tips
• Measure the tooth thickness by positioning the tooth height (for tooth height >1mm)
• Automatic power off
• Button function: on/off, zero, inch/mm, ABS, data preset.
• Battery LR44.
• Data output
• Made of stainless steel.

Well designed, durable high precision tools that are suitable for various measuring ranges. This precision instrument is perfect for measuring small distances and make them visible to the user. Easy to use and adjust digital gear tooth caliper to measure the thickness of gear teeth.
