Name: Hitec Micro & Mini Servos (Analog & Digital) HS-125MG
SKU: 240738

Hitec Micro & Mini Servos (Analog & Digital) HS-125MG

$ 39.99

$ 0.00

Save: $

Unavailable

Please select combo product attributes

The combo subtotal is $,SAVE$

Servos are supplied with UNIVERSAL connectors which are compatible with all name-brand systems.

Product Description

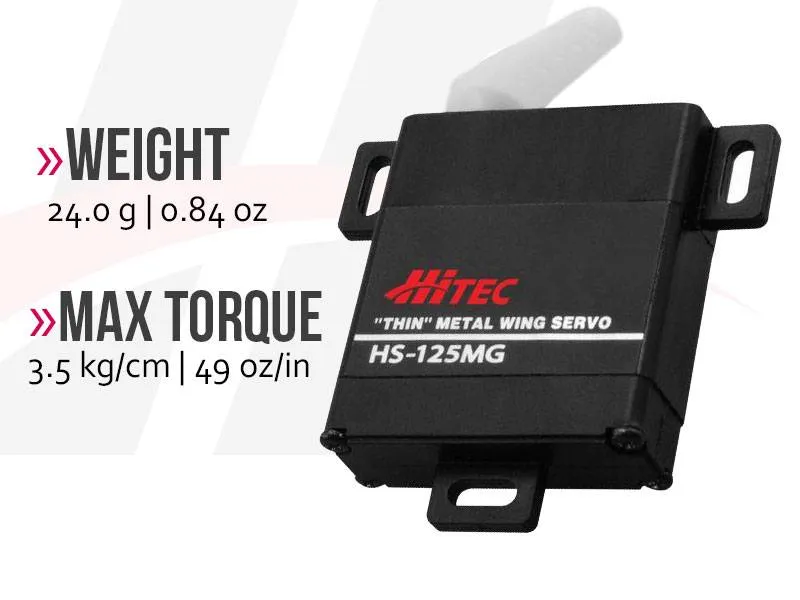

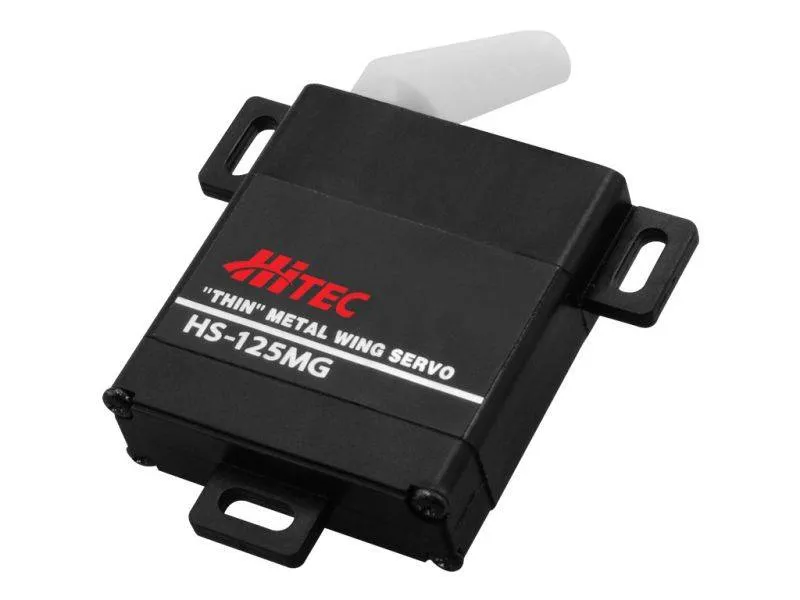

The analog HS-125MG is truly a super thin servo measuring 1.2” x 0.4” x 1.3”. Featuring Hitec’s MP Gear, the HS-125MG is very durable, and a perfect fit in the slim wings of today’s high performance gliders.

Features

Super Thin Wing Servo
Strong Metal Gears
Dual Ball Bearings
Perfectly Designed to Fit in Slim Aircraft and Glider Wings

Accessories

Metal Gear Set | Link |
Metal / Plastic 1st Gear Set | Link |
Plastic Case Set | Link |
Applicable Horns

HS-125MG Servo Specifications

Performance Specifications
Operating Voltage Range (Volts DC)	4.8V ~ 6.0V
Speed (Second @ 60°)	0.17 ~ 0.13
Maximum Torque Range oz. / in.	42 ~ 49
Maximum Torque Range kg. / cm.	3.0 ~ 3.5
Current Draw at Idle	8 mA
No Load Operating Current Draw	230 mA
Stall Current Draw	1,200 mA
Dead Band Width	1 µs

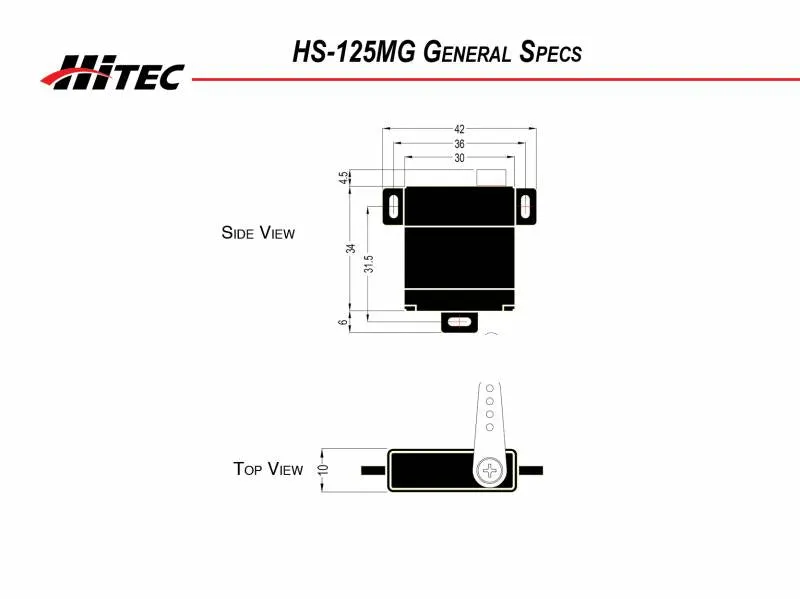

Physical Specifications
Dimensions (Inches)	1.18 x 0.39 x 1.33
Dimensions (Metric)	30.0 x 10.0 x 34.0
Weight (Ounces)	0.84
Weight (Gram)	24.0
Circuit Type	HT7003 Analog SMT
Motor Type	3 Pole Metal Brush Ferrite
Gear Material	Metal
Bearing Type	Dual Ball Bearing
Output Shaft (type / Ømm)	Micro 23
Case Material	Plastic
Dust / Water Resistance	N / A
Connector Gauge (AWG) / Strand Count	25 / 40
Radio Control Applications
Parkflyer	N / A
Sport Plane	42 - 50 oz.
Sailplane	3 Meter
3D Performance	42 - 50 oz.
Scale	N / A
Electric Helicopter	N / A
Gas Helicopter	N / A
On Road	N / A
Monster Truck	N / A
Buggies	N / A
Truggies	N / A
Short Course / Truck	N / A
Crawlers	N / A
Sail Boat	N / A
Power Boat	1/16th
