Servos are supplied with UNIVERSAL connectors which are compatible with all name-brand systems.
Product Description

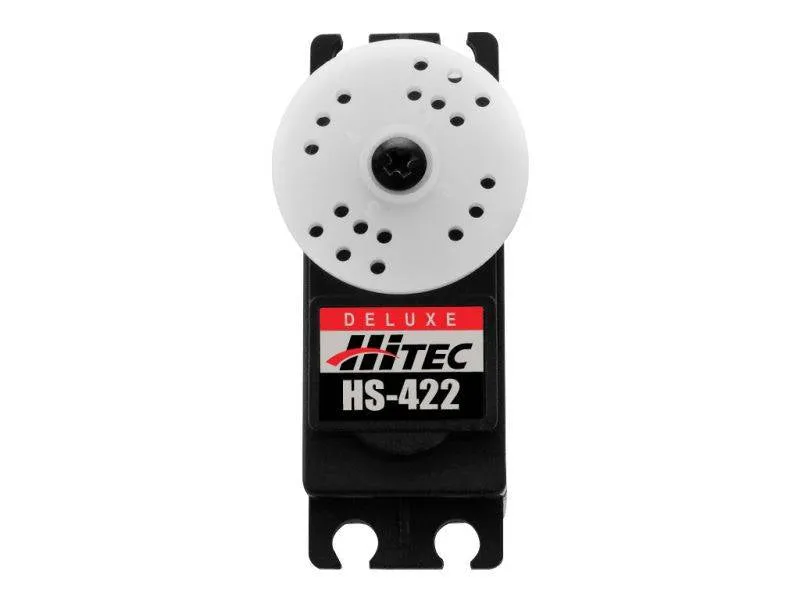

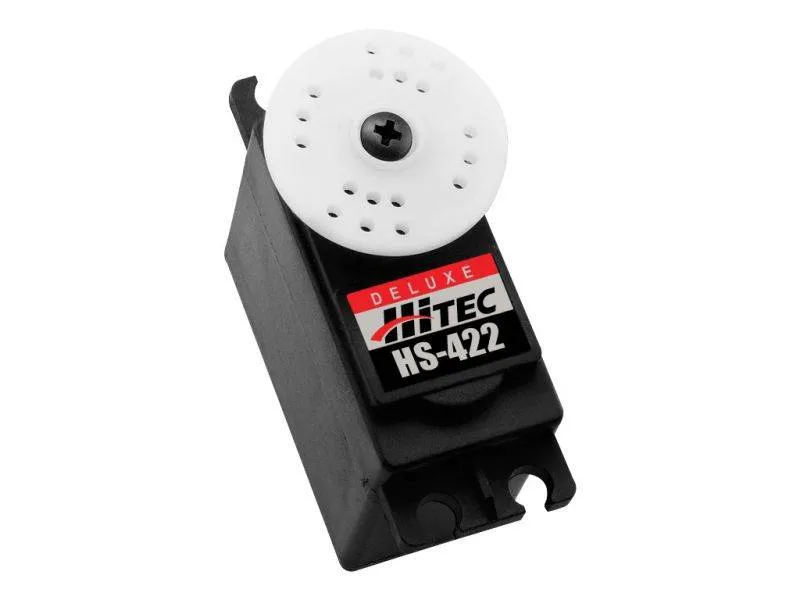

The HS-422 is one of the most durable and reliable servos Hitec has ever offered. With its dual iron-oilite bushings, high impact resin gear train and high performance circuitry, the HS-422 features excellent centering and resolution.
Features
- Durable and Dependable Construction
- Durable Resin Gear Train
- Oilite Bushing Supported Output Shaft
- High Performance Circuitry
Accessories
- Nylon Gear Set | Link |
- Plastic Case Set | Link |
- Applicable Horns
HS-422 Servo Specifications
| Performance Specifications | |
| Operating Voltage Range (Volts DC) | 4.8V ~ 6.0V |
| Speed (Second @ 60°) | 0.21 ~ 0.16 |

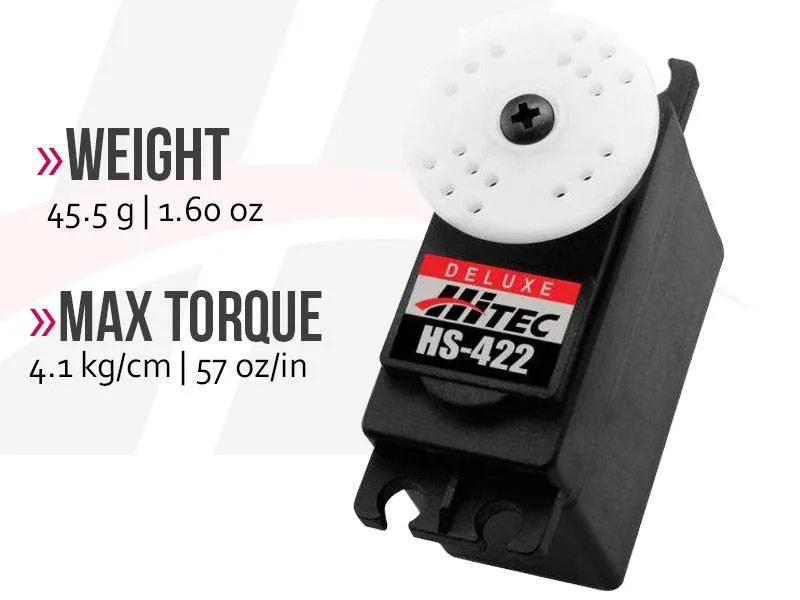

| Maximum Torque Range oz. / in. | 46 ~ 57 |
| Maximum Torque Range kg. / cm. | 3.3 ~ 4.1 |
| Current Draw at Idle | 8 mA |
| No Load Operating Current Draw | 150 mA |
| Stall Current Draw | 800 mA |
| Dead Band Width | 8 µs |
| Physical Specifications | |

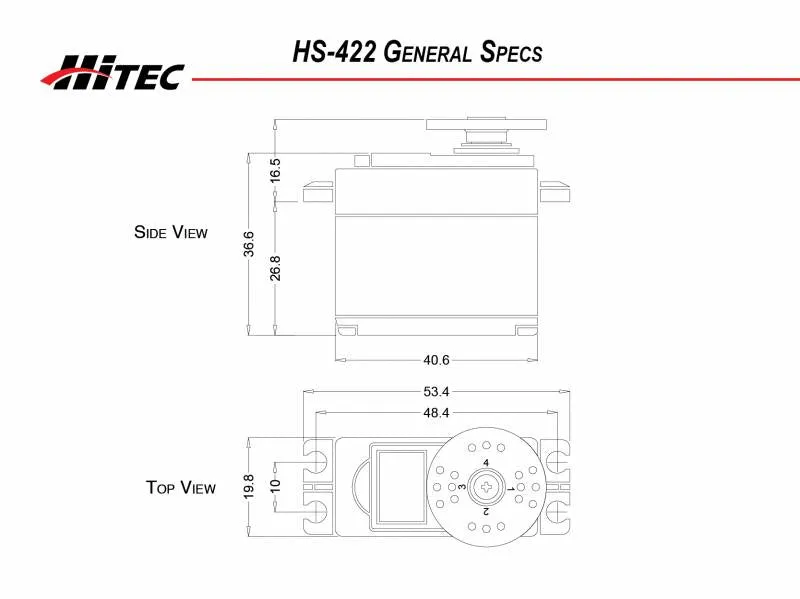

| Dimensions (Inches) | 1.59 x 0.77 x 1.44 |
| Dimensions (Metric) | 40.6 x 19.8 x 36.6 |
| Weight (Ounces) | 1.60 |
| Weight (Gram) | 45.5 |
| Circuit Type | HT7003 Analog SMT |
| Motor Type | 3 Pole Metal Brush Ferrite |
| Gear Material | Nylon |
| Bearing Type | Dual Oilite |
| Output Shaft (type / Ømm) | Standard 24 |
| Case Material | Plastic |
| Dust / Water Resistance | N / A |
| Connector Gauge (AWG) / Strand Count | 25 / 40 |
| Radio Control Applications | |
| Parkflyer | N / A |
| Sport Plane | 50 - 64 oz. |
| Sailplane | N / A |
| 3D Performance | N / A |
| Scale | 50 - 64 oz. |
| Electric Helicopter | N / A |
| Gas Helicopter | N / A |
| On Road | N / A |
| Monster Truck | N / A |
| Buggies | N / A |
| Truggies | N / A |
| Short Course / Truck | N / A |
| Crawlers | N / A |
| Sail Boat | < 1 meter |
| Power Boat | 1/10th |
