Servos are supplied with UNIVERSAL connectors which are compatible with all name-brand systems.
Product Description

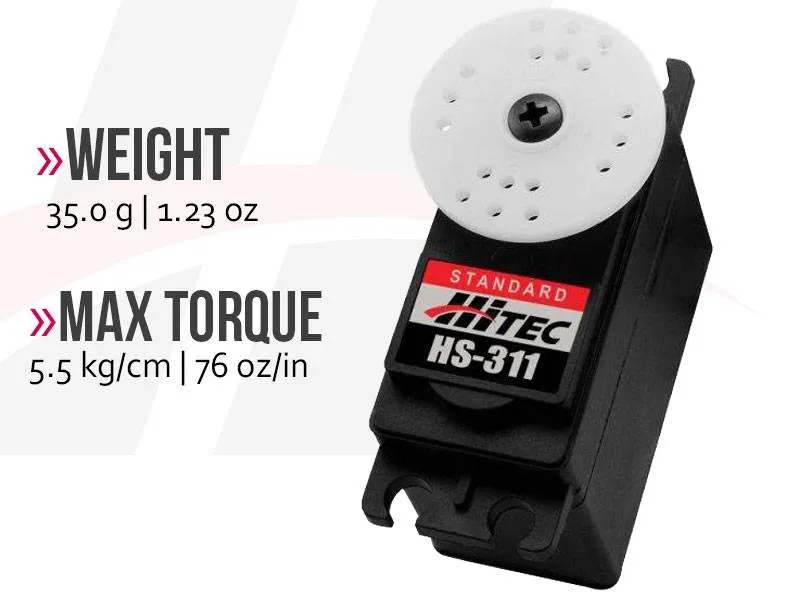

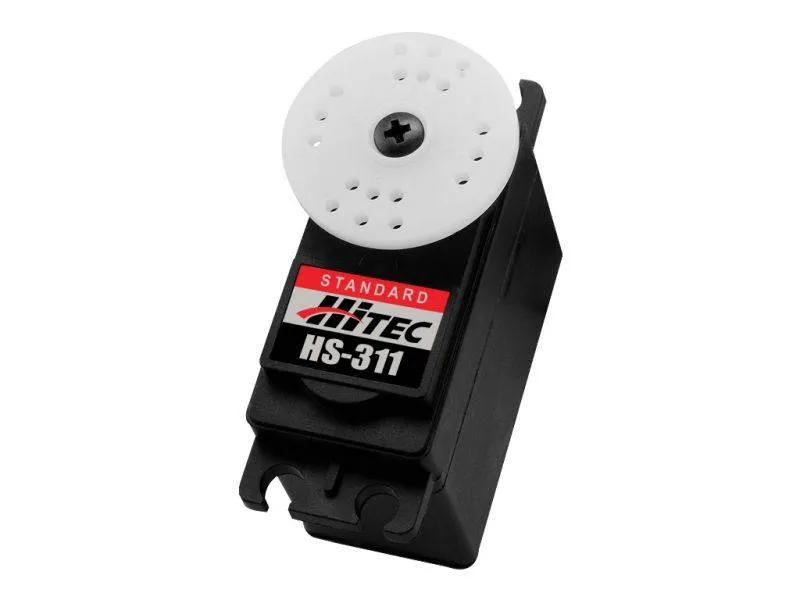

The HS-311 sport servo provides the novice modeler all the performance and reliability you would expect to find in a more expensive servo. Combined with precise resin gears and SMT circuitry, the HS-311 represents a remarkable value in today's R/C market.
Features
- Our Low Cost Standard Size Servo
- Reliable Three-Pole Ferrite Motor
- Durable Resin Gears
- Popular Selling Servo
Accessories
- Nylon Gear Set | Link |
- Plastic Case Set | Link |
- Applicable Horns
HS-311 Servo Specifications
| Performance Specifications | |
| Operating Voltage Range (Volts DC) | 4.8V ~ 6.0V |
| Speed (Second @ 60°) | 0.19 ~ 0.15 |
| Maximum Torque Range oz. / in. | 42 ~ 49 |
| Maximum Torque Range kg. / cm. | 3.0 ~ 3.5 |
| Current Draw at Idle | 7.7 mA |
| No Load Operating Current Draw | 180 mA |
| Stall Current Draw | 800 mA |
| Dead Band Width | 5 µs |
| Physical Specifications | |

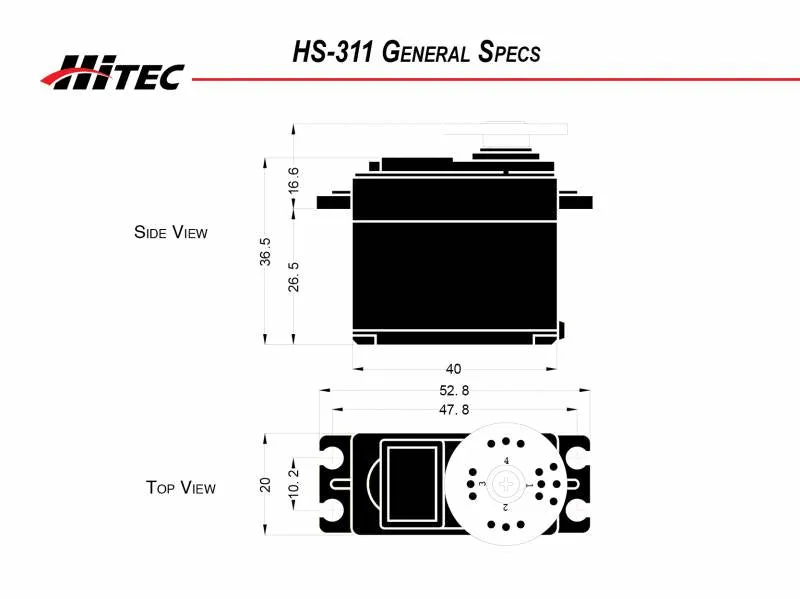

| Dimensions (Inches) | 1.57 x 0.78 x 1.43 |
| Dimensions (Metric) | 40.0 x 20.0 x 36.5 |
| Weight (Ounces) | 1.51 |
| Weight (Gram) | 43.0 |
| Circuit Type | HT7003 Analog SMT |
| Motor Type | 3 Pole Metal Brush Ferrite |
| Gear Material | Nylon |
| Bearing Type | None |
| Output Shaft (type / Ømm) | Standard 24 |
| Case Material | Plastic |
| Dust / Water Resistance | N / A |
| Connector Gauge (AWG) / Strand Count | 25 / 40 |
| Radio Control Applications | |
| Parkflyer | N / A |
| Sport Plane | 50 - 64 oz. |
| Sailplane | N / A |
| 3D Performance | N / A |
| Scale | 50 - 64 oz. |
| Electric Helicopter | N / A |
| Gas Helicopter | N / A |
| On Road | 1/8th |
| Monster Truck | 1/8th |
| Buggies | 1/8th |
| Truggies | 1/8th |
| Short Course / Truck | 1/8th |
| Crawlers | 1/8th |
| Sail Boat | < 1 meter |
| Power Boat | 1/10th |
