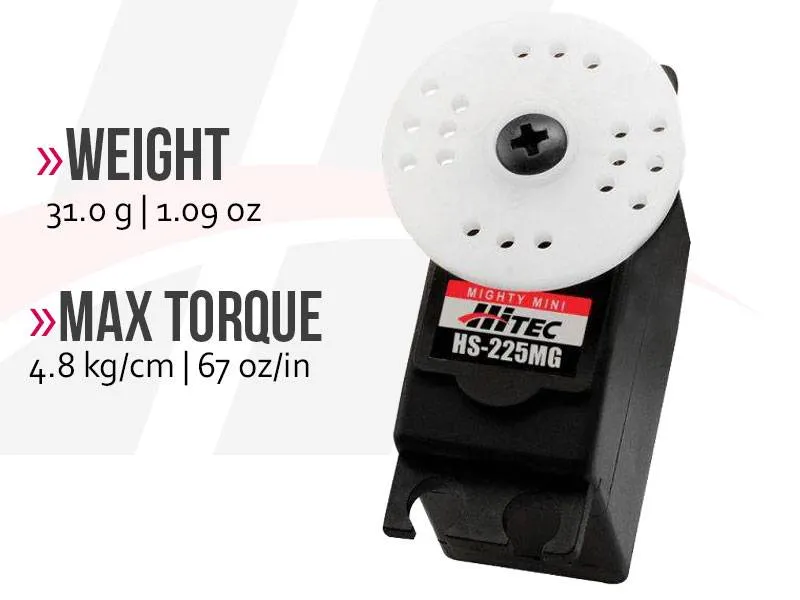

Product Description: The HS-225MG is a high performance mini servo with full size performance in a mini package. This servo is built with state-of-the-art SMT technology and features durable metal gears and a top ball bearing. It is ideal for applications that require a small, lightweight, high speed, and high torque servo.
Features:
- Full Size Performance in a Mini Package
- Durable Metal Gears
- Top Ball Bearings
- Ideal for Small, Lightweight, High Speed, High Torque Applications
Accessories:
- Metal Gear Set | Link |
- Metal/Plastic 1st Gear Set | Link |
- Plastic Case Set | Link |
- Applicable Horns
HS-225MG Servo Specifications: Performance Specifications:
- Operating Voltage Range (Volts DC): 4.8V ~ 6.0V
- Speed (Second @ 60°): 0.14 ~ 0.11
- Maximum Torque Range oz. / in.: 54 ~ 67
- Maximum Torque Range kg. / cm.: 3.9 ~ 4.8
- Current Draw at Idle: 8 mA
- No Load Operating Current Draw: 300 mA
- Stall Current Draw: 1,200 mA
- Dead Band Width: 8 µs
Physical Specifications:
- Dimensions (Inches): 1.27 x 0.66 x 1.22
- Dimensions (Metric): 32.4 x 16.8 x 31.0
- Weight (Ounces): 1.09
- Weight (Gram): 31.0
- Circuit Type: HT7003 Analog SMT
- Motor Type: 3 Pole Metal Brush Ferrite
- Gear Material: Metal
- Bearing Type: Top Ball Bearing
- Output Shaft (type / Ømm): Standard 24
- Case Material: Plastic
- Dust / Water Resistance: N / A
- Connector Gauge (AWG) / Strand Count: 25 / 40
Radio Control Applications:
- Parkflyer: N / A
- Sport Plane: 50 - 64 oz.
- Sailplane: 3 meter
- 3D Performance: 50 - 64 oz.
- Scale: N / A
- Electric Helicopter: 500mm
- Gas Helicopter: 50-59 Class
- On Road: 1/12th
- Monster Truck: N / A
- Buggies: 1/12th
- Truggies: N / A
- Short Course / Truck: N / A
- Crawlers: 1/8th
- Sail Boat: < 1 meter
- Power Boat: 1/16th
