Next generation monolithic membrane

Why Partel EXOPERM MONO 150?

EXOPERM MONO 150 provides enhanced protection of the building structure. It is strong, durable, incredibly vapour open with an Sd value of 0.07m, and boasts market-leading tensile strengths and nail tear resistance. The Monolithic layer creates a complete wind tight, waterproof, breathable membrane that expels any water/humidity.

Highly breathable membrane with a low Sd value 0.07 m
Class W1 resistance to water penetration
Optimal UV and temperature resistance
Resistant to driving rain and wind
Windtight, but diffusion open
Airtight System, featuring an air permeance value of <0.001m3/(m2h)
Excellent ageing resistance due to the Monolithic Technology
Helps to prevent structural damage in any types of buildings

Technical Data

WEIGHT	EN 1849-2	150 G/M²
SD-VALUE M	EN ISO 12572-C	0.07 M
WATER RESISTANCE	EN 1928	W1 (BEFORE & AFTER AGEING)
TENSILE STRENGTH MD/CD	EN 12311-1	255 / 145 N / 50mm
NAIL TEAR RESISTANCE MD / CD*	EN 12310-1	130 / 160 N
TEMPERATURE RESISTANCE		-40°C TO 80°C
UV RESISTANCE	Wall Roof	6 months 4 months

*MD = longitudinal CD = transversal

Application

Suitable for:

Facades with closed joints

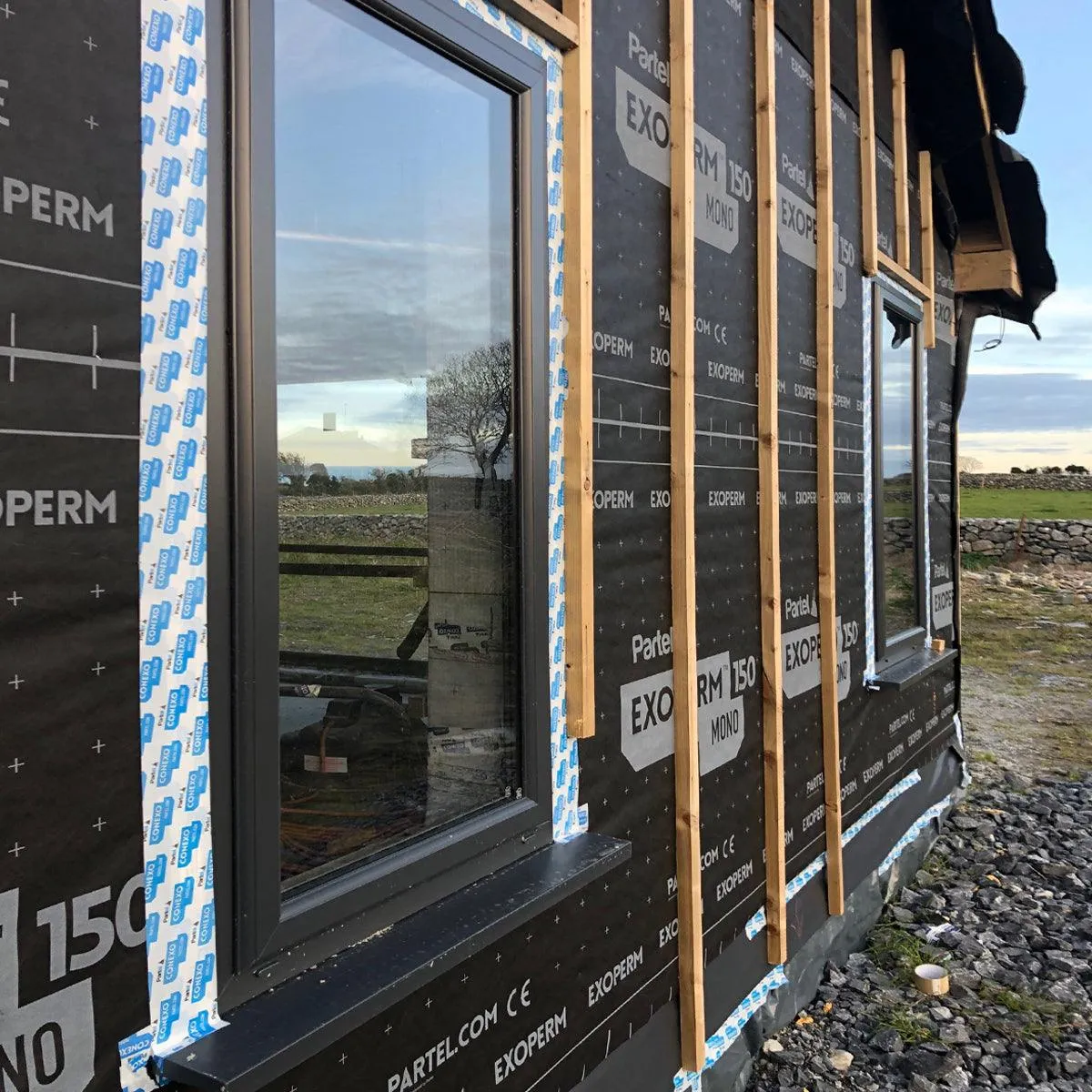

Timber and steel framed constructions

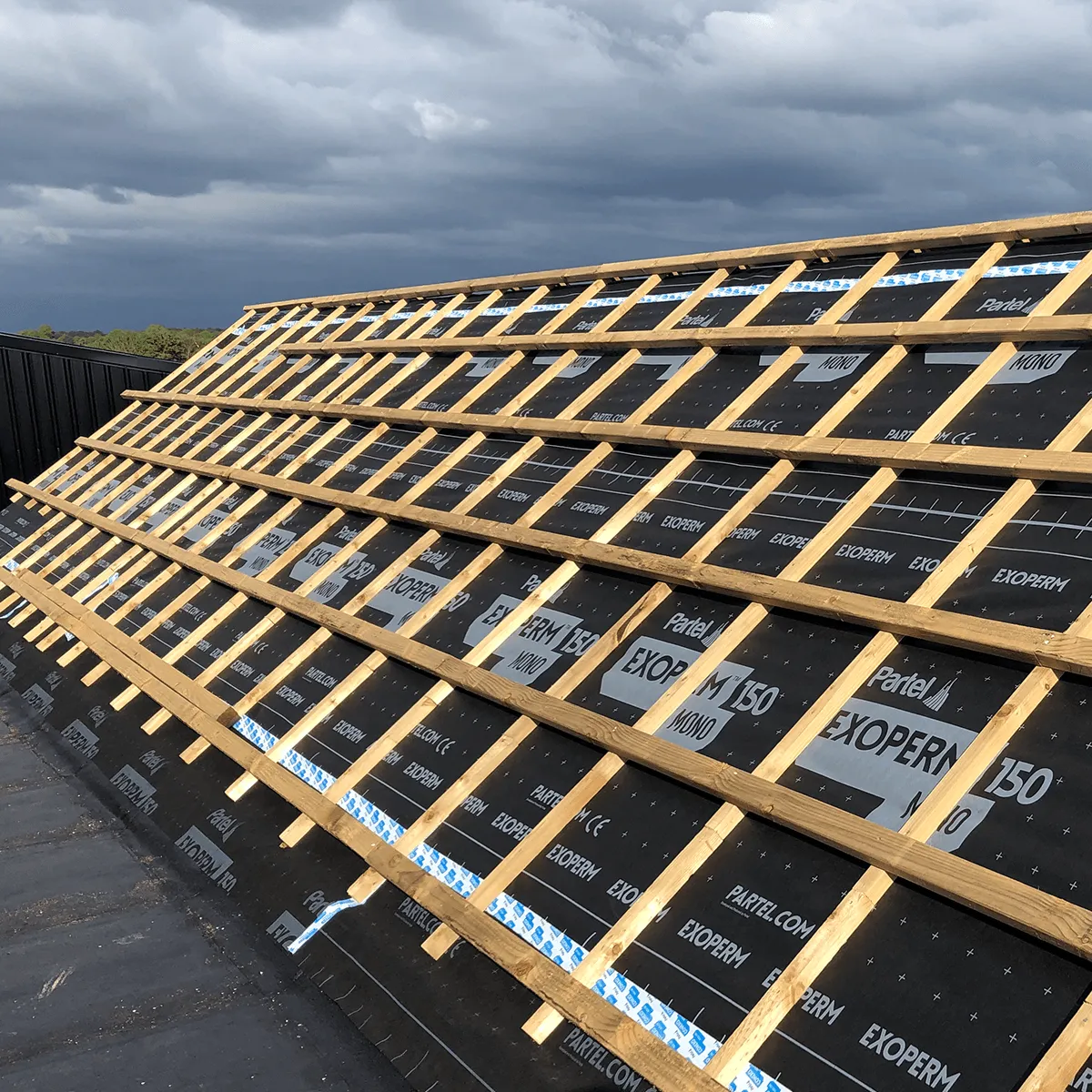

Warm, cold and hybrid roof applications
Pitched or flat roofs
Sarking boards
All insulation types

Monolithic Technology

EXOPERM MONO 150 is a 3-Ply sarking, roof underlay and wind barrier with next generation monolithic functional layer.

The monolithic functional layer provides enhanced protection for the building envelope:

transports vapour to outside
is vapour open whilst having excellent waterproofing properties
creates a complete wind tight, waterproof membrane that actively expels out any water/humidity unlike most micro-porous membranes that rely on small pores (which have the tendency to block)
