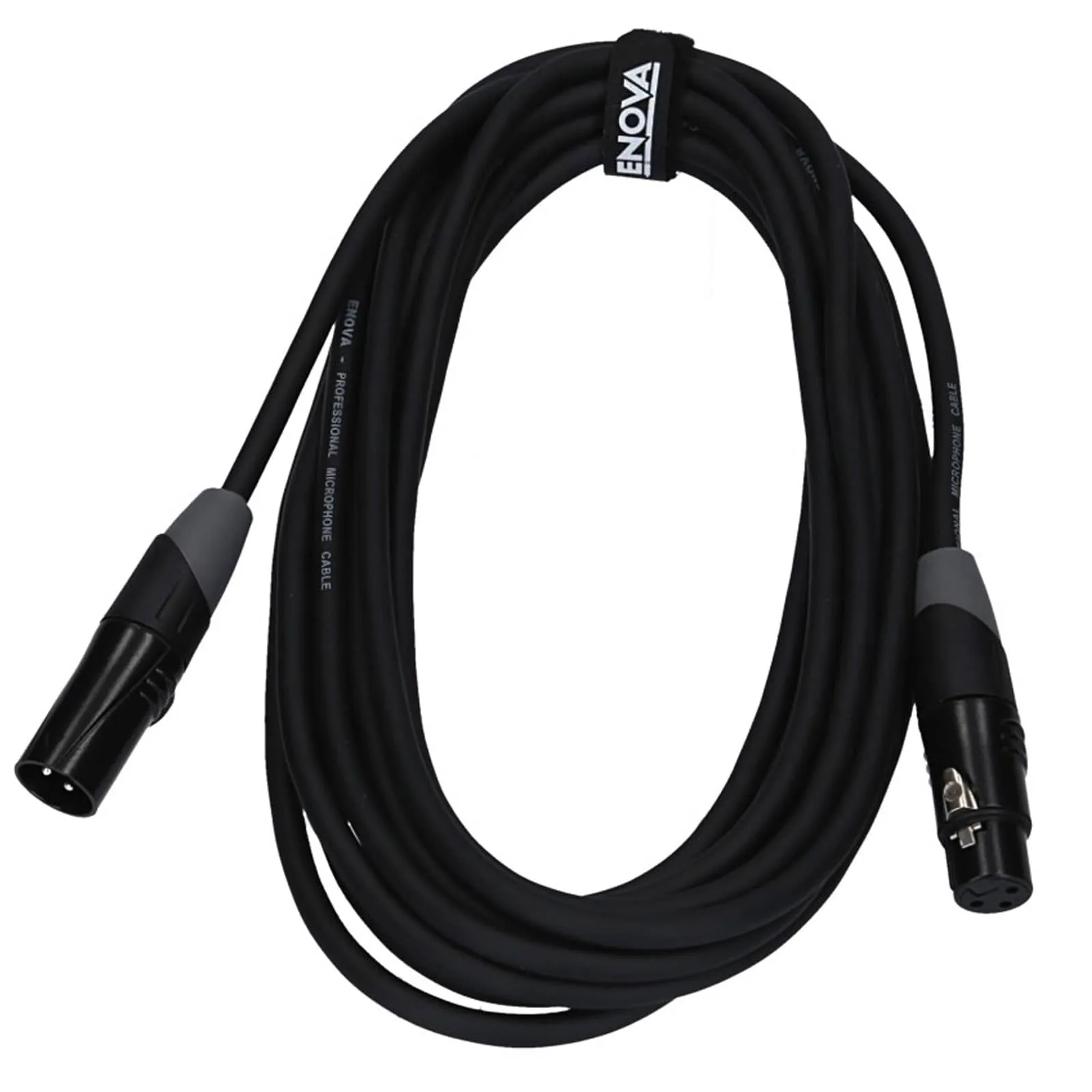

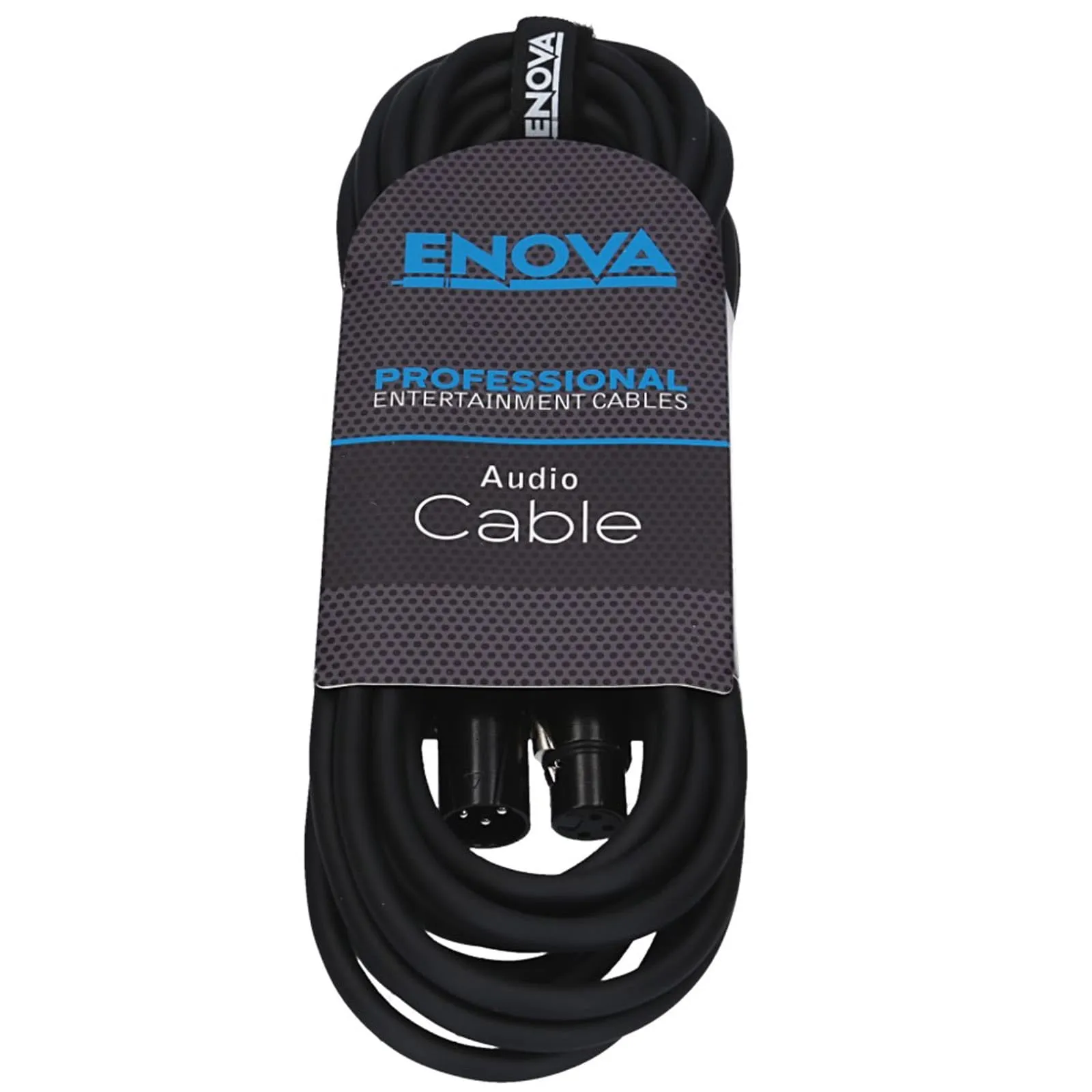

EC-A1-XLFM-5 Specifications

Connector side A: ENOVA XLR female 3 pol
Connector side B: ENOVA XLR male 3 pol
Cable length: 5 meters

Technical information:

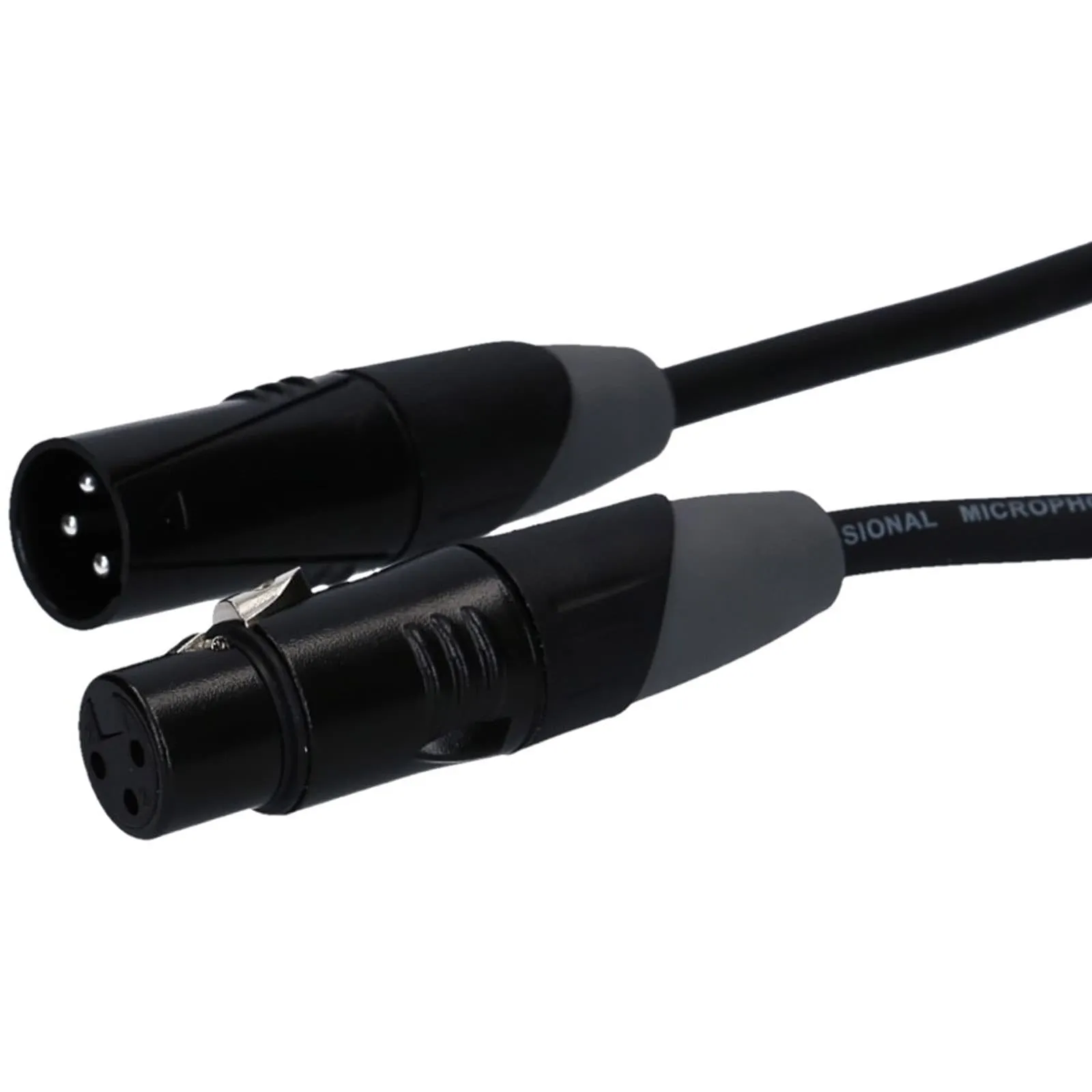

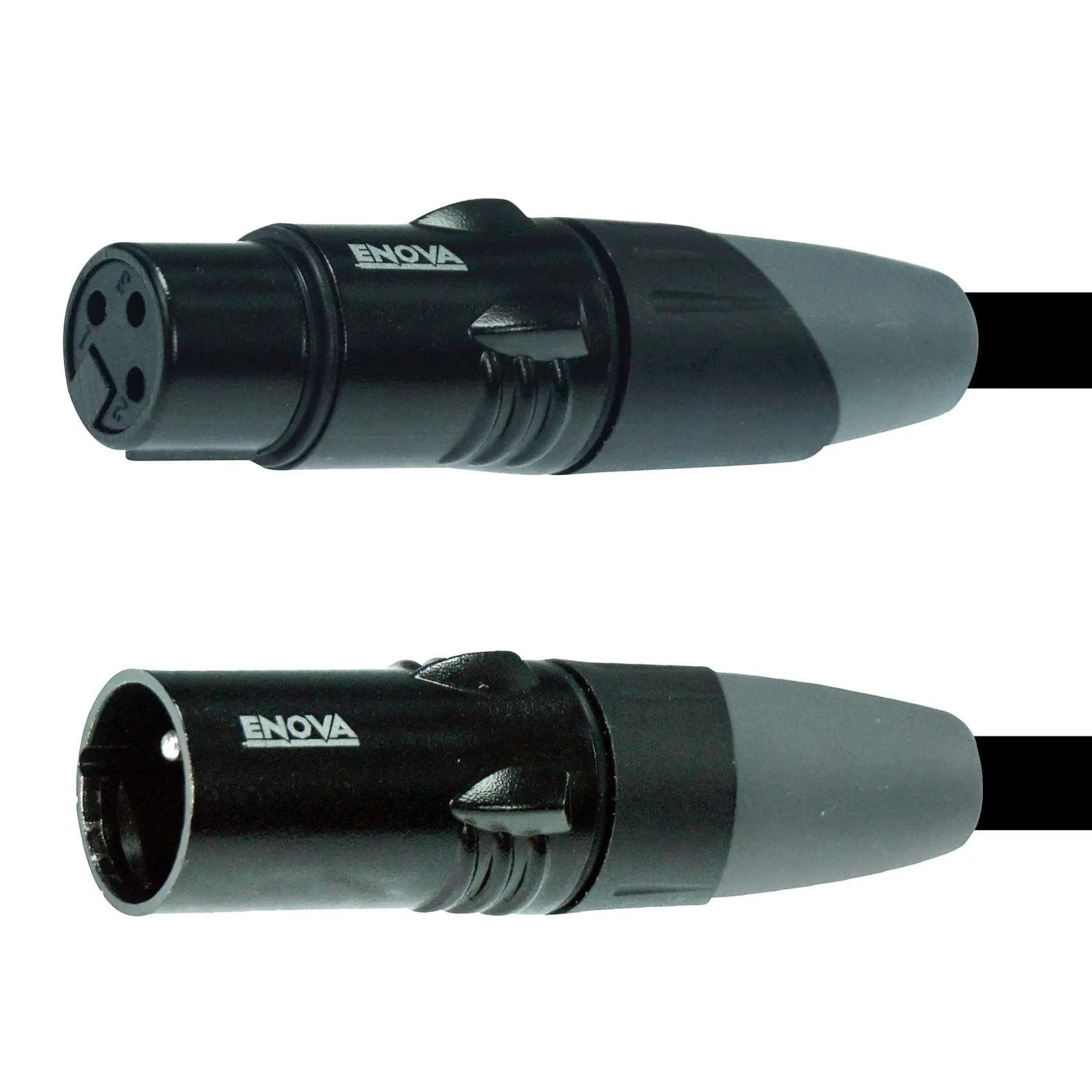

High-quality ENOVA XLR connectors made of metal with strain relief and a cable kink protection boot for a clean cable outlet.
Professional, assembled microphone cables with additional insulation over each conductor at the solder contact. The hand-made products are delivered with a 100% functional check.
The cable is designed for symmetrical audio connections for analog and digital AES / EBU signals suitable up to 200 m.
The cable diameter is 6.5 mm. The outer jacket is flexible and robust and black.
The conductor cross-section is 2 x 0.22 mm² (AWG 24 with 7x 0.20 mm strands) The conductors were produced with high quality OFC (Oxygen Free Copper) copper cables.
The conductor insulation is made of FPE material and is marked in blue and red. Flexible PolyEster (FPE) is a high-tech material that combines various properties such as strength, flexibility and temperature resistance in one material.
The microphone cable is shielded by a spiral shield.
The ENOVA DMX cable is suitable as a flexible and mobile activity cable.
Cond. D.C.R. Ohm / 1km <80
Shild D.C.R Ohm / 1km <30
Nom cap (pF / m) between conductors 52
Working temperature minus 20 ° C to plus 60 ° C.
