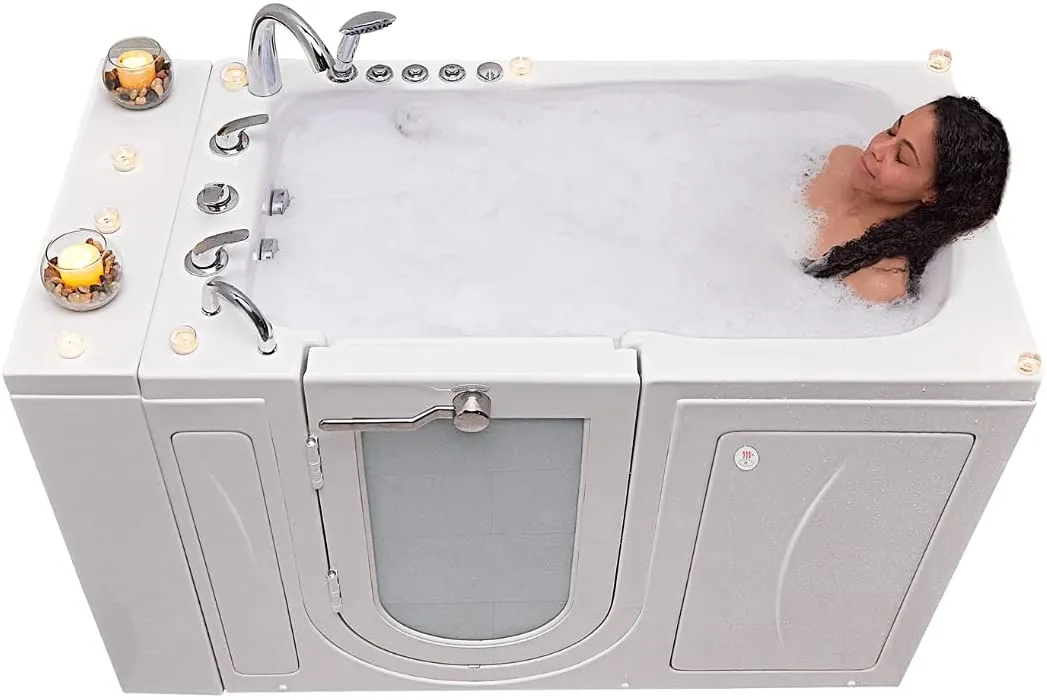

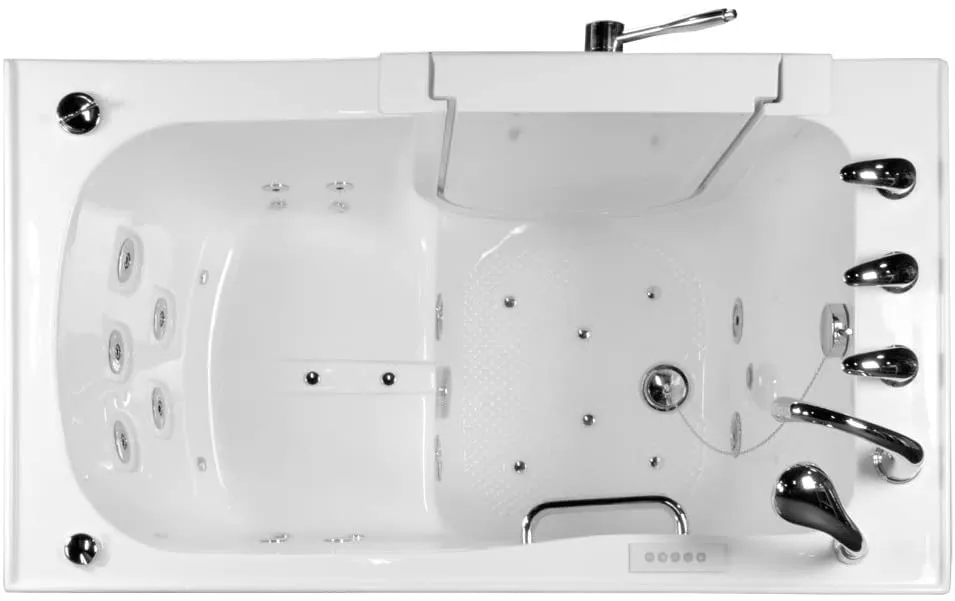

Name: Ella's Bubbles OA3052DH-HB-L-D Capri Air and Hydro Massage Acrylic Walk-In Bathtubs, Outward Swing Door, Ella 5pc. Fast-Fill Faucet, Digital Control, Heated Seat, Left 2" Drain, 30"x 52", White
SKU: 184472

The Ella Capri is a common sized walk in bathtub that is great for the average bather. It comes standard with a textured slip resistant floor and an outward swing door with a low step threshold for easy access, an anti-scald thermostatic control valve. Equipped with a 2 in. dual drain, overflow and stainless steel operated openers, instead of one 1-1/2 in. bathtub drain, for faster and reliable drainage. The dial-style drain opener has an emergency pull up chain attached to it. Our Ella acrylic outward swing door walk in tubs sport stylish and durable doors that offer easy access. The door material is made of PC, which is a strong plastic that has high impact resistance. This makes it extra durable against the heavy water pressure. Each door comes with 3-latches to resist the water pressure pushing on the door and a waterproof seal. These combine to make a leak proof door that makes for peace of mind. Ella acrylic walk in baths are constructed of the highest grade cast white acrylic, with an easy to clean gloss finish that is reinforced with fiberglass. The shell is supported by a stainless-steel frame for durability during installation. The supporting frame allows for simple above the floor drain installation and convenient access to the underside of the tub. The Ella Capri Product Line of Walk in Baths offers many Therapeutic Massage options to choose; Dual, Whirlpool, Air, Micro Bubble, Heated Seat and Backrest. Push Control or Digital Control is also an option.

Size: 30 in. wide x 42 in. tall x 52 in. long
17 in. tall ADA compliant standard size seat

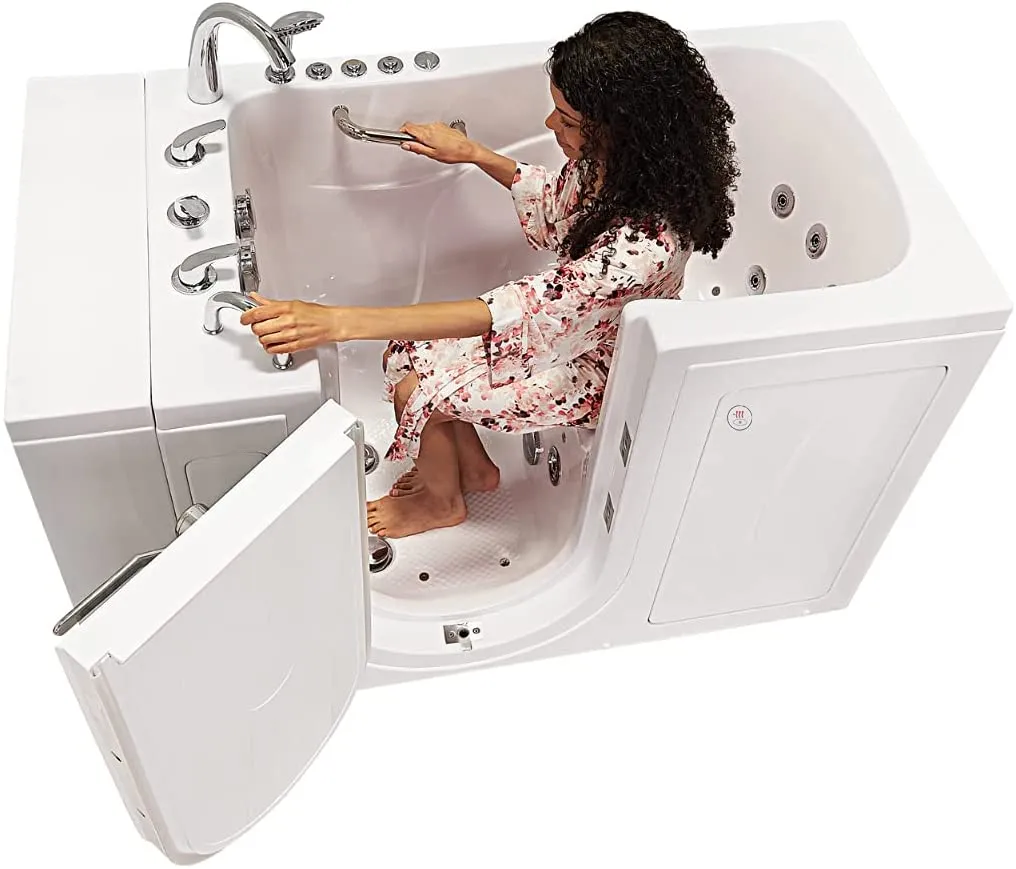

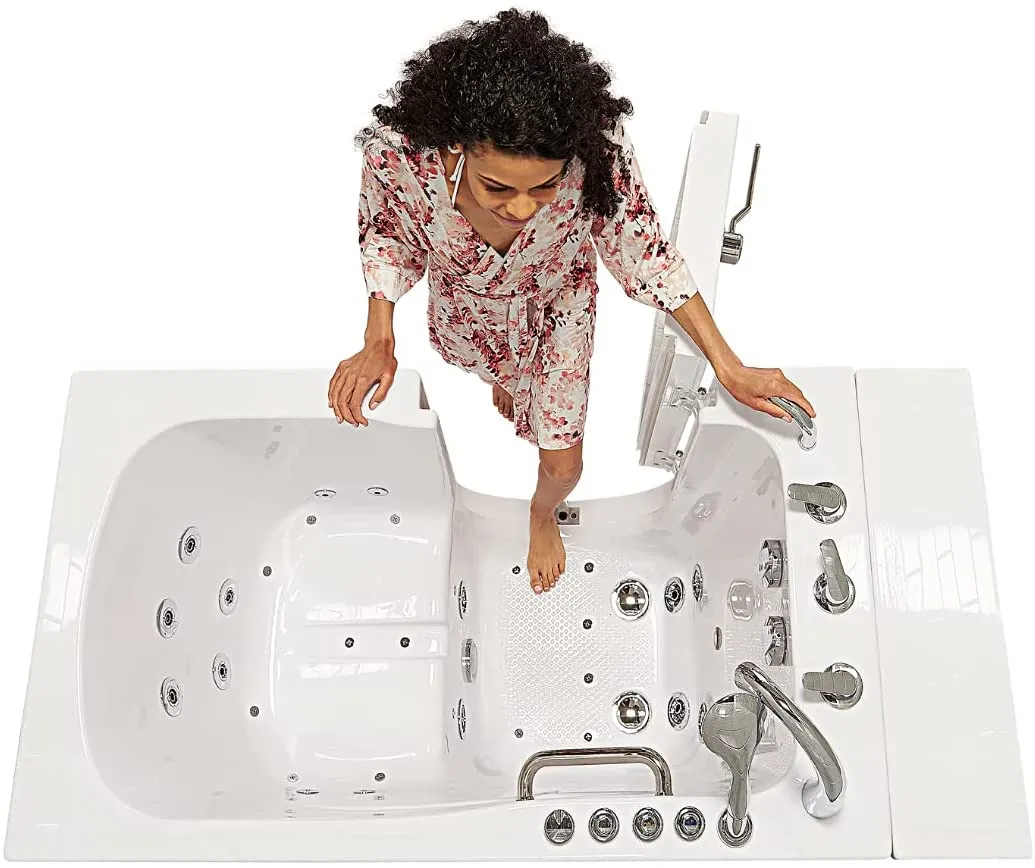

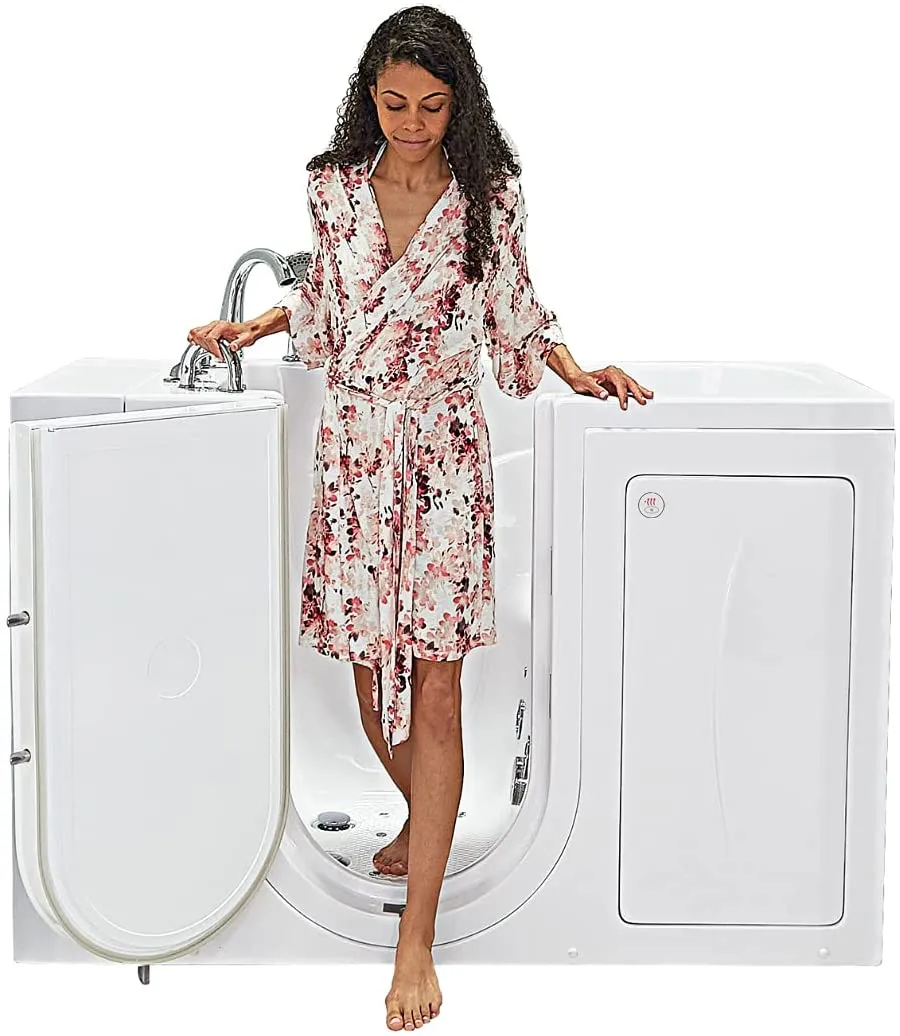

Low threshold 7 in. step and textured slip resistant floor
Wall and deck mounted stainless steel safety grab bar in plated chrome finish

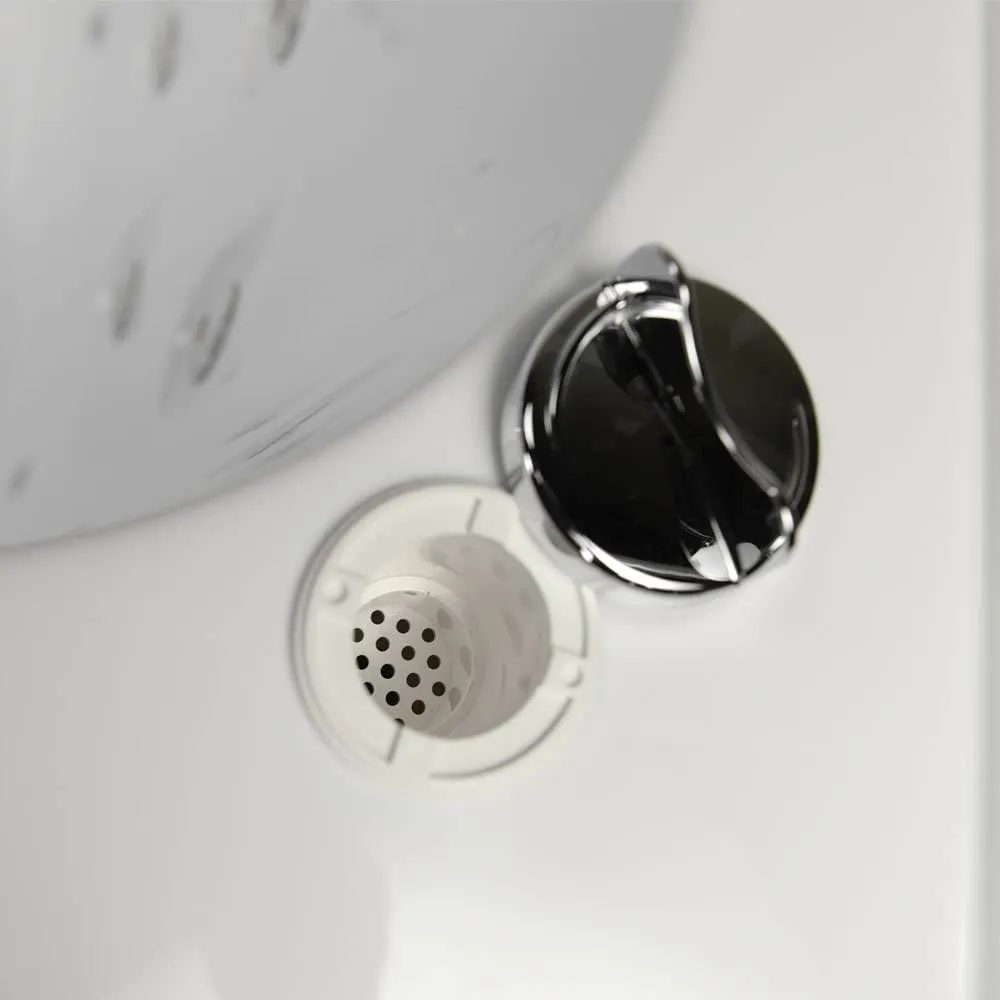

Two x 2 in. floor drains with 2-overflows and stainless steel cable operated openers with extension handles
Seat: 20-3/4 in. W x 17 in. H x 14-1/4 in. L
3-front and 1-end removable/reversible access panels, extension panel to fit 60 in. opening

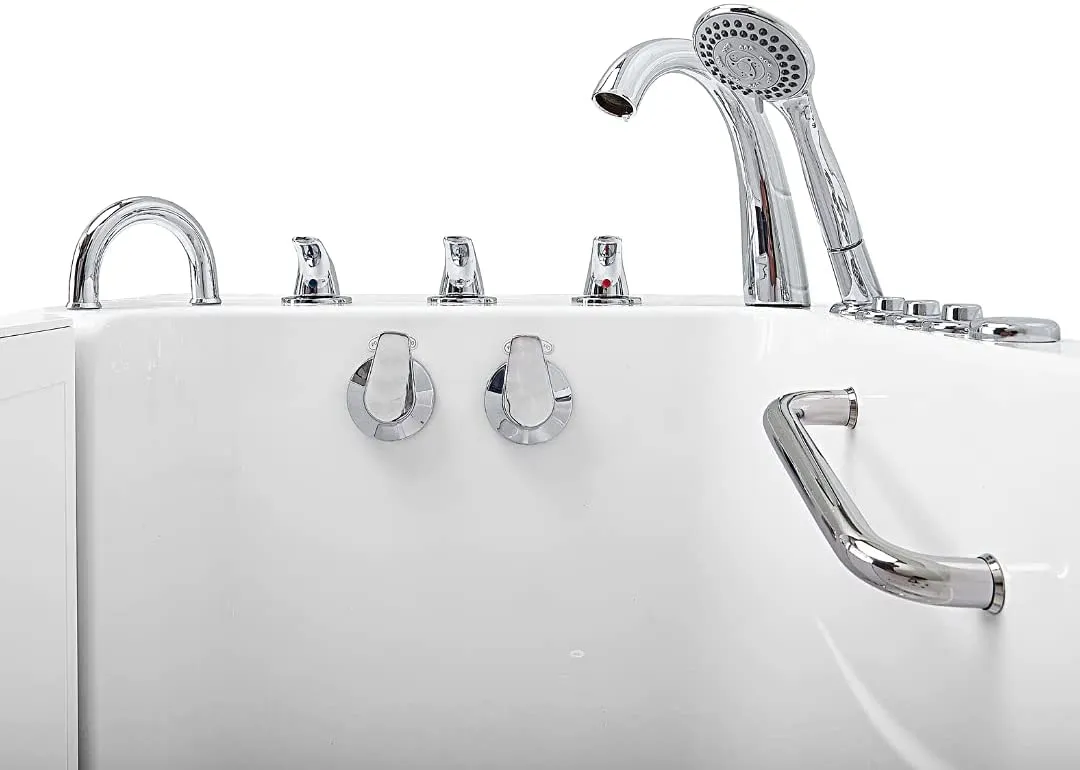

5-piece fast fill Huntington brass roman faucet set with chrome finish 18 GPM (average) @ 60 PSI, designer spout, pull- out hand held shower with 5 ft. retractable stainless steel hose
Approx. fill time: /- 14 minutes (unoccupied bathtub) based on in-house water pressure, approx. drain time: /- 2 minutes (unoccupied bathtub) at ideal home plumbing conditions

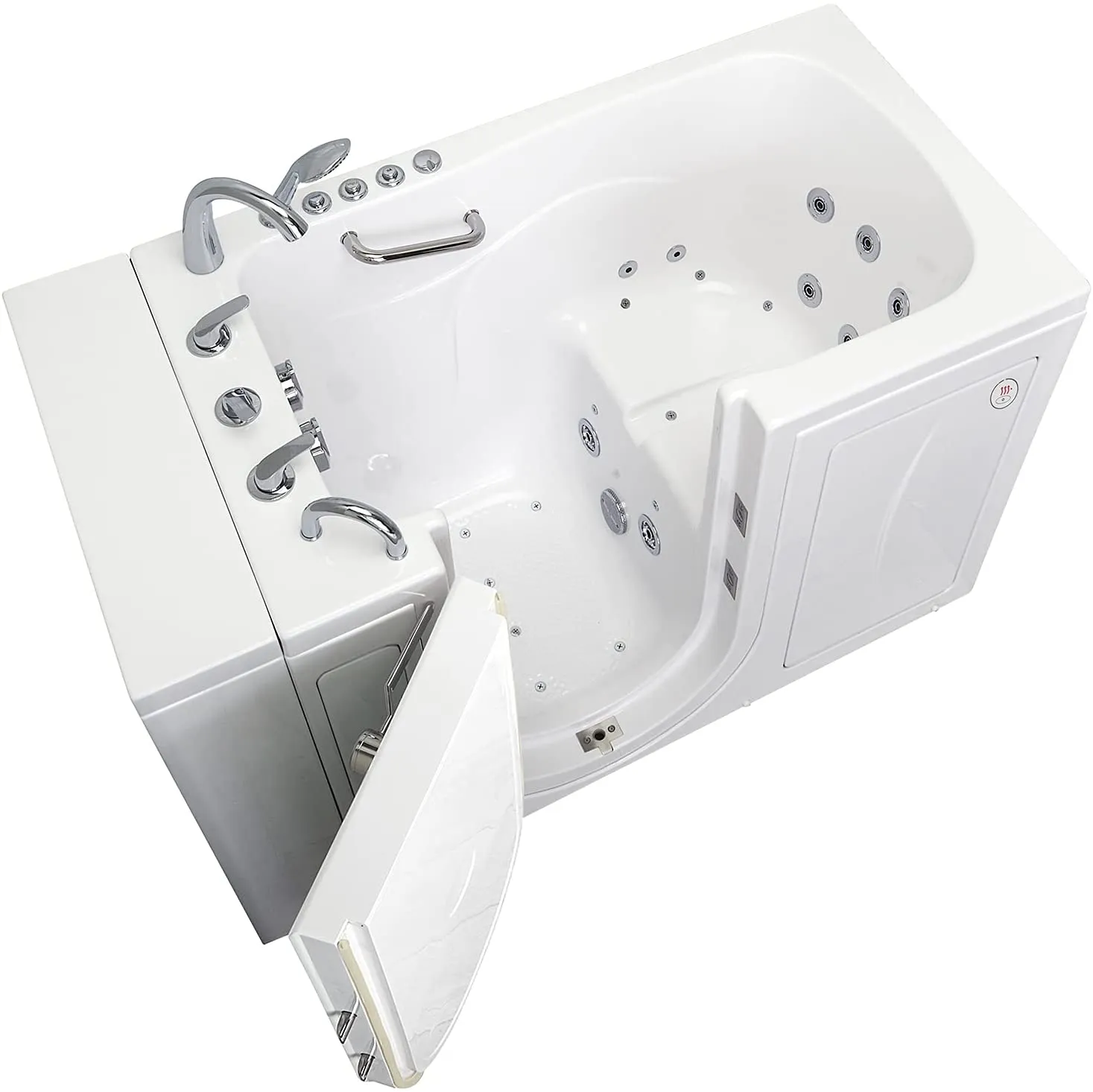

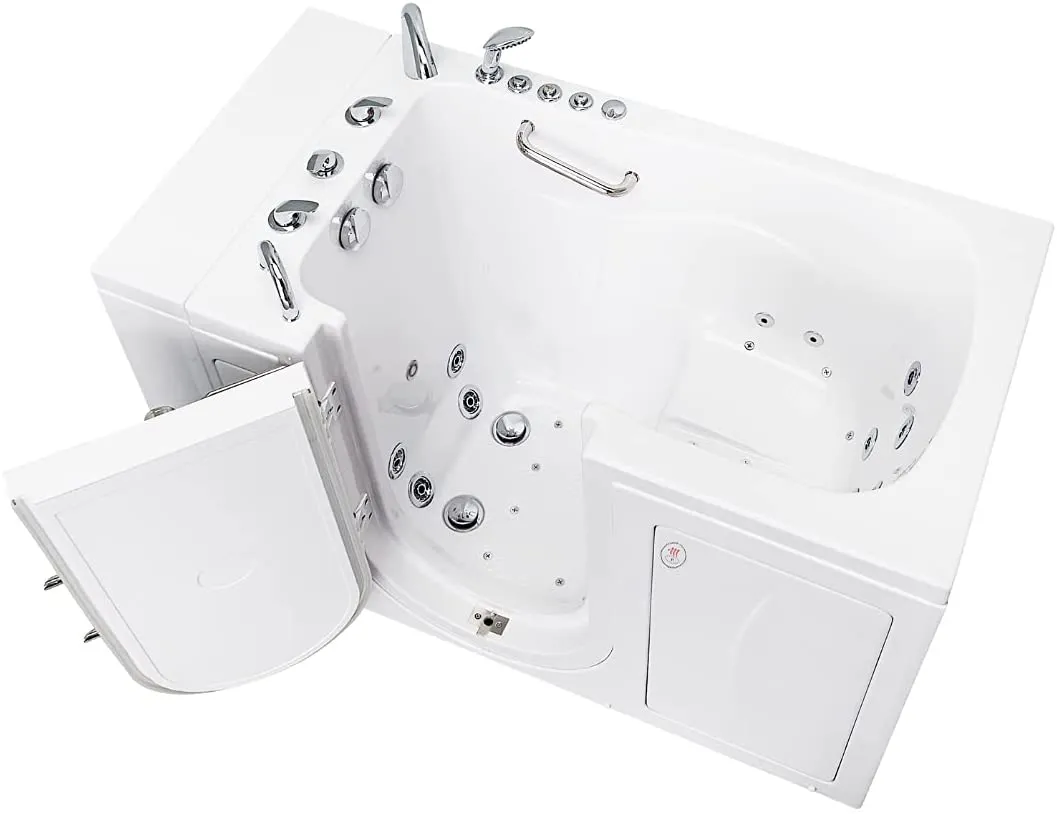

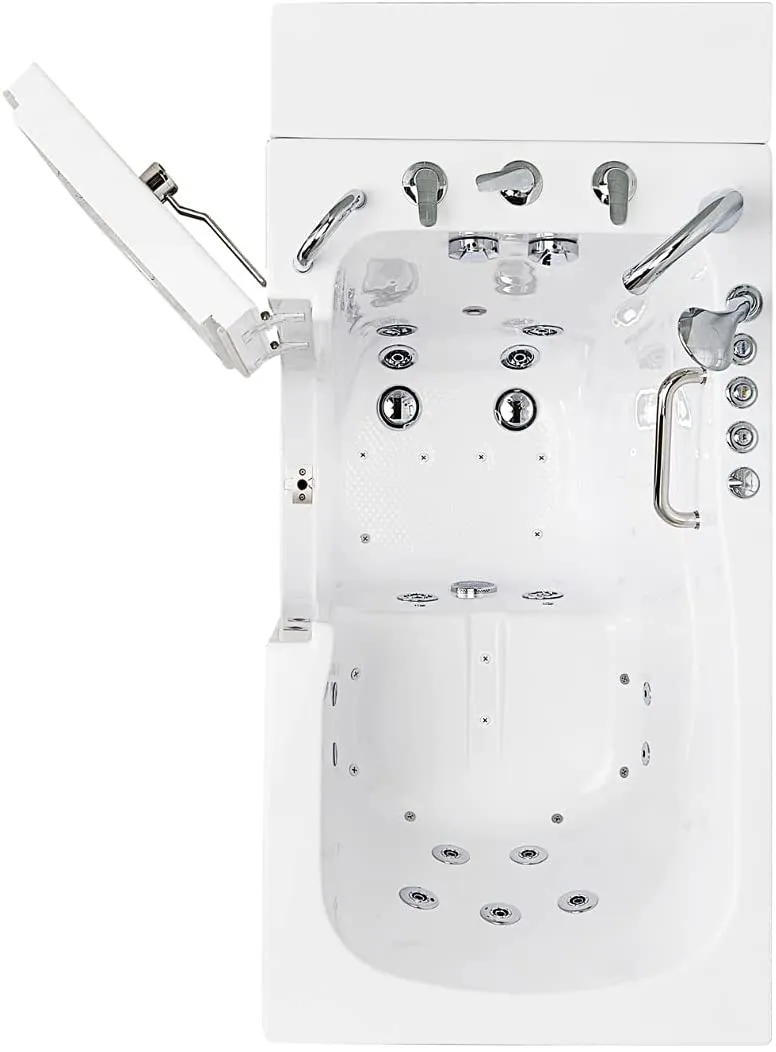

Hydro massage system: 9-adjustable and 6-fixed hydro jets, hydro massage air flow intensity control, 5 Amp pump and In-line water heater (650-Watt)
Air massage system: 16-therapeutic air massage jets with backflow valve, variable speed pump with auto purge, 4.5 Amp
Heated seat and backrest

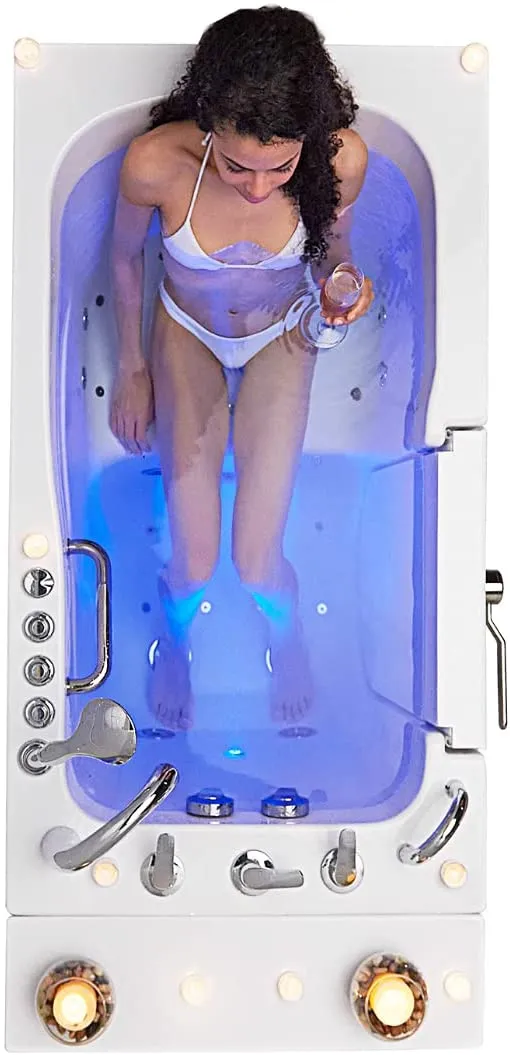

Digital control: air massage, hydro massage (Ozone), LED chromatherapy

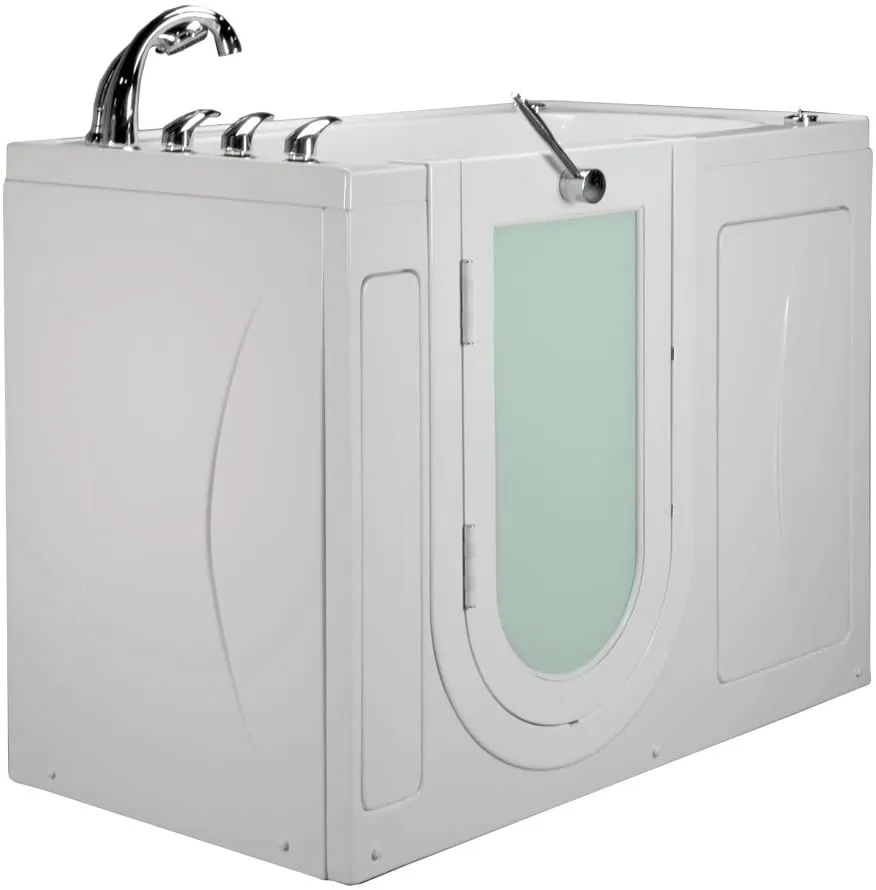

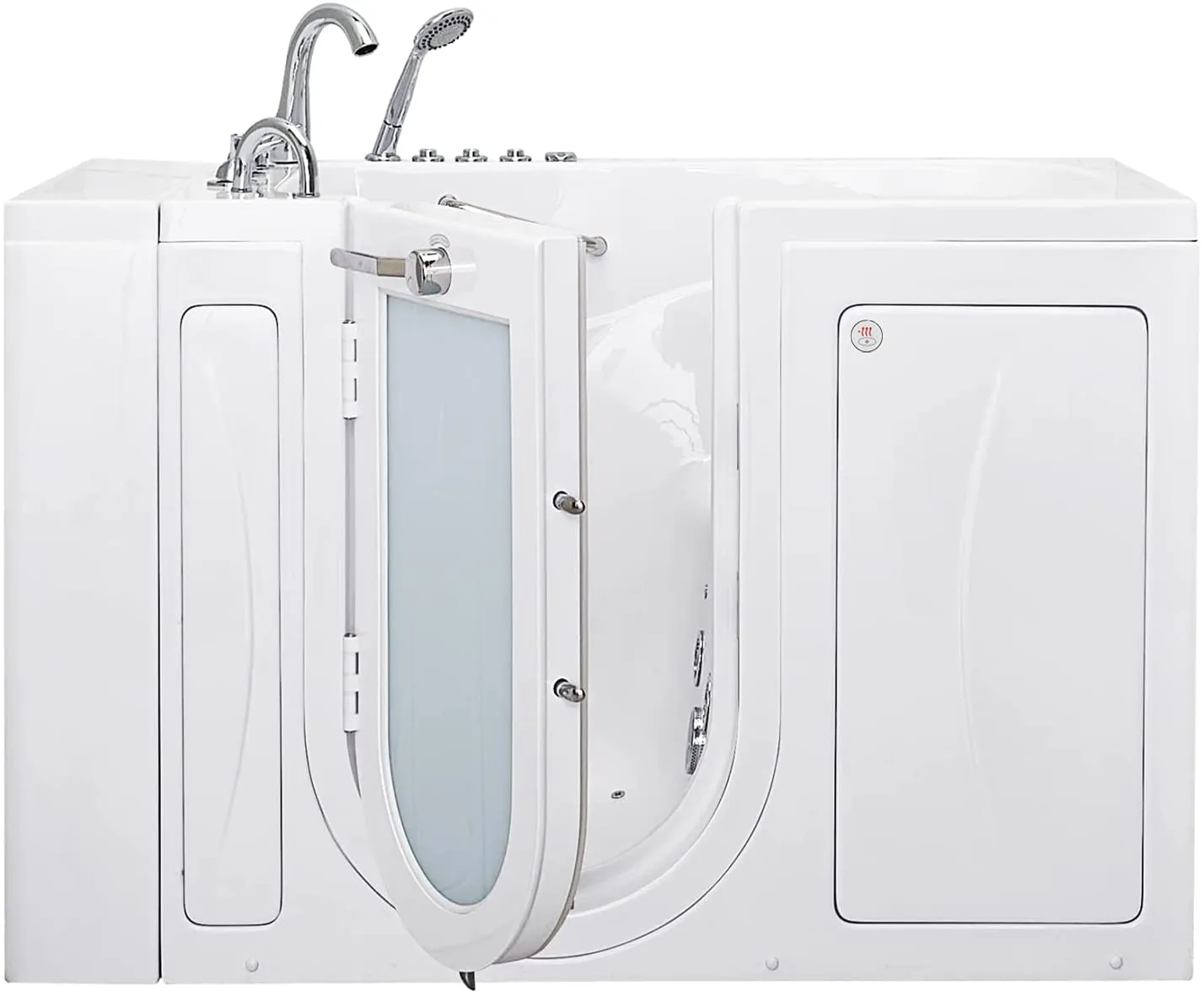

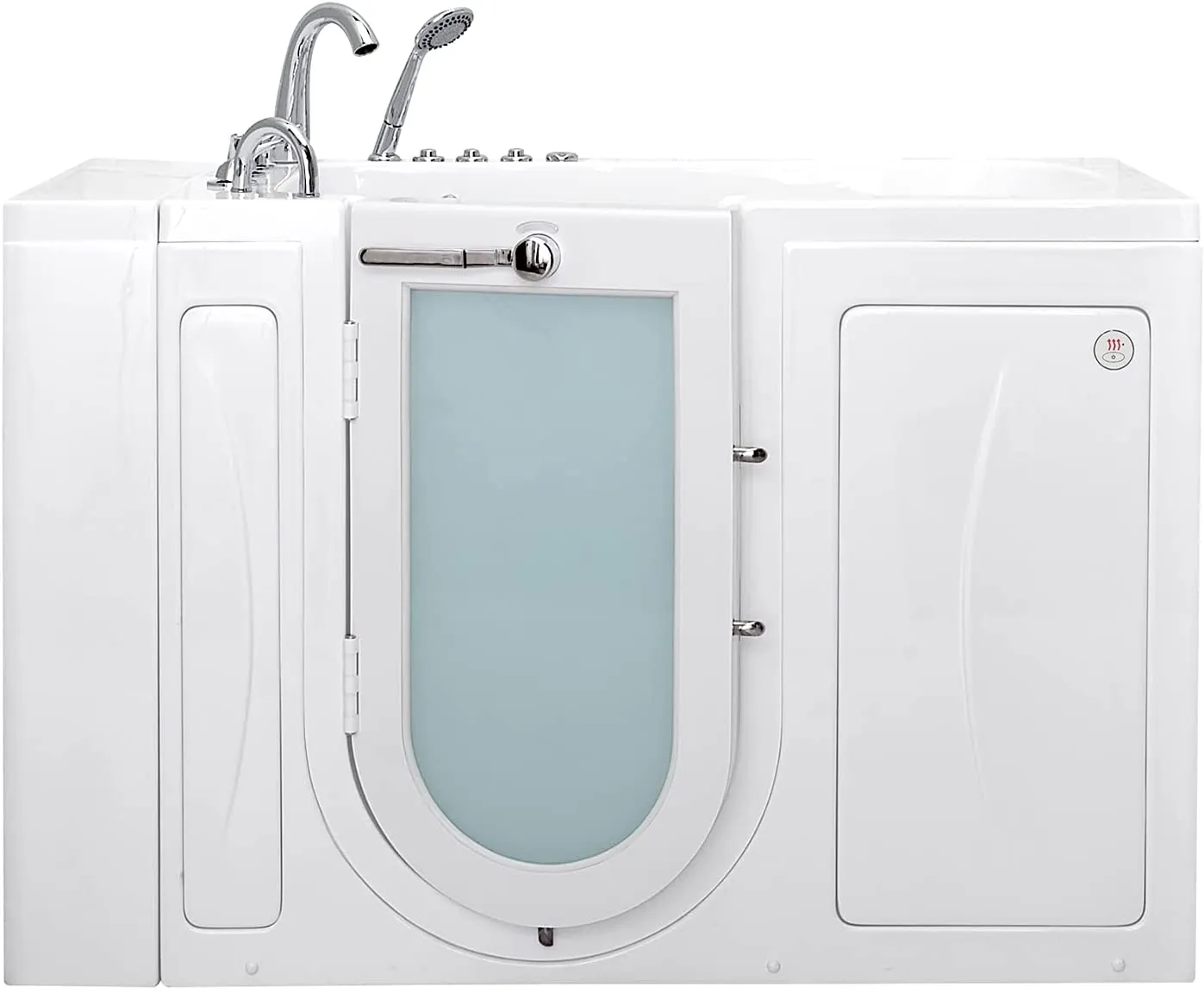

PC and tempered glass outward swing door with door seal and anti-leak 3-latch system
Stainless steel frame with adjustable leveling legs
Limited lifetime warranty on acrylic walk in tub shell, frame, and door 5-year parts warranty, excluding faucet set, 10-year limited warranty on faucet set, refer to Huntington brass warranty
Jetted in Chicago, assembled in the United States, CA

Dimensions:

Basin Length (in.): 19.50
Basin Width (in.): 21.50
Overall Height (in.): 42.00
Overall Length (in.): 52
Overall Width (in.): 30
Soaking Depth (in.): 36.00

Details:

Bath Therapy Type: Combination
Color Family: White
Color/Finish: White
Control Type: Digital
Door Handing: Outswing
Door Swing: Left Hand
Drain Location: Left
Exterior bath shape: Rectangular
Faucet mount: Tub Mounted
Included: Drain, Handshower, Heater, Lighting, Tub filler
Material: Acrylic
Maximum Number of Occupants: 1
Maximum Number of Occupants: 1 Person
Number of jet settings: 1
Number of Jets: 31
Product Weight (lb.): 220 lb
Returnable: 90-Day
Tub/Shower Features: Adjustable Jet Direction, Chromotherapy, Grab Bar, Predrilled Drain Holes, Predrilled Faucet Holes, Self Leveling Base, Slip-Resistant Tub
Voltage (volts): 120
Water capacity (gallons): 90
Wattage (watts): 2206

Warranty / Certifications

Certifications and Listings: UL Certified
Manufacturer Warranty: Limited Lifetime warranty on acrylic walk in tub shell, frame, and door. 5 Year parts warranty, excluding faucet set, 10 Year Limited Warranty on Faucet Set, refer to Huntington Brass Warranty

Additional Information

Shape	Rectangular
Installation Type	Freestanding
Tub Width (In.)	30
Tub Length (In.)	52
Tub Height (In.)	42
Color	White
Shipout Time	1 - 3 days
Brand
SKU	OA3052DH-HB-L-D
