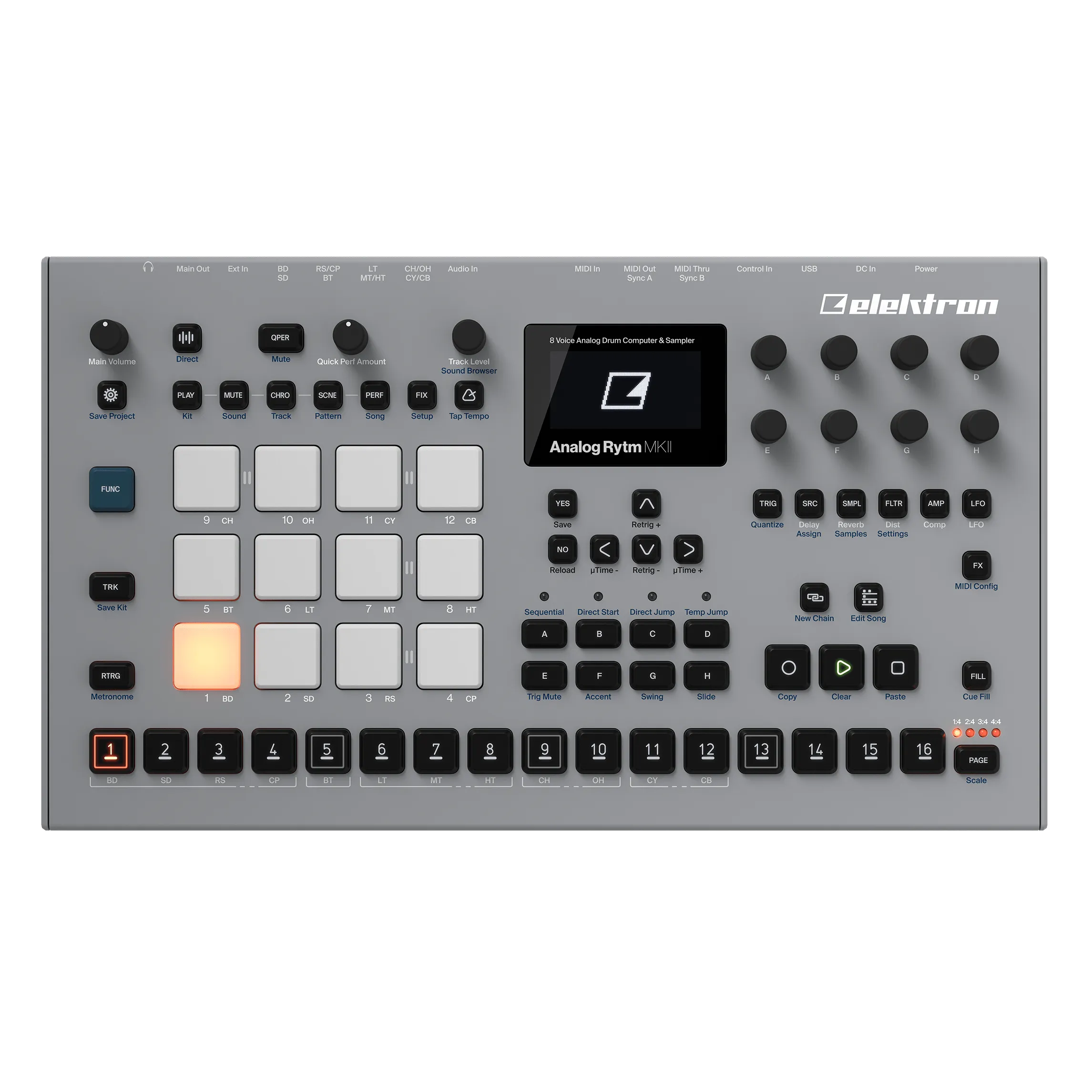

Elektron’s Analog Rytm MKII is an 8-voice drum machine that combines analog percussion synthesis with built in effects, onboard sampling and sample playback. The MKII version boasts a new build which adds a crisp OLED display for optimal readibility and precise higher resolution encoders.
It's newest Operating System adds MIDI OUT sequencing, individual track lengths, parameter randomization, multiple Quick Performance controls and graphical improvements.
SPECIFICATIONS

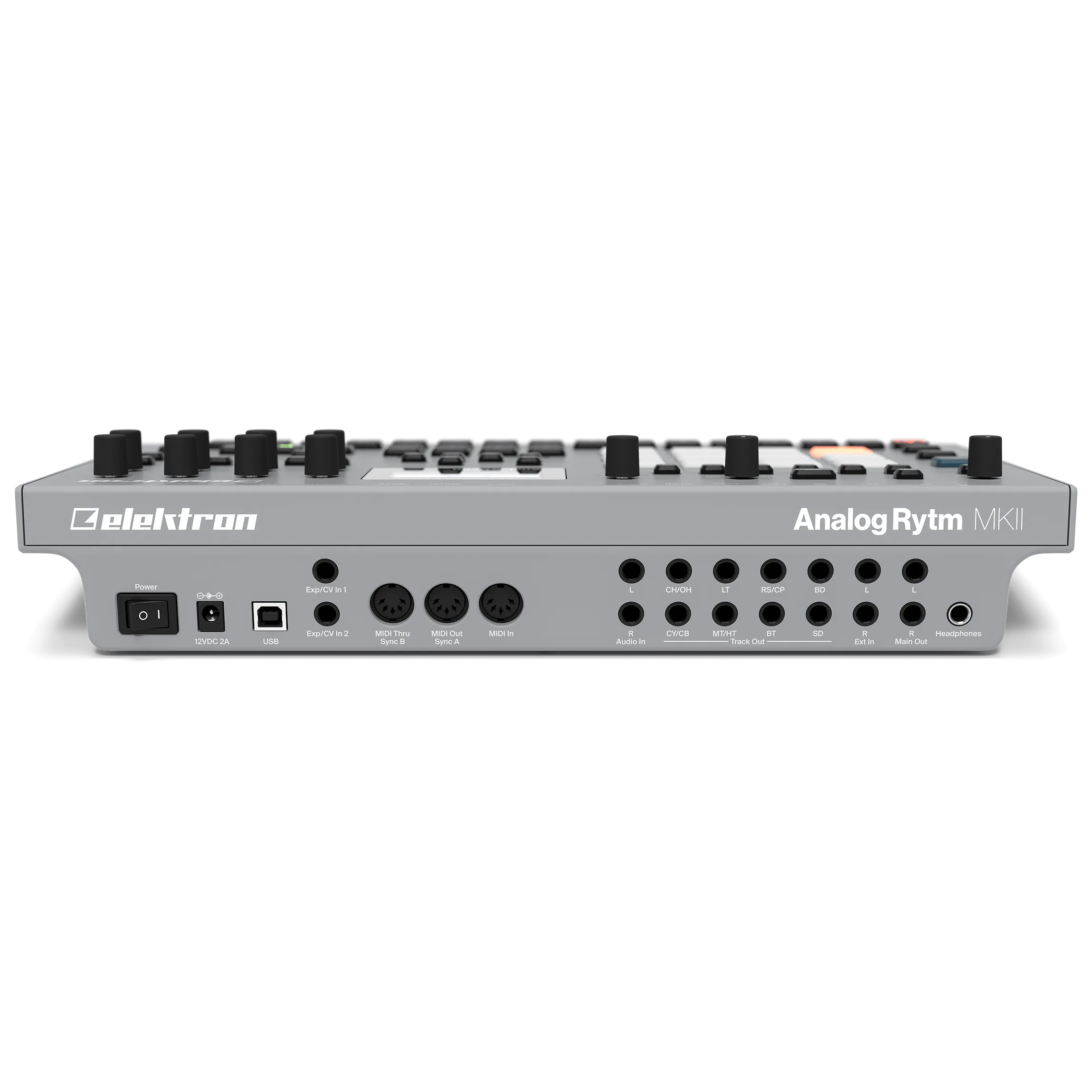

1 × ¼″ headphones output
2 × ¼″ impedance balanced main output
8 × ¼″ impedance balanced mono voice output
2 × ¼″ balanced sampling input
2 × ¼″ external input
2 × ¼″ expression/CV input
1 × USB 2.0 High Speed port
MIDI IN/OUT/THRU ports with DIN Sync Out
Ultra crisp 128 × 64 OLED screen
Precise hi-res encoders
Durable back-lit buttons
W385 × D225 × H82 mm (15.2 × 8.85 × 3.3″) including knobs, power switch and rubber feet
Weight approx. 2.5 kg (5.5 lbs)
Fully compatible with Analog Rytm MKI projects/data
2 × ¼″ impedance balanced main output
8 × ¼″ impedance balanced mono voice output
2 × ¼″ balanced sampling input
2 × ¼″ external input
2 × ¼″ expression/CV input
1 × USB 2.0 High Speed port
MIDI IN/OUT/THRU ports with DIN Sync Out
Ultra crisp 128 × 64 OLED screen
Precise hi-res encoders
Durable back-lit buttons
W385 × D225 × H82 mm (15.2 × 8.85 × 3.3″) including knobs, power switch and rubber feet
Weight approx. 2.5 kg (5.5 lbs)
Fully compatible with Analog Rytm MKI projects/data
INCLUDED IN THE BOX
Power Supply PSU-3b
Elektron USB cable
Elektron USB cable
