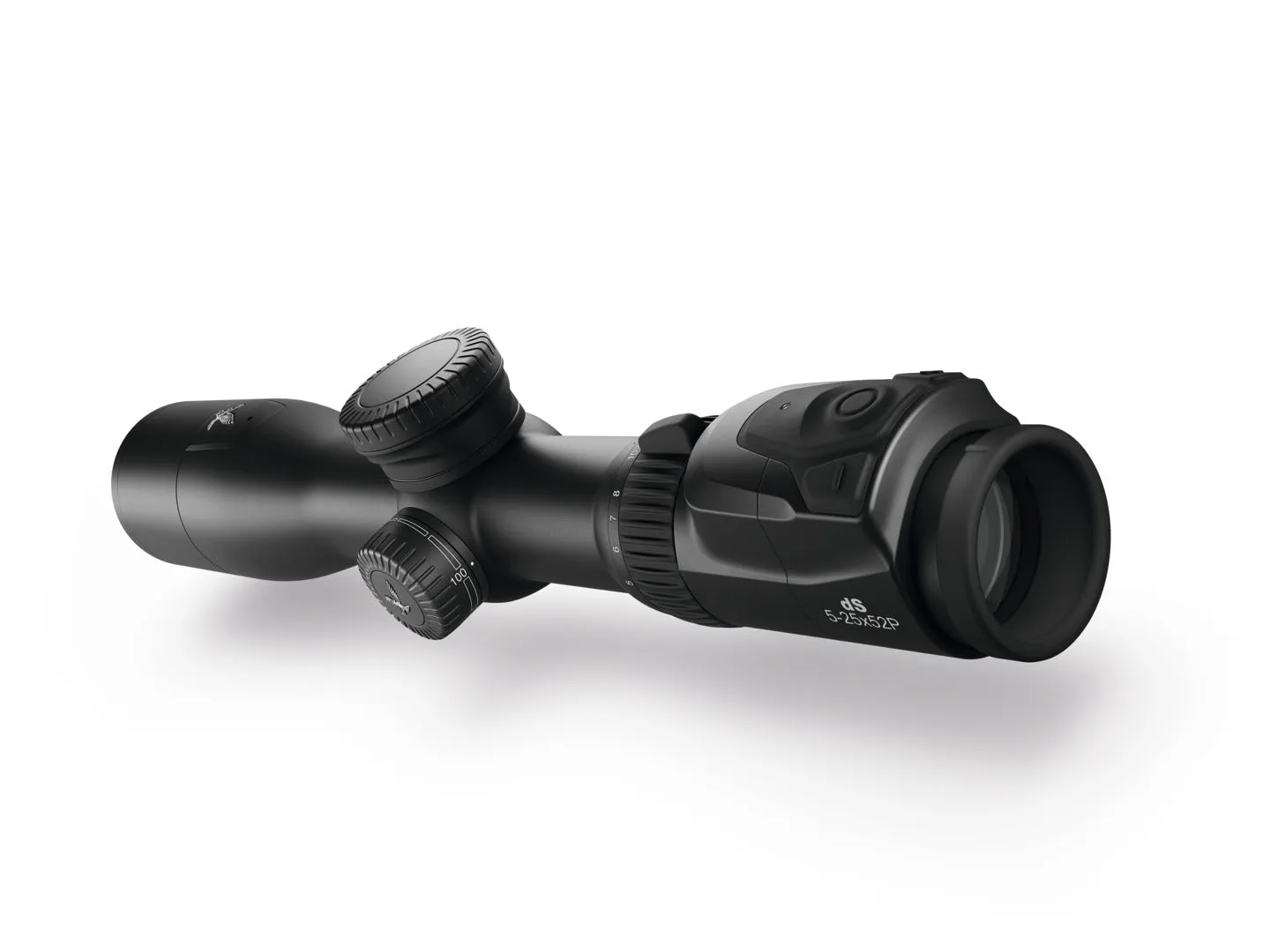

The dS automatically displays the correct aiming point and all the data you need in high resolution and in real time. Hunters no longer need to adjust the rifle scope manually, making it much easier to tackle long-range shots. The aiming point is calculated based on precise distance measurement, the angle of fire, the magnification selected, air pressure, temperature, and the ballistic data for your personal firearm/ammunition combination. The dS Configurator App is used to enter the data on your firearm/ammunition combination and to configure the display.
The ballistic curve and your individual display configurations are then transferred directly to the dS quickly and easily via Bluetooth.
Many hunters love to experience hunting with all their senses, being present in the moment. And at the same time, they want to feel at ease in taking the right decision and placing a precise shot, when the time is right. Responsible hunting is the top priority. For this way of hunting, the dS rifle scope offers the best possible support. And this is even more true for its successor - the new dS Gen. II.
BALLISTICS
Especially when shooting at longer ranges, a wide array of different factors come into play. Ballistics are a science of their own. However, on these special occasions, when you get lucky to spot just the right target, you want to focus on enjoying the hunting moment. Thinking about distance, ballistics, air pressure or angle corrections would just distract you.
FOCUS ON WHAT MATTERS

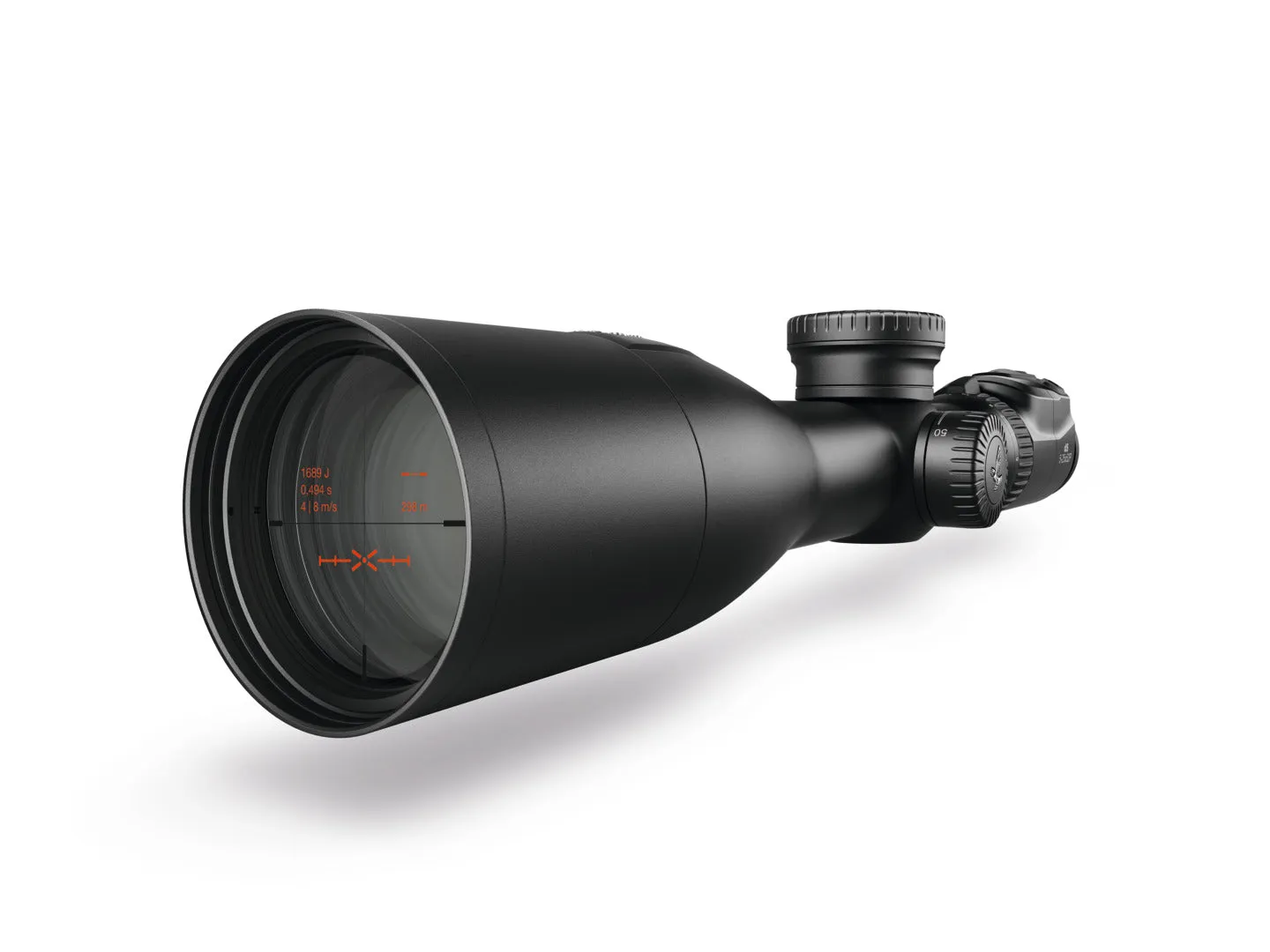

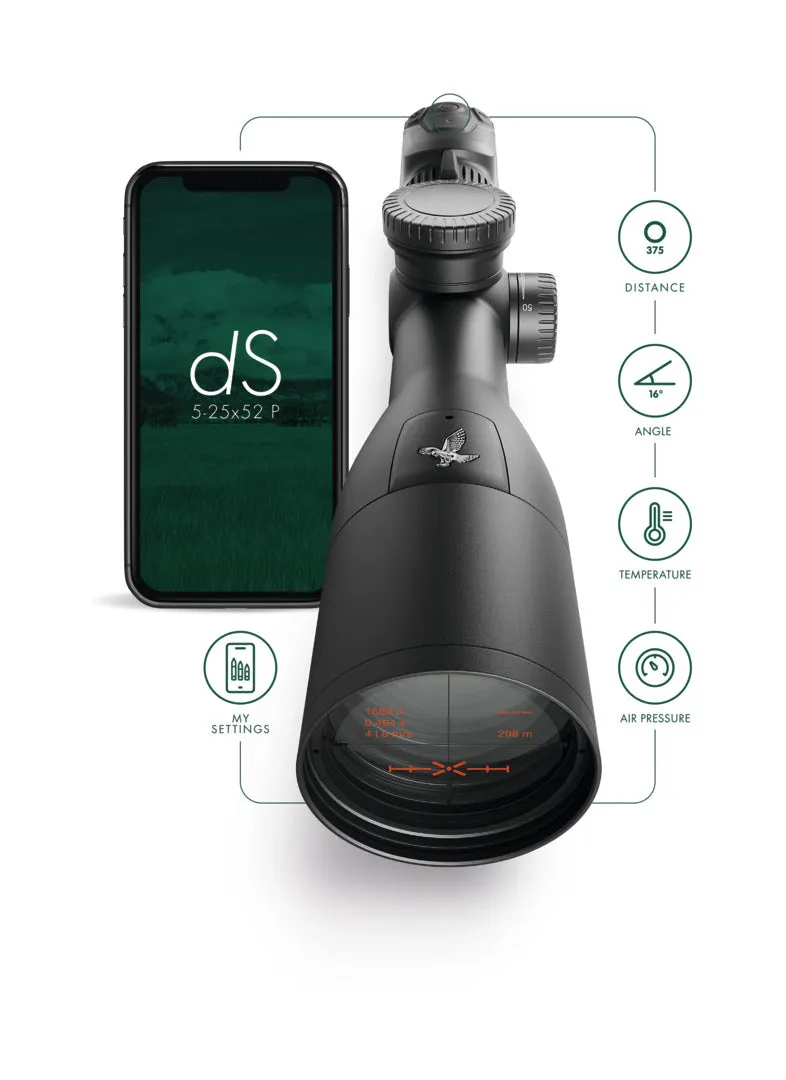

Wouldn’t it be nice to just focus on the things happening in front of you? The new dS supports you by taking care of the technical details. At the push of a button, the dS Gen. II shows you the correct aiming point – taking ballistics, distance, angle, temperature, air pressure and other factors into account.

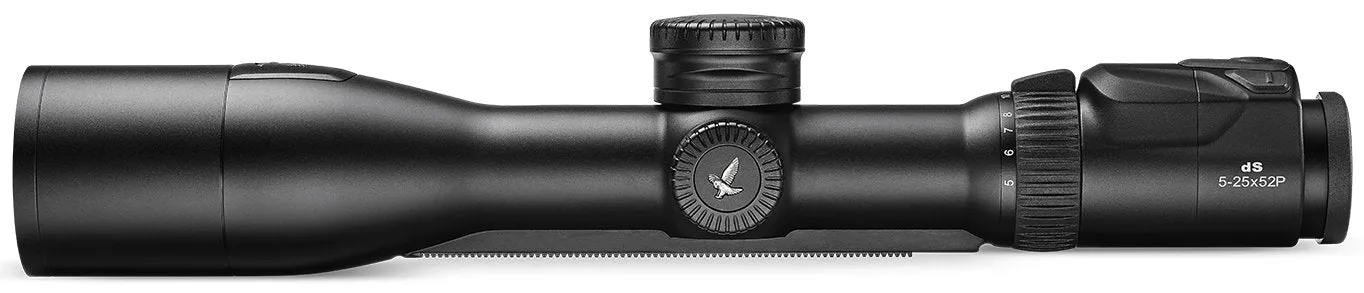

SPECIFICATIONS
Mount-type: ring-mount

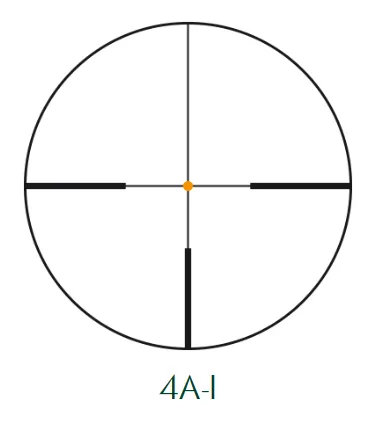

Reticle: 4A-I
Magnification: 5-25
Effective objective lens diameter: 48-52 mm
Exit pupil diameter: 9.6-2.1 mm
Exit pupil distance: 95 mm
Field of view at 100 yds: 21.9-4.5 ft/100 yds
Field of view degrees: 4.2-0.84 °
Field of view apparent: 21.5 °
Diopter adjustment: -3 to 2 dpt
Light transmission: 83 %
Twilight factor acc. to ISO 14132-1: 14.1-36.0
Parallax correction: 55-∞ yd
MEASUREMENT
Impact point correction per click: 0.25 / 7
Max. elevation / windage adjustment range: 43/25 / 1.2/0.7
Measuring range: 33-1500 yd
Measuring precision: 1 yd
Measuring angle: 60 °
Max aiming point correction: 1120 yd
SIZE & WEIGHT
Length: 15.87 in
Weight: 38.4 oz/39.3 oz
Central tube diameter: 40 mm
ENVIRONMENT & CONDITIONS
Functional temperature: 14 to 131 °F
Storage temperature: -22 to 158 °F
Submersion tightness: 13 ft / 4 m water depth (inert gas filling)
DIGITAL
Objective filter thread: M63x0.75
Operating time: 500x
Display: LCoS monochrome
Add-on program: dS Configurator
Operating system: iOS from Version 8.1, Android from Version 4.4 KitKat
Illumination: 64 Brightness levels
SUPPLIED WITH:
- Transparent protective cover
- Microfiber cloth
- Adjusting tool large
- Torx wrench TX6 & adjusting tool in adjustment turret
- Battery (CR123)
- Sighting in form
