Name: DMB-8900N-LTE Ultra 4G/LTE Live Streaming Encoder (SDI in/loopout 3.5mm)
SKU: 147788

OVERVIEW

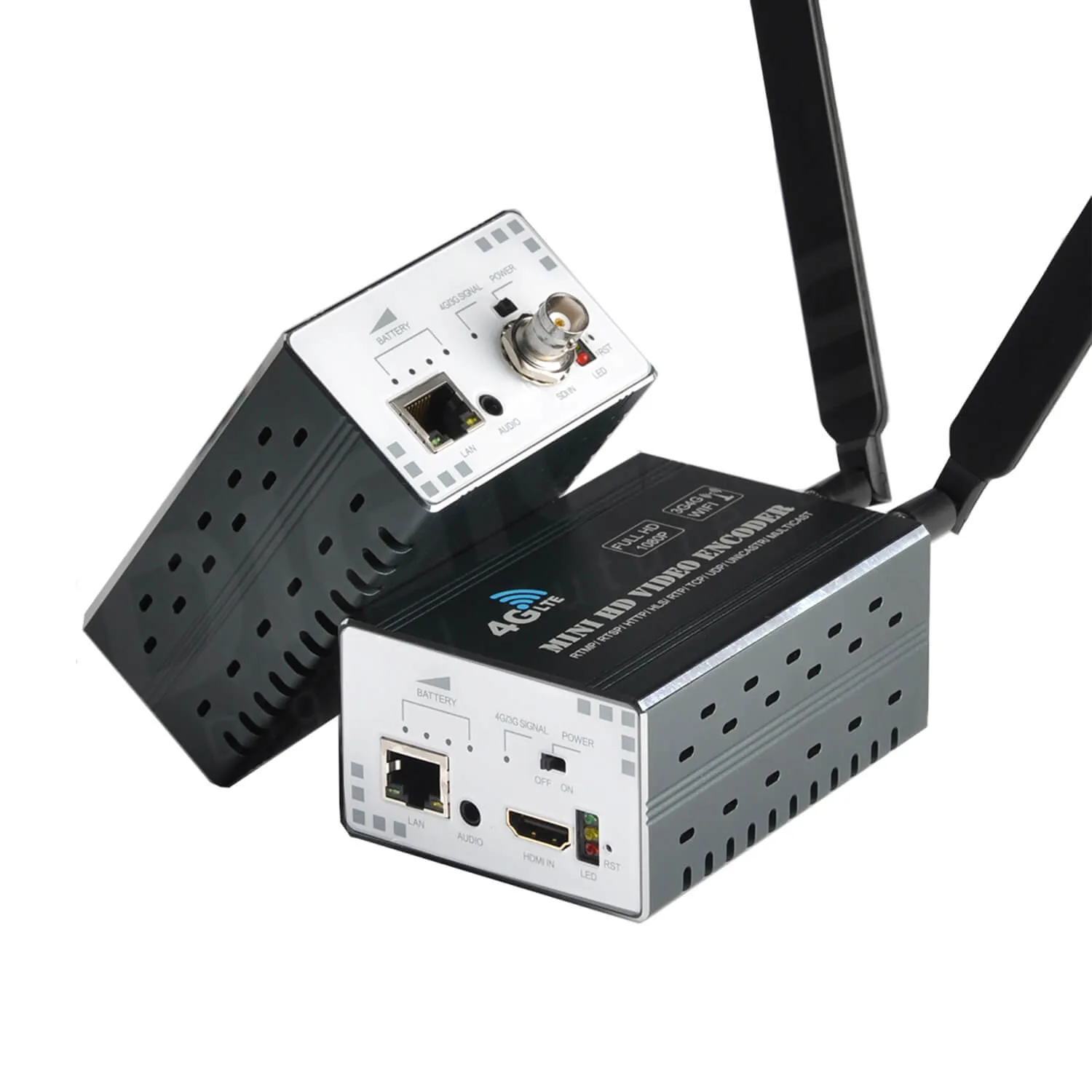

DMB-8900N 4G LTE HD Live Streaming Encoder features high performance, low latency and low bit rates for Live Streaming, IPTV & OTT systems, realized Video & Audio real-time transmission via 4G/3G internet, and adopts state-of-the-art compression technology of H.265/HEVC, which realizes its resolution to be up to full HD 1080P. With powerful video pre-compression and efficient adaptive video compression algorithm, it is able to provide clear-delicate, high quality video even at lower bit rate which can efficiently save the cost of bandwidth.

DMB-8900N accepts 1*HDMI or 1*SDI IN/LOOPOUT as option then outputs 4*streams H.265 format and audio MP3/AAC format with multi-protocol, multi-resolution, multi-bitrate which can be freely adjusted according to your needs.
Besides, it’s simple to be set up by switching between WIFI and 4G LTE mode, users can start Live Streaming Anytime, Anywhere, Anyplace!

DMB-8900N provides fully functional second development package, which can be applied to education, health care, IPTV, conference, remote education, news interview, court, public security, banking, transportation and other industry application.

FEATURES

◉4G/3G LTE/WIFI/Internet(Switchable)
◉low power consumption design & running time up to 5-6 hours by full built-in Lithium battery.
◉Support up to 4 TS over IP stream out.
◉Providing a standard hot shoe base for fixation on a camcorder
◉Workable with newest architecture of H.265
◉Display on multi-screen originated from one computer is available
◉Up to Full HD 1080P output.
◉Workable under HLS,RTSP/RTP/RTMP, HTTP, UDP unicast and multicast(Username and password verification allowed under RTMP)
◉Support HDCP protocol
◉Support ONVIF Network Video Protocol
◉Configurable of multi-screen ,multi-protocol, multi-resolution and multi-stream and low bit-rate by H.265 with high quality image
◉Any iOS browsers(iphone, ipad, MacBook etc) are able to have streams from IPTV Streaming Encoder in Anytime, Anywhere by HLS protocol without install any software players.
◉Any terminal devices/decoders are able to have streams from IPTV Streaming Encoder directly by RTMP protocol with software players(such as VLC).
◉Encoding level: Level 1/2/3/4/5(the higher level, the higher stream fluctuation rate)
◉Encoding profile:H.265/HEVC BASELINE PROFILE / MAIN PROFILE/ HIGH PROFILE
◉Audio format: MP3 , AAC ;sampling rate:32 KHz /44.1 KHz/48 KHz etc.
◉Audio encoded bit-rate: 48Kbps /64Kbps /96Kbps /128Kbps/160Kbps/192Kbps /256Kbps
◉Bit-rate mode CBR/VBR,16Kbps~12Mbps
◉Video packing: FFMPEG/ VLC
◉Transport method: TCP,UDP,1000M (RJ45 duplex interface)
◉Web-based management easy for configuration.
◉Scrollable English OSD ,picture overlapping and logos are realizable while letters and symbols can be displayed anywhere in the screen
◉Adjustable coordinate: 1920x1080
◉Adjustable font size:8~72
◉Allowing DHCP to automatically obtain IP, offering one key recovery & upgrading and remote maintenance
◉Image setting: Contrast, brightness, hue, saturation, noise inspection, sharpness, wave filtering
◉Audio: embedded or line in; left & right; built-in audio gain for independent volume adjustability
◉Able to encode with absence of video signal
◉The setting comes into effect once finished while reboot is unnecessary
◉Default configuration can be done by one key recovery
◉WINDOWS XP/VISTA/SERVER2003/SERVER2008/WIN7 32 and WIN7 64, LINUX
