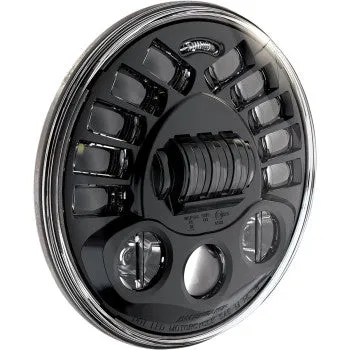

Features
- Improved to feature JW Speaker's Adaptive technology providing maximum ditch-to-ditch light output where you need it most
- Adaptive technology enables the light to sense when the bike is leaning so it can redirect the beam to illuminate dark corners while also providing a superior beam pattern 1,500 feet down the road
- The low-profile housing offers a plug and play installation
- 1150 effective lumens (high beam), 850 effective lumens (low beam)
- Low beam = 1.9 amps @ 13.5 volts
- High beam = 2.9 amps @ 13.5 volts
- 5000k color temperature
- Plug and play installation
- SAE and DOT compliant
Part Notes
- Fits most Softail® models with 5.75" OEM headlamp buckets
Specs
| PRODUCT NAME | HEADLAMP |
| TYPE | ADAPTIVE |
| MODEL | PROBEAM® |
| FOR MAKE | HARLEY DAVIDSON |
| SHAPE | ROUND |
| HOUSING/STEM COLOR | BLACK |
| LENS COLOR | CLEAR |
| LED/LIGHT COLOR | WHITE |
| LENS MATERIAL | POLYCARBONATE |
| HOUSING MATERIAL | DIE-CAST ALUMINUM |
| OVERALL DIAMETER | 146 MM (5-3/4") / 146 MM / 5-3/4" |
| BULB TYPE | LED |
| FITS BULB SOCKET | H4 |
| FILAMENT/FUNCTION | DUAL |
| UNITS | EACH |
| RIDING STYLE | STREET |
Package info
| WEIGHT | 2.15 LBS |
| HEIGHT | 5.8 |
| LENGTH | 8.2 |
| WIDTH | 7 |
Fitments
| 2021-2022 | Harley-Davidson | Sportster S | - | - |
| 2018-2021 | Harley-Davidson | Iron 1200 XLNS | - | - |
| 2018-2019 | Harley-Davidson | Forty-Eight Special XLXS | - | - |
| 2017-2020 | Harley-Davidson | Street Rod 750 A XG | - | - |
| 2016-2020 | Harley-Davidson | 1200 Roadster XLCX | - | - |
| 2016-2017 | Harley-Davidson | CVO Pro Street Breakout FXSE | - | - |
| 2016-2017 | Harley-Davidson | Low Rider S FXDLS | - | - |
| 2016-2017 | Harley-Davidson | Breakout FXSB | - | - |
| 2015-2020 | Harley-Davidson | Street 750 XG | - | - |
| 2015-2020 | Harley-Davidson | Street 500 XG | - | - |
| 2014-2017 | Harley-Davidson | SuperLow 1200 XLT | - | - |
| 2013-2014 | Harley-Davidson | CVO Breakout FXSBSE | - | - |
| 2012-2016 | Harley-Davidson | Seventy-Two XLV | - | - |
| 2011-2019 | Harley-Davidson | 883 SuperLow XLL | - | - |
| 2010-2022 | Harley-Davidson | Forty-Eight XLX | - | - |
| 2010 | Harley-Davidson | CVO Fat Bob FXDFSE2 | - | - |
| 2009-2022 | Harley-Davidson | Iron 883 XLN | - | - |
| 2009-2012 | Harley-Davidson | Sportster 1200 X XR | - | - |
| 2009-2012 | Harley-Davidson | Sportster 1200 XR | - | - |
| 2009 | Harley-Davidson | CVO Fat Bob FXDFSE | - | - |
| 2008-2017 | Harley-Davidson | Fat Bob FXDF | - | - |
| 2008-2011 | Harley-Davidson | Softail Cross Bones FLSTSB | - | - |
| 2008 | Harley-Davidson | Screamin' Eagle Dyna FXDSE2 | - | - |
| 2007-2012 | Harley-Davidson | 1200 Nightster XLN | - | - |
| 2007-2010 | Harley-Davidson | Softail Custom EFI FXSTC | - | - |
| 2007-2009 | Harley-Davidson | 883 EFI XL | - | - |
| 2007 | Harley-Davidson | Sportster 1200 XL 50 | - | - |
| 2007 | Harley-Davidson | Screamin' Eagle Dyna FXDSE | - | - |
| 2006-2017 | Harley-Davidson | Street Bob FXDB | - | - |
| 2006-2011 | Harley-Davidson | 1200 Low EFI XLL | - | - |
| 2006-2010 | Harley-Davidson | 883 Low EFI XLL | - | - |
| 2006-2008 | Harley-Davidson | 1200 Roadster EFI XLR | - | - |
| 2006 | Harley-Davidson | 1200 Low XLL | - | - |
| 2006 | Harley-Davidson | Super Glide FXD35 | - | - |
| 2005-2014 | Harley-Davidson | Super Glide Custom EFI FXDCI | - | - |
| 2005-2006 | Harley-Davidson | Softail Springer Classic FLSTSC | - | - |
| 2005-2006 | Harley-Davidson | 883 Low XLL | - | - |
| 2005 | Harley-Davidson | Super Glide Custom FXDC | - | - |
| 2004-2010 | Harley-Davidson | Super Glide EFI FXDI | - | - |
| 2004-2009, 2014-2017 | Harley-Davidson | Low Rider EFI FXDL | - | - |
| 2004-2006 | Harley-Davidson | 883 XL | - | - |
| 2004-2006 | Harley-Davidson | 1200 Roadster XLR | - | - |
| 2004-2005 | Harley-Davidson | Super Glide Sport EFI FXDXI | - | - |
| 2004 | Harley-Davidson | Screamin' Eagle Deuce FXSTDSE2 | - | - |
| 2003 | Harley-Davidson | Screamin' Eagle Deuce FXSTDSE | - | - |
| 2002-2019 | Harley-Davidson | 1200 Custom EFI XLC | - | - |
| 2002-2003, 2011-2017 | Harley-Davidson | 1200 XLCP | - | - |
| 2002-2003, 2005-2007 | Harley-Davidson | 883 Roadster EFI XLR | - | - |
| 2002-2003, 2005-2007 | Harley-Davidson | 883 Roadster XLR | - | - |
| 2002 | Harley-Davidson | Wide Glide FXDWG3 | - | - |
| 2001-2003 | Harley-Davidson | Super Glide T-Sport FXDXT | - | - |
| 2001 | Harley-Davidson | Wide Glide FXDWG2 | - | - |
| 2000-2008, 2010-2017 | Harley-Davidson | Wide Glide EFI FXDWGI | - | - |
| 2000-2006 | Harley-Davidson | Softail Deuce FXSTD | - | - |
| 1999-2009 | Harley-Davidson | 883 Custom EFI XLC | - | - |
| 1999-2005 | Harley-Davidson | Super Glide Sport FXDX | - | - |
| 1998-2006 | Harley-Davidson | 883 Custom XLC | - | - |
| 1997-2003 | Harley-Davidson | Softail Heritage Springer FLSTS | - | - |
| 1996-2006 | Harley-Davidson | 1200 Custom XLC | - | - |
| 1996-2003 | Harley-Davidson | 1200 Sport XLS | - | - |
| 1995-2006 | Harley-Davidson | Super Glide FXD | - | - |
| 1995-2000 | Harley-Davidson | Dyna Convertible FXDS-CONV | - | - |
| 1993-2006 | Harley-Davidson | Low Rider FXDL | - | - |
| 1993-2006 | Harley-Davidson | Wide Glide FXDWG | - | - |
| 1992 | Harley-Davidson | Dyna Glide Custom FXDC | - | - |
| 1992 | Harley-Davidson | Dyna Daytona FXDB | - | - |
| 1991 | Harley-Davidson | Dyna Sturgis FXDB | - | - |
| 1988-2006 | Harley-Davidson | Softail Springer FXSTS | - | - |
| 1988-2003 | Harley-Davidson | Sportster 1200 XLH | - | - |
| 1987-2003 | Harley-Davidson | 883 Hugger XLH | - | - |
| 1986-2003 | Harley-Davidson | Sportster 883 XLH | - | - |
| 1986-1999 | Harley-Davidson | Softail Custom FXSTC | - | - |
| 1986-1995 | Harley-Davidson | 883 Deluxe XLH | - | - |
| 1986-1988 | Harley-Davidson | Sportster 1100 XLH | - | - |
| 1983-1985 | Harley-Davidson | Sportster 1000 XR | - | - |
| 1983-1985 | Harley-Davidson | Sportster 1000 XLX | - | - |
| 1979-1985 | Harley-Davidson | Roadster 1000 XLS | - | - |
| 1977-1979 | Harley-Davidson | Café Racer XLCR | - | - |
| 1977-1978 | Harley-Davidson | Sportster 1000 XLT | - | - |
| 1972-1985 | Harley-Davidson | Sportster 1000 XLH | - | - |
| 1972-1985 | Harley-Davidson | Sportster 750 XR | - | - |
| 1972-1979 | Harley-Davidson | Sportster 1000 XLCH | - | - |
| 1957-1971 | Harley-Davidson | Sportster 900 XL | - | - |
| 1957-1971 | Harley-Davidson | Sportster 900 XLCH | - | - |
| 1957-1971 | Harley-Davidson | Sportster 900 XLH | - | - |
