● Accuracy: ± 0.2% of Full Scale
● Ergonomic, durable, heavy-duty metal construction
● Automatic reversible display
● Selectable Units: N, kgf, lbf, ozf and/or gf
● Touch pad for minimized disturbance
● Variety of alarm output function
● Data upload to PC
● Sensor automatic identification
Specification:
● Capacity/Resolution N: 1000/0.1
● Capacity/Resolution kgf: 100/0.01
● Capacity/Resolution lbf: 220/0.05
● Hysteresis: 0.0003
● Sampling Rate:1000 Hz
● Overload:1.5
● Display:160 x 128 dot matrix LCD with LED backlight
● Housing: Aluminum (meter)
● Data Storage: 1000 data points

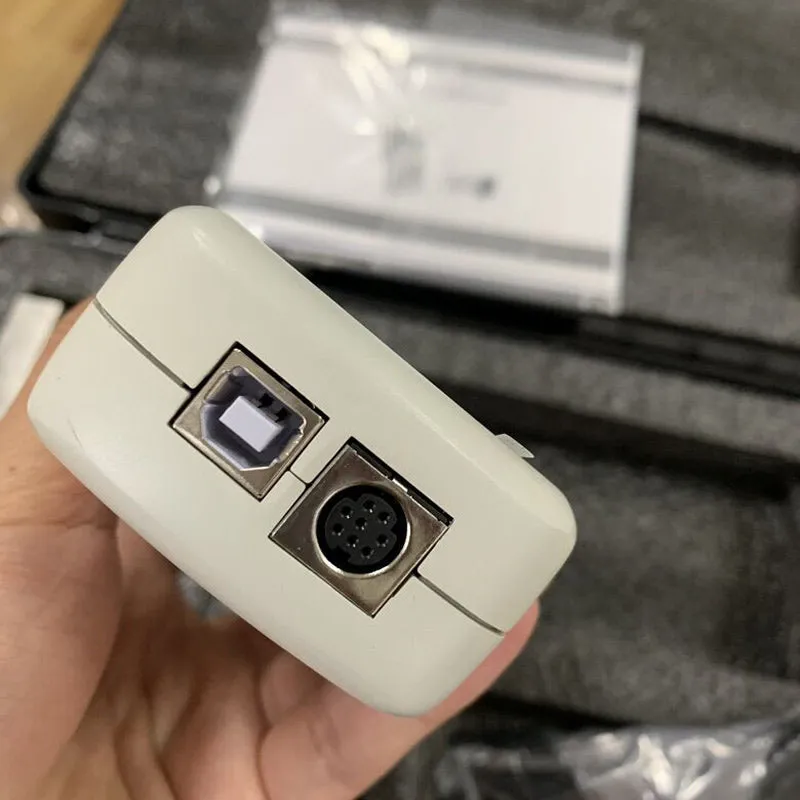

● Data Output: USB, RS-232, high and low NPN
● Operation ModeTrack, Peak, First Peak, Auto Peak
● Max Operating Temperature (° F)104
● Min Operating Temperature (° F)14
● Max Operating RH (%)95
● Min Operating RH (%)5
● Height (in)5.7
● Width (in)2.9
● Depth (in)1.4
● Height (cm)14.5
● Width (cm)7.3
● Depth (cm)3.6
● Battery life approximately: 16 hours, continuous
● Battery: Rechargeable NiMH
● Power (VAC)110 to 240

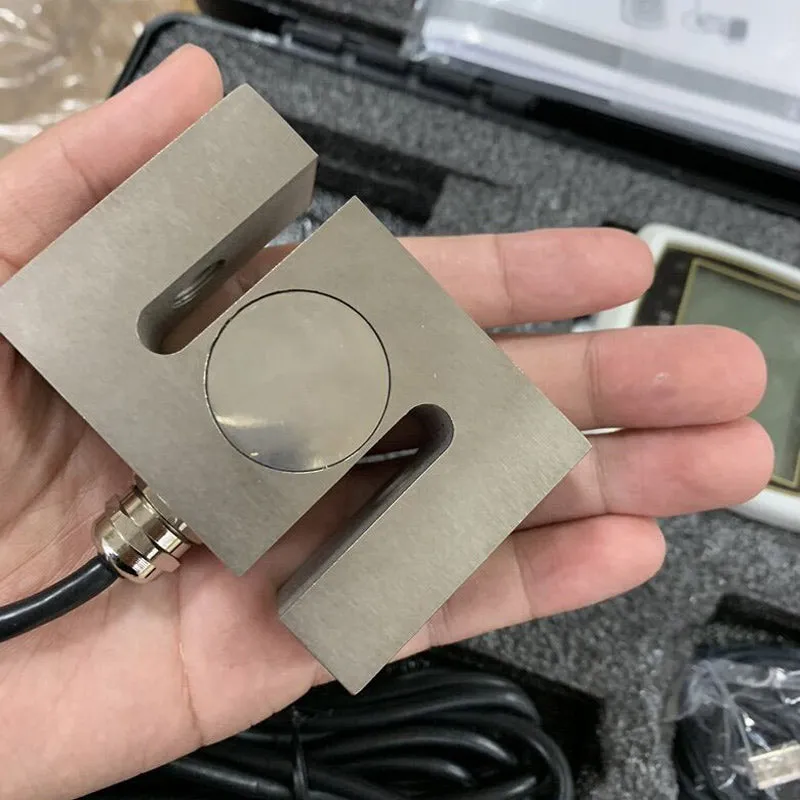

● Load Cell: S Beam

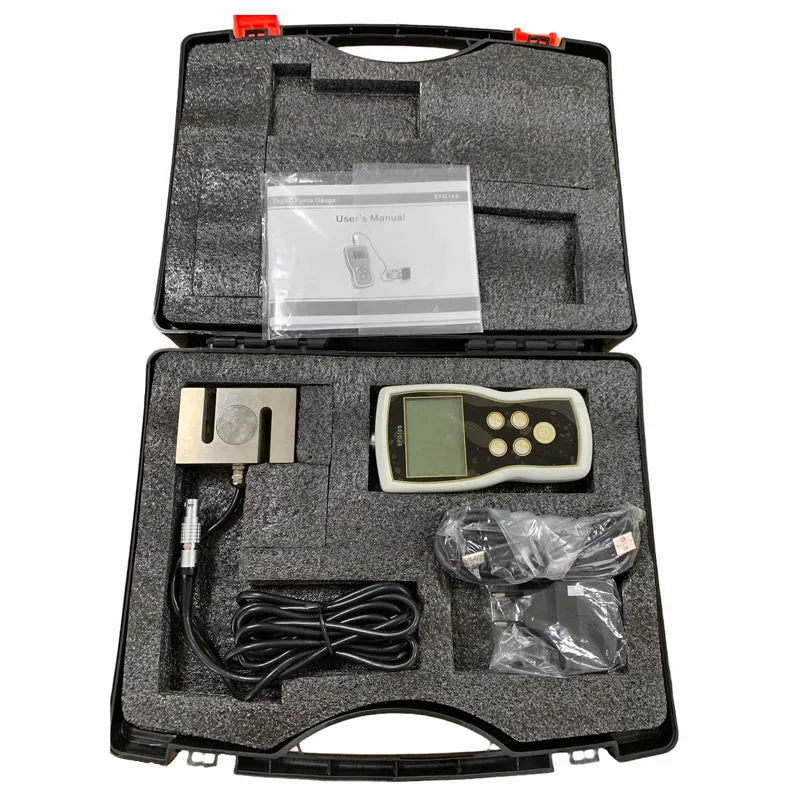

Packing list:
1x EFG-10S1K Digital Force Gauge
1x Load Cell
1x Power adapter
